Instrument Cluster Bulbs

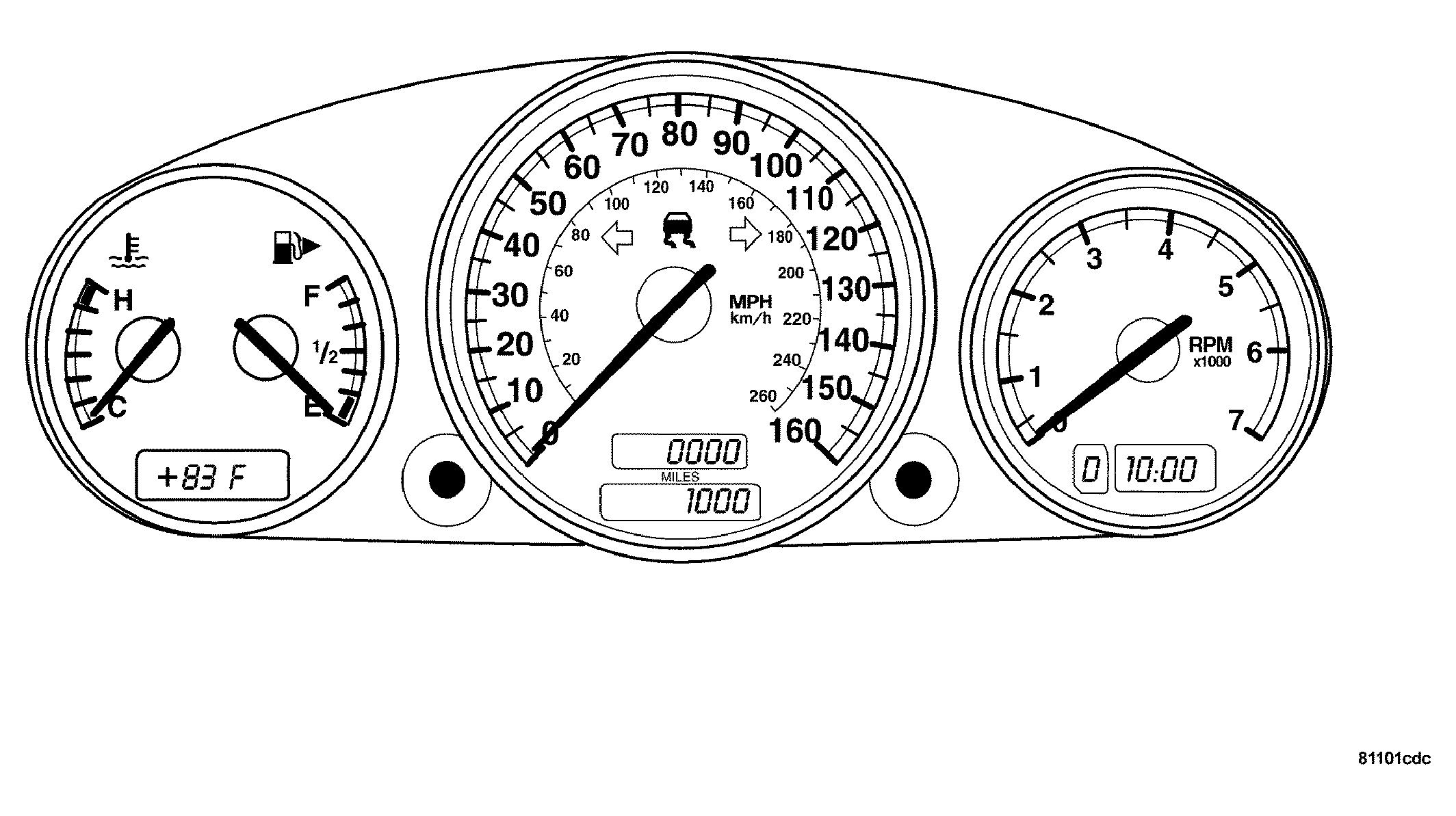

Fig 1: Identifying Instrument Cluster

Courtesy of CHRYSLER LLC

If the individual indicator lamps/malfunction indicator lamps do not illuminate or extinguish during operation, the systems concerned are to be checked or the fluid levels corrected.

1. Move the ignition switch to the "RUN" position, all of the indicator lamps and malfunction indicator lamps illuminate.
2. Start the engine, all of the indicator lamps and malfunction indicator lamps extinguish at an engine speed of > 480 RPM if the systems are functioning correctly.
3. The following indicator lamps and malfunction indicator lamps extinguish independently of the engine running: SRS malfunction indicator lamp after approximately 4 seconds and the seat belt indicator lamp after approximately 6 seconds.
