Specifications - Opening Dimensions

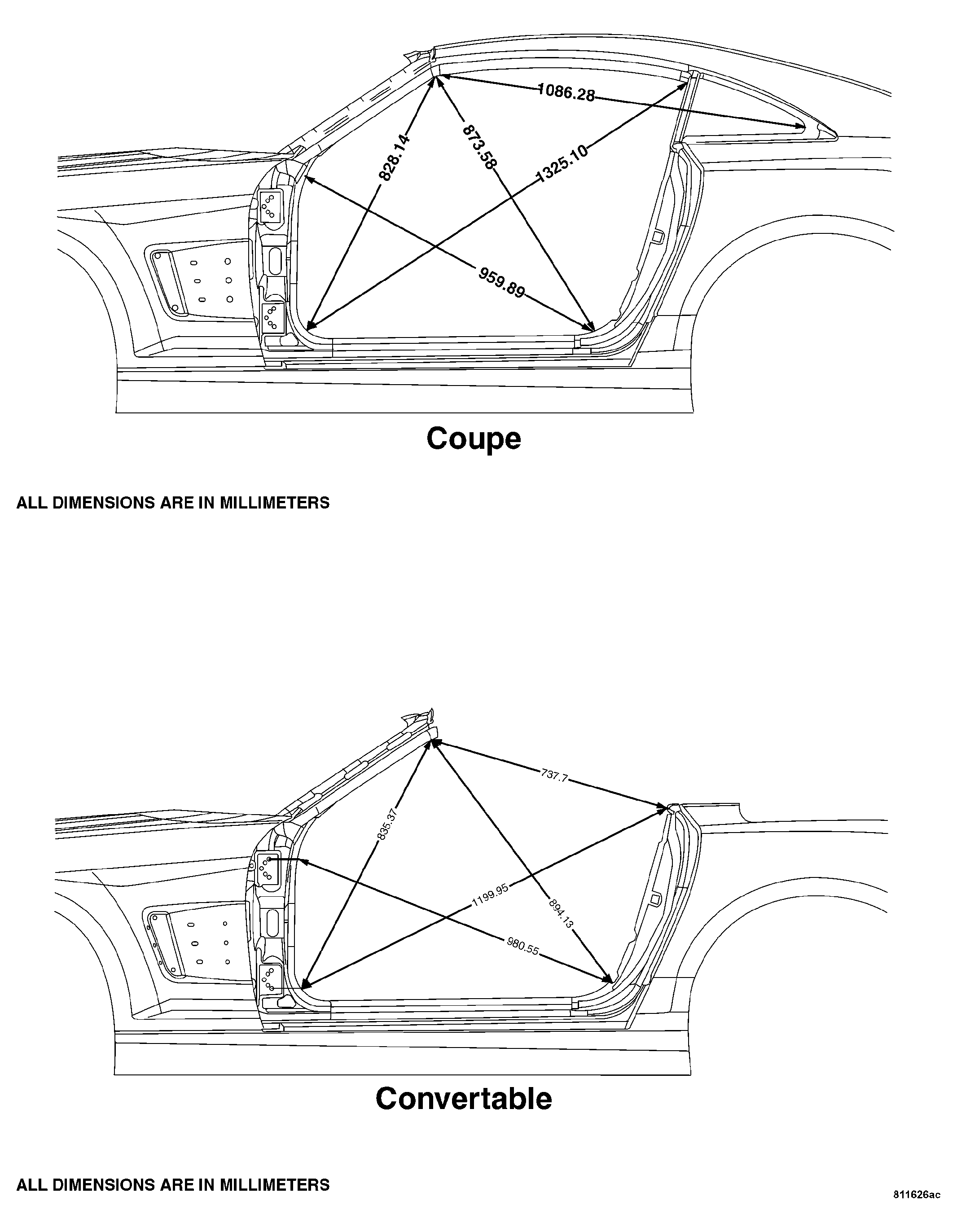

Fig 1: Door Opening Specifications
GC0033167Courtesy of CHRYSLER LLC

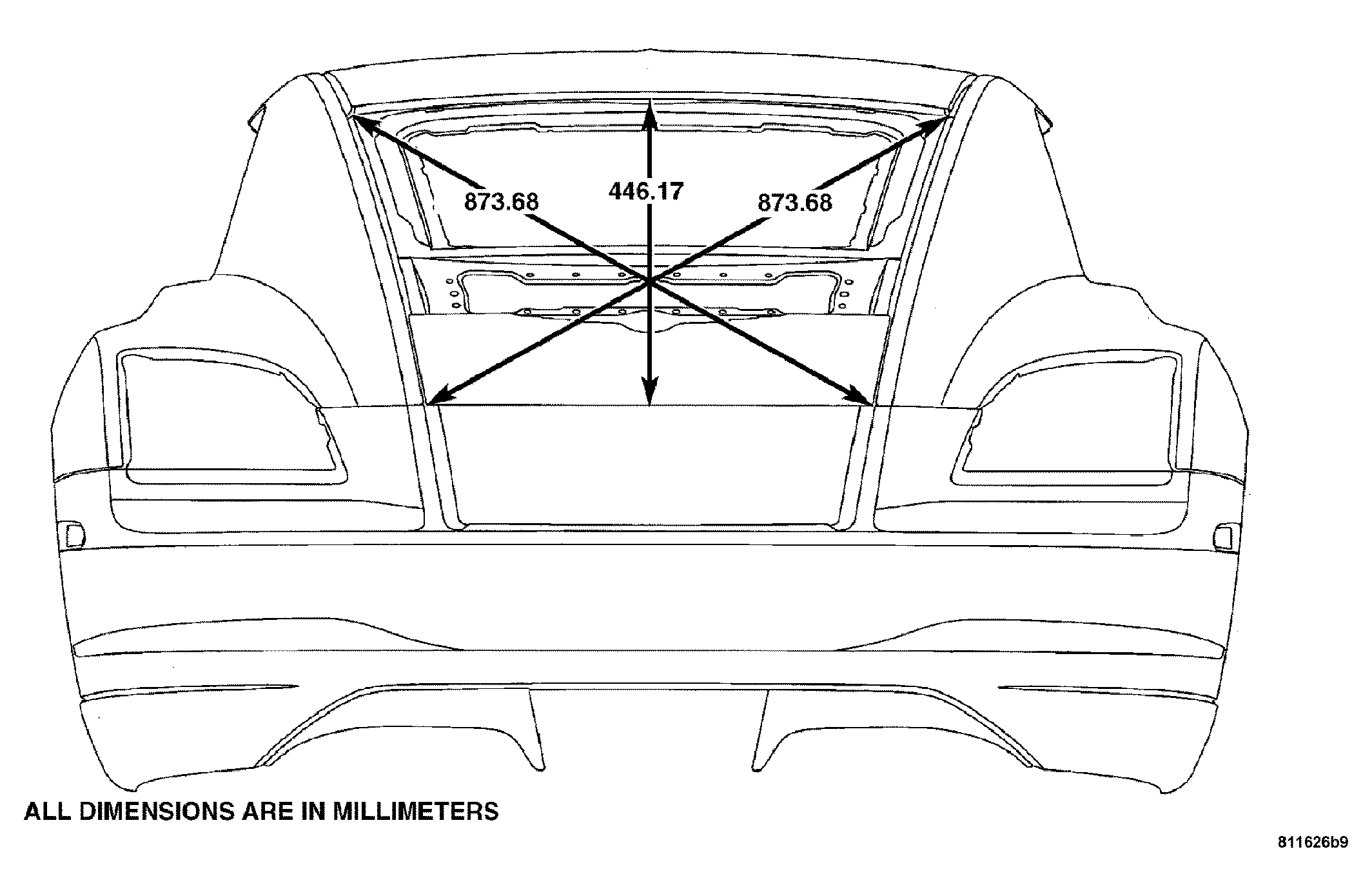

Fig 2: Liftgate Opening Specifications
GC0033168Courtesy of CHRYSLER LLC

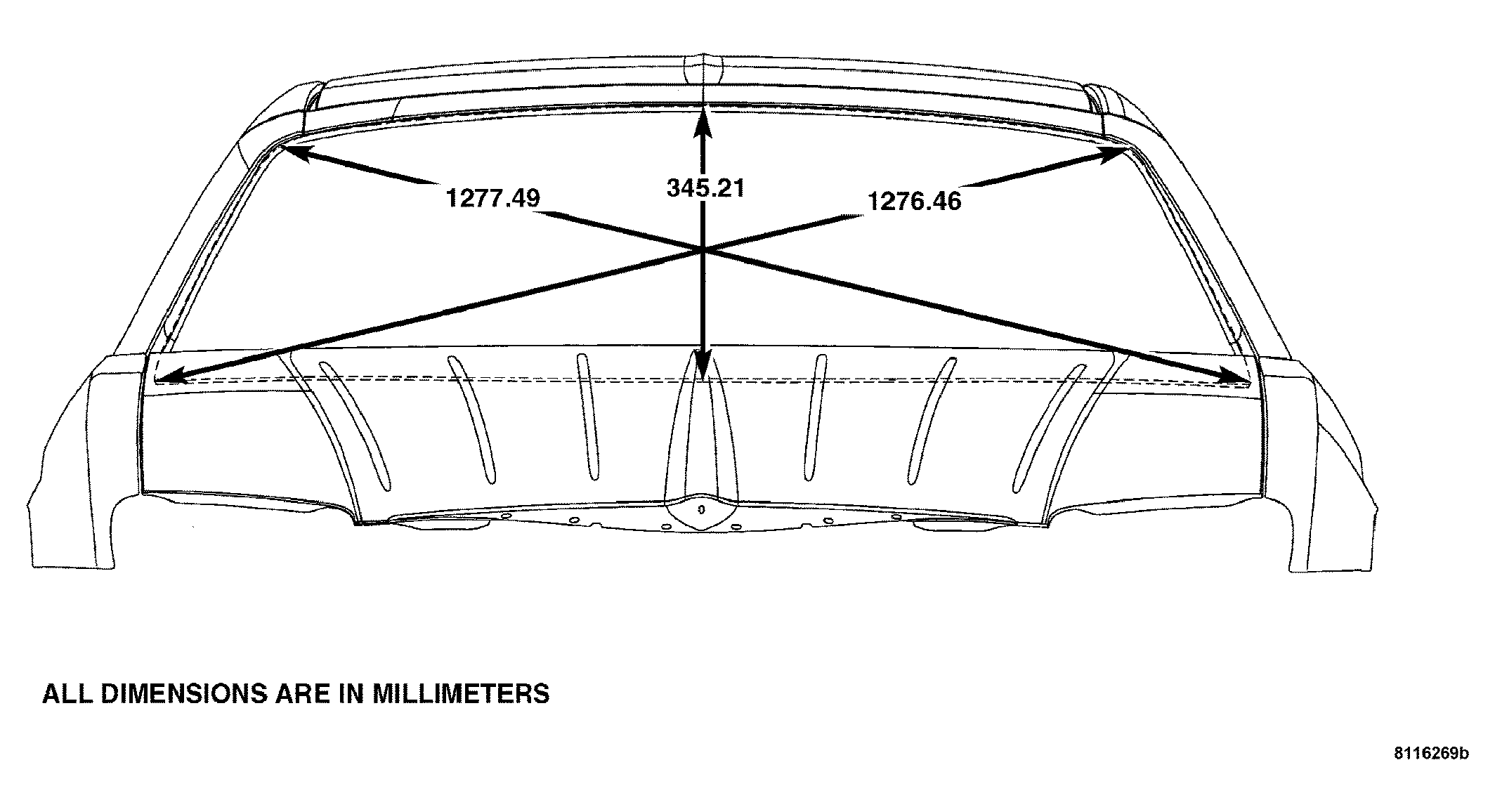

Fig 3: Windshield Opening Specifications
GC0033166Courtesy of CHRYSLER LLC

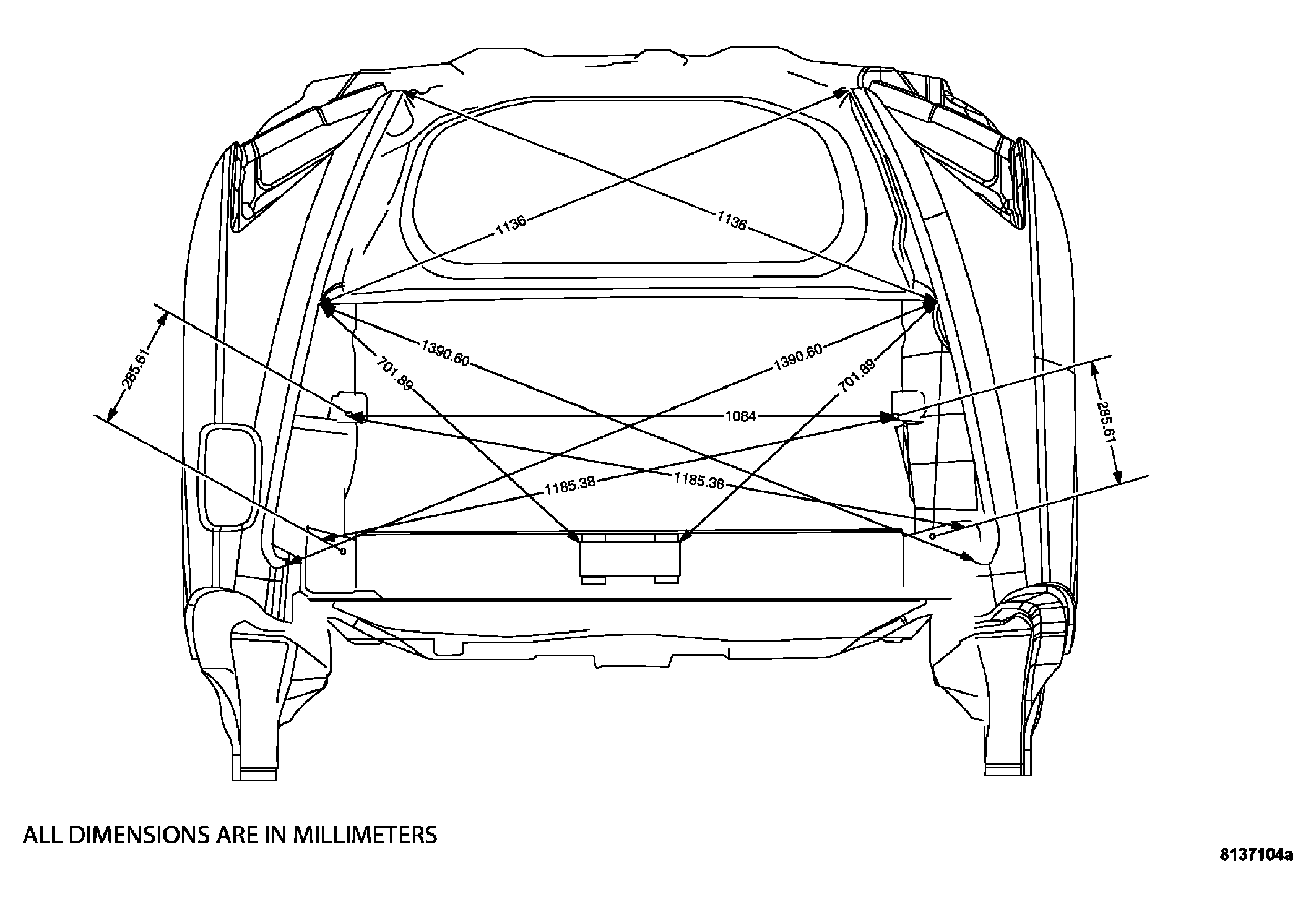

Fig 4: Convertible Opening Specifications
GC0033169Courtesy of CHRYSLER LLC
