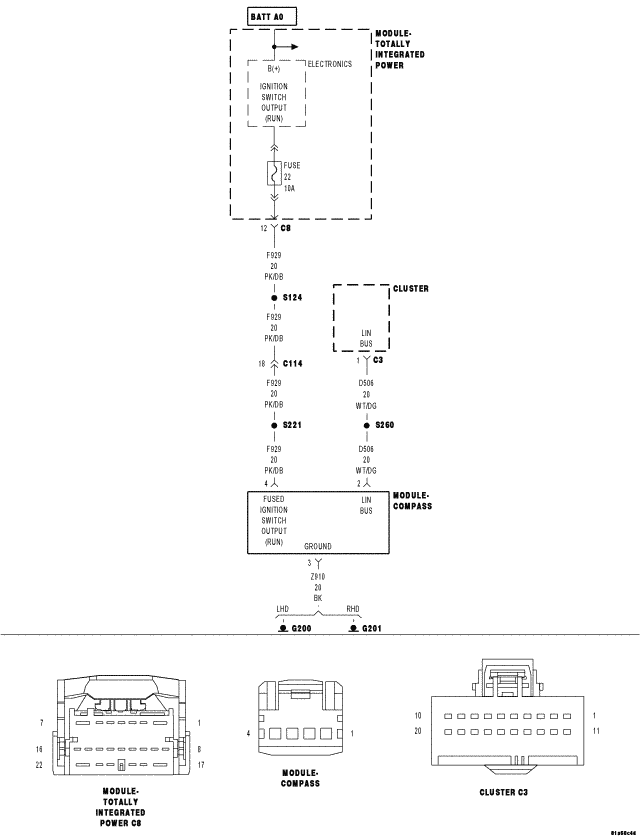

Home >> Chrysler >> 2007 >> Sebring Base, 2.4 K >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Cluster - Electrical Diagnostics >> Instrument Cluster - Electrical Diagnostics >> DTC Troubleshooting >> U0161-Lost Communication With Compass Module >> Circuit Schematic
