Front Seat Cushion Side Shield

  1. Remove seat from vehicle. See REMOVAL .

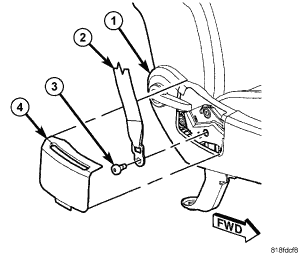

    Fig 1: SEAT BELT ANCHOR TRIM
    GC0060803Courtesy of CHRYSLER LLC
  2. If equipped, remove recliner handle. See REMOVAL .
  3. Remove side shield side cover (4), seatbelt anchor bolt (3), and seat belt (2), from side cover (1).

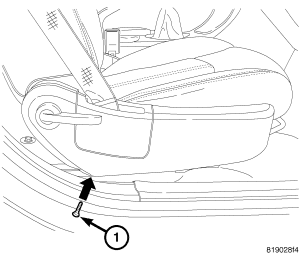

    Fig 2: SIDE SHIELD SCREW
    GC0060812Courtesy of CHRYSLER LLC
  4. Remove screw (1) attaching seat cushion side shield to the bottom and side of seat cushion.
  5. Remove shield from seat
  6. Disconnect switch wire connectors, if equipped.
  7. Remove seat switches, if equipped.
