Left Lower Instrument Panel Trim

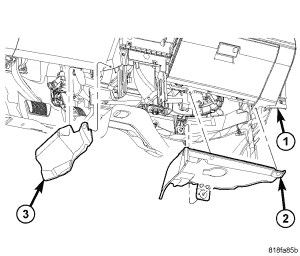

Fig 1: Lower Instrument Panel Trim
GC0060777Courtesy of CHRYSLER LLC
  1. Remove closeout panels push pins fastening closeout panels to the bottom of the instrument panel assembly.
  2. Remove closeout panels from instrument panel assembly (1).
