Instrument Panel Top Cover

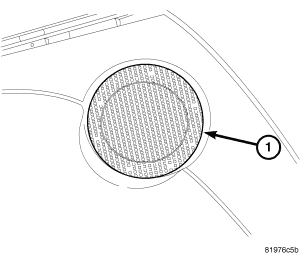

Fig 1: SPEAKER GRILLE

Courtesy of CHRYSLER LLC

Remove A-pillar trim. Using a trim stick C-4755 or equivalent, gently pry out and remove. See REMOVAL .
Using a trim stick or equivalent, disengage clips holding speaker grille (1) to instrument panel.
Remove defroster grille (1). See REMOVAL .
Using a trim stick or equivalent, remove passenger bezel.

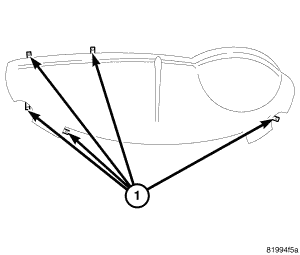

Fig 2: TOP COVER
Courtesy of CHRYSLER LLC
Remove five top pad fasteners. Three fence fasteners and two located under passenger bezel.
CAUTION: The Instrument Panel Top pad may be hard to unsnap from the instrument panel. Be sure not to mar, scuff, or damage the instrument panel pad.
Remove the airbag fasteners from the instrument panel reinforcement. Refer to REMOVAL .
Pull top cover rearward to disengage hooks holding front of top cover to instrument panel.
Remove top cover from vehicle.

NOTE: If replacing the top pad, transfer the passenger airbag to the new top pad. Refer to REMOVAL .
