Glove Box

  1. Open glove box.
  2. Push in on sides of glove box bin and lower door.

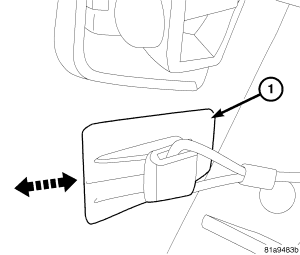

    Fig 1: GLOVE BOX DAMPENER
    GC0060762Courtesy of CHRYSLER LLC
  3. Remove glove box dampener retaining clip from bin key hole by sliding retaining clip rearward.
  4. Pivot glove box downward and disengage hinge hooks from instrument panel.
  5. Remove glove box.
