Latch Striker: Removal: Removal

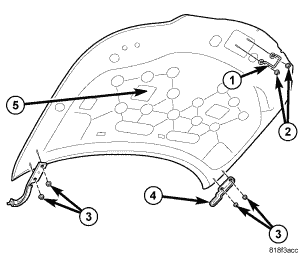

Fig 1: HOOD
GC0060751Courtesy of CHRYSLER LLC
  1. Remove nuts (2) fastening striker to hood (5).
  2. Remove striker (1) from hood (5).
