Inspection - Seat Belt & Seat Belt TENSIONER

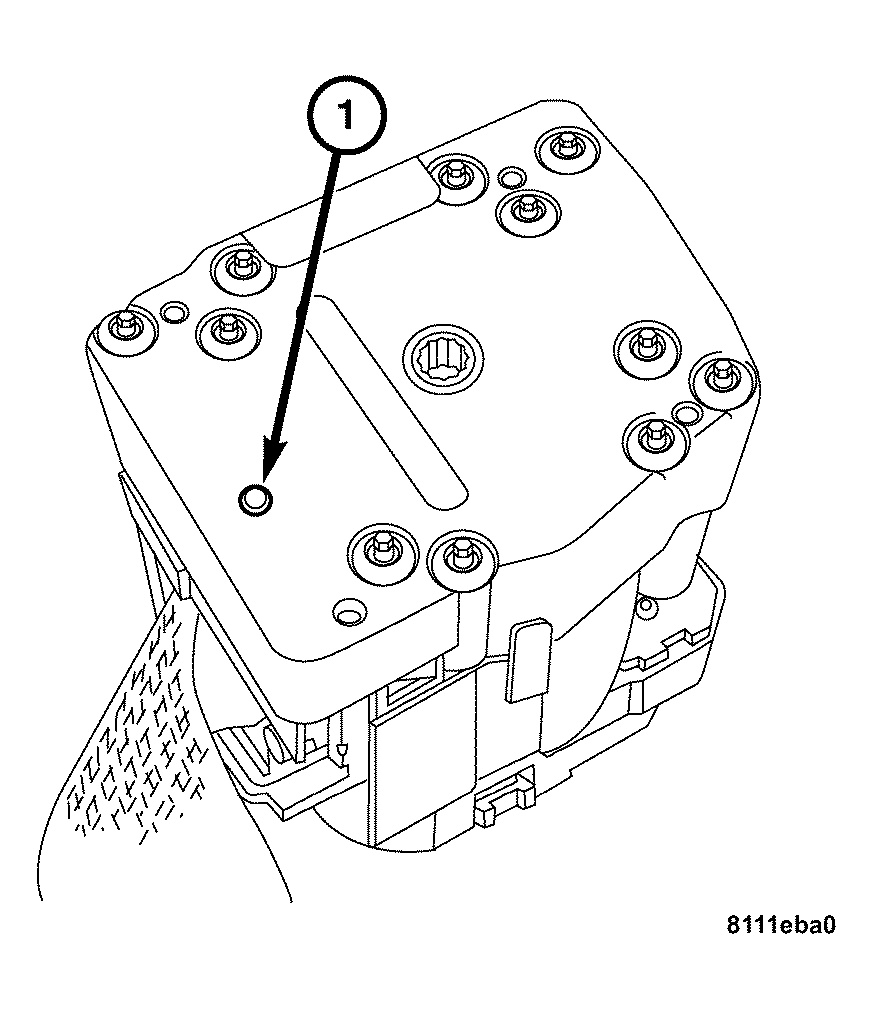

Fig 1: Locating Red Pin To Inspect Squib Status

Courtesy of CHRYSLER LLC

1. Inspect the Occupant Restraint Controller (ORC) with the scan tool.
2. Read and record all DTCs.
3. Inspect the Seat Belt Tensioner squib status:
   1. Red Pin (1) is visible: All squibs have been fired.
   2. Red Pin (1) is not visible: All squibs have not been fired.
