Body - Interior & Exterior (Service Information): Interior: Headliner: Removal

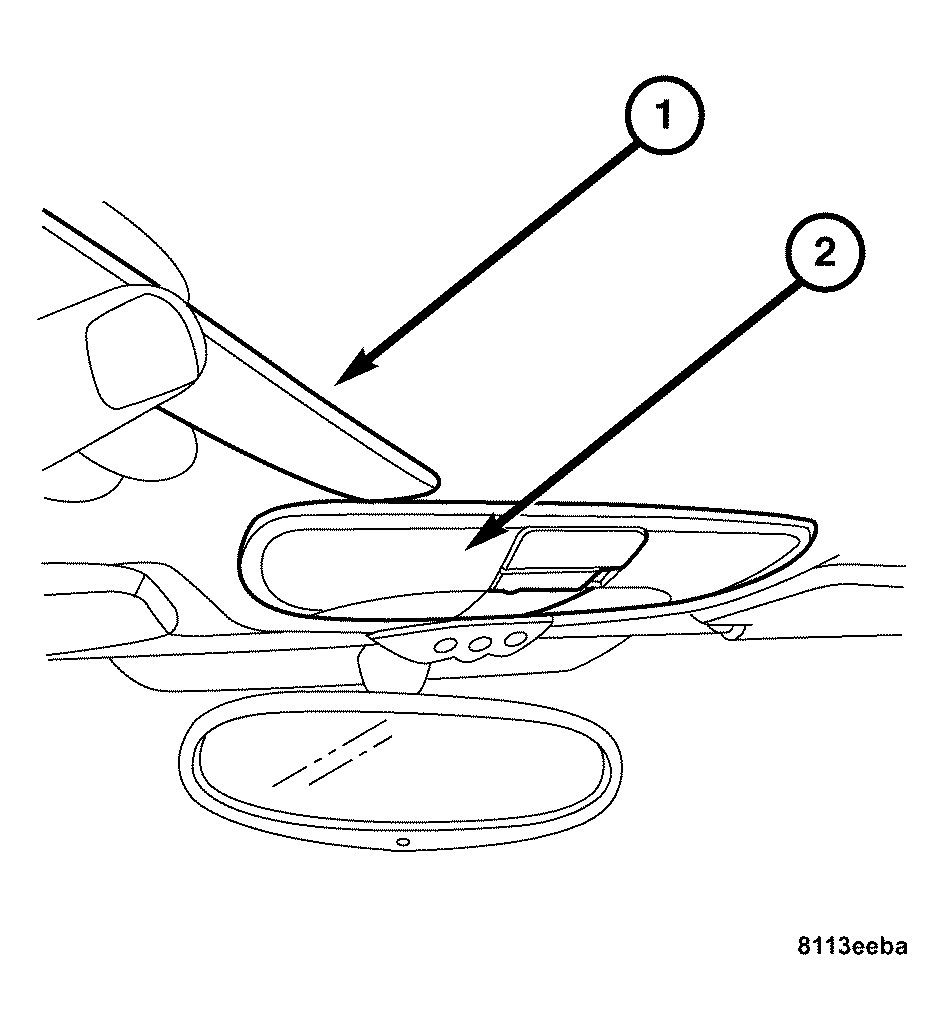

Fig 1: Removing Dome Lamp Assembly

Courtesy of CHRYSLER LLC

1. Remove the dome lamp assembly (2) by gently prying off the lens using a trim stick (1) or equivalent.

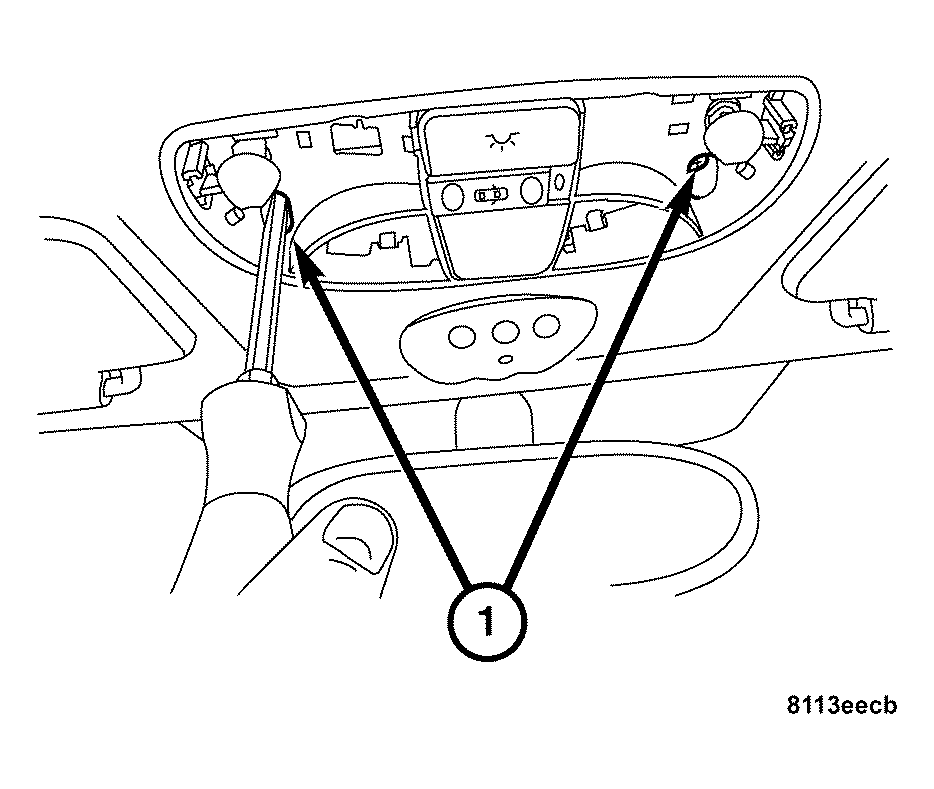

   Fig 2: Removing/Installing Dome Lamp Assembly Retaining Screws

   Courtesy of CHRYSLER LLC
2. Remove the two retaining screws (1) and pull the dome lamp assembly from the headliner.

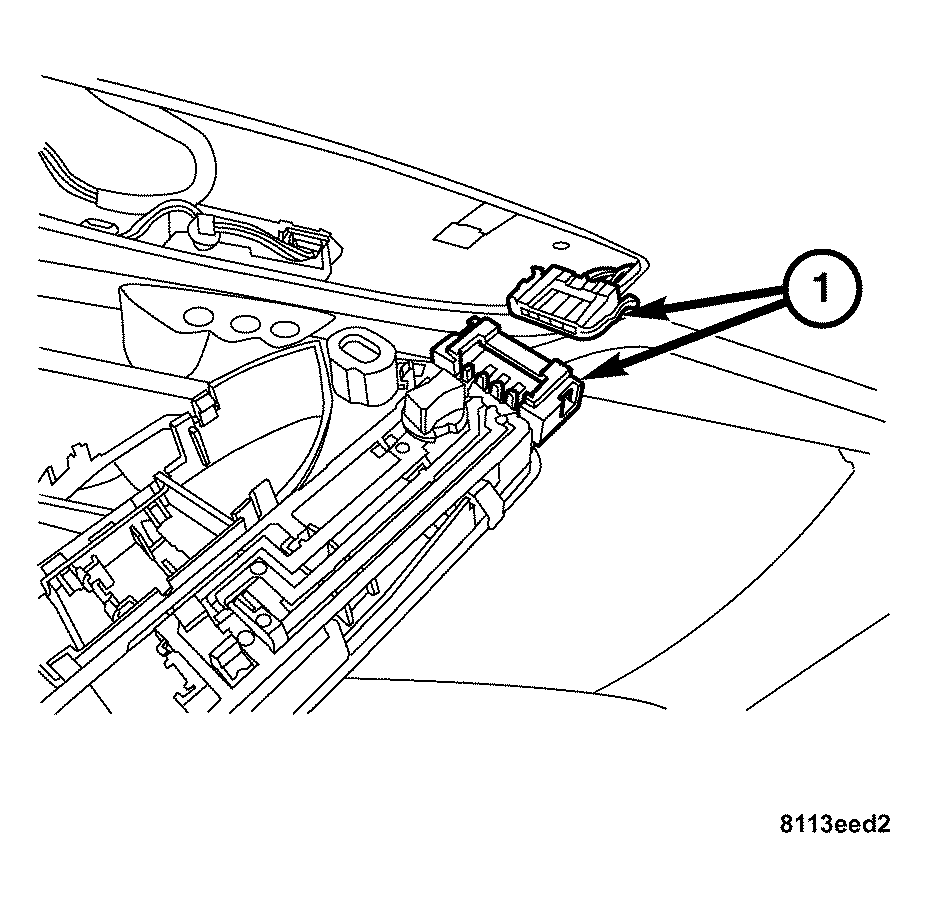

   Fig 3: Disconnecting/Connecting Dome Lamp Assembly Harness Connector

   Courtesy of CHRYSLER LLC
3. Disconnect the dome lamp assembly harness connector (1) and remove the dome lamp assembly.
   Fig 4: Locating Universal Garage Door Opener/Tire Pressure Monitor (TPM) Module

   Courtesy of CHRYSLER LLC
4. Remove the universal garage door opener/TPM module (1) from the headliner using a trim stick or equivalent. Pull the module from the headliner and disconnect the harness connector.
5. Remove both the right and left sun visor assemblies.

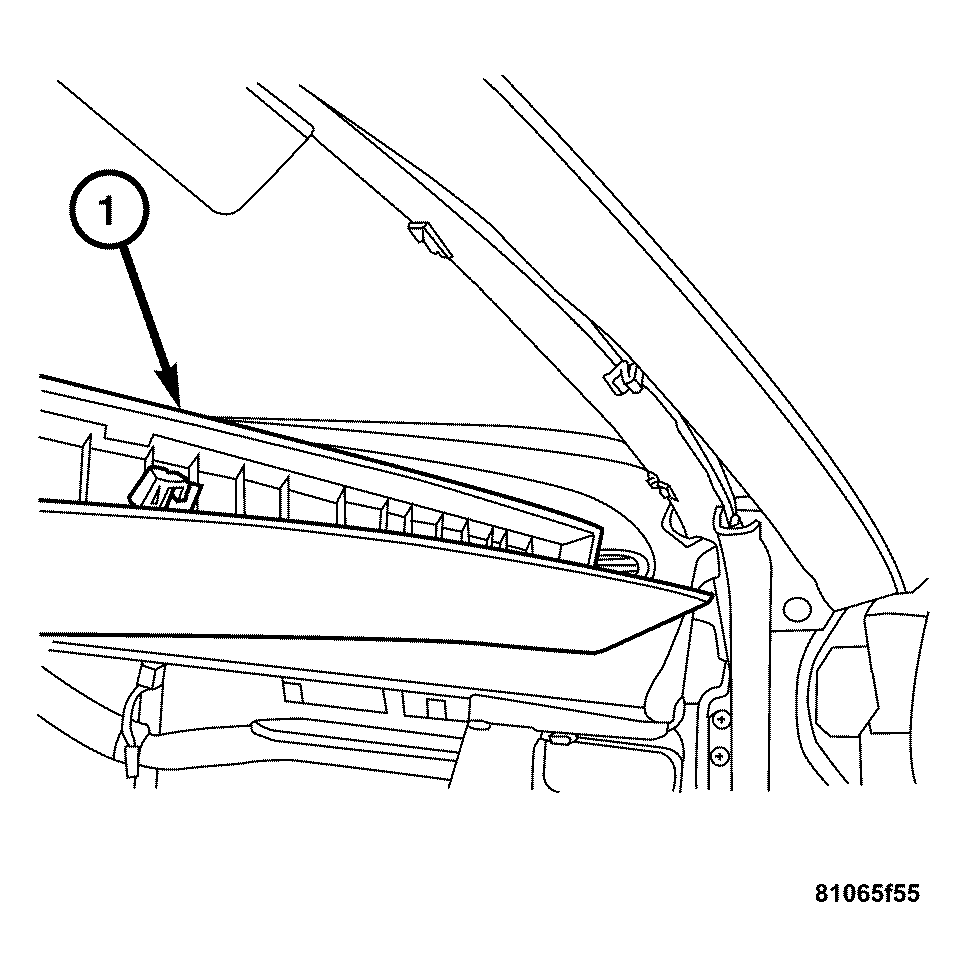

   Fig 5: Identifying A-Pillar Trim

   Courtesy of CHRYSLER LLC
6. Remove the right and left A-pillar trim panels.
7. Tilt both seats all the way forward and all the way down.
   Fig 6: Removing/Installing Rear Interior Trim Panel

   Courtesy of CHRYSLER LLC
8. Disengage rear interior trim panel (2) retaining clips near headliner.
9. Remove the rear headliner retaining clips (1).
10. Remove the headliner from the passenger door opening.
