Diagnostic Test

1) TEST THE RIGHT FRONT POWER WINDOW MOTOR

Fig 1: Testing Right Front Power Window Motor
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Body Control Module (BCM) C4 harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a fused jumper wire from cavity 12 of the BCM C4 harness connector to B(+).

Connect a second fused jumper wire to cavity 13 of the BCM harness connector and momentarily connect the jumper to ground.

Note the window movement; if the left front window does not move, reverse the jumper wires at the B(+) and ground connections.

Did the left front window move upward or downward?

Yes
1. Replace the Body Control Module. Refer to REMOVAL .
2. Perform BODY VERIFICATION TEST .
No
1. Go to 2).
2) MEASURE RIGHT FRONT POWER WINDOW DRIVER CIRCUITS RESISTANCE

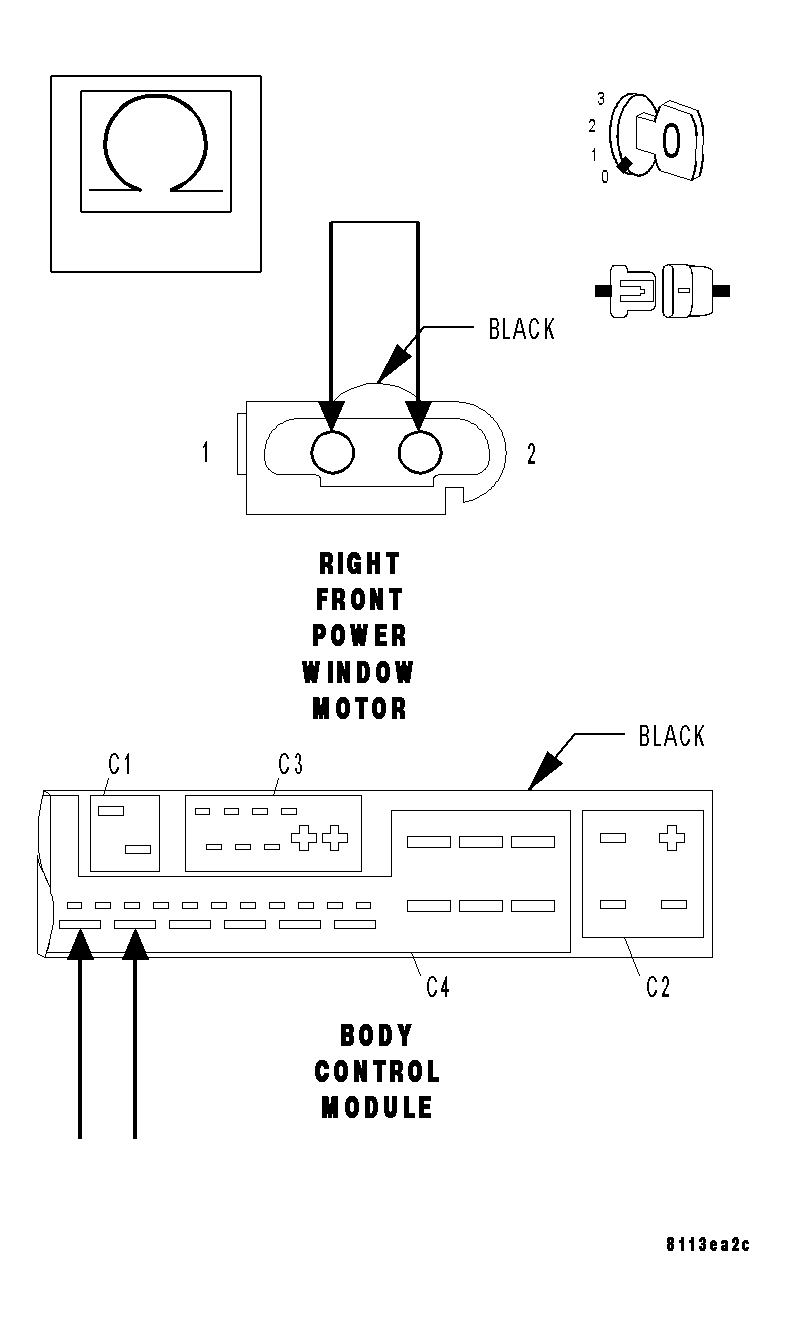

Fig 2: Measuring Right Front Power Window Driver Motor Circuit Resistance
Courtesy of CHRYSLER LLC

With the ignition off.

Disconnect the Right Front Power Window Motor harness connector.

NOTE: Check connectors - Clean/repair as necessary.

Connect a jumper wire between cavity 1 and cavity 2 of the Right Front Power Window Motor harness connector.

Measure the resistance between cavity 12 and cavity 13 of the BCM C4 harness connector.

Is the resistance below 5.0 ohms?

Yes
1. Replace the Right Front Power Window Motor. Refer to REMOVAL .
2. Perform BODY VERIFICATION TEST .
No
1. Repair the Right Front Power Window Driver circuit for an open.
2. Perform BODY VERIFICATION TEST .
