DTC 1265-01: Rear Spoiler Switch Sense Circuit: Notes

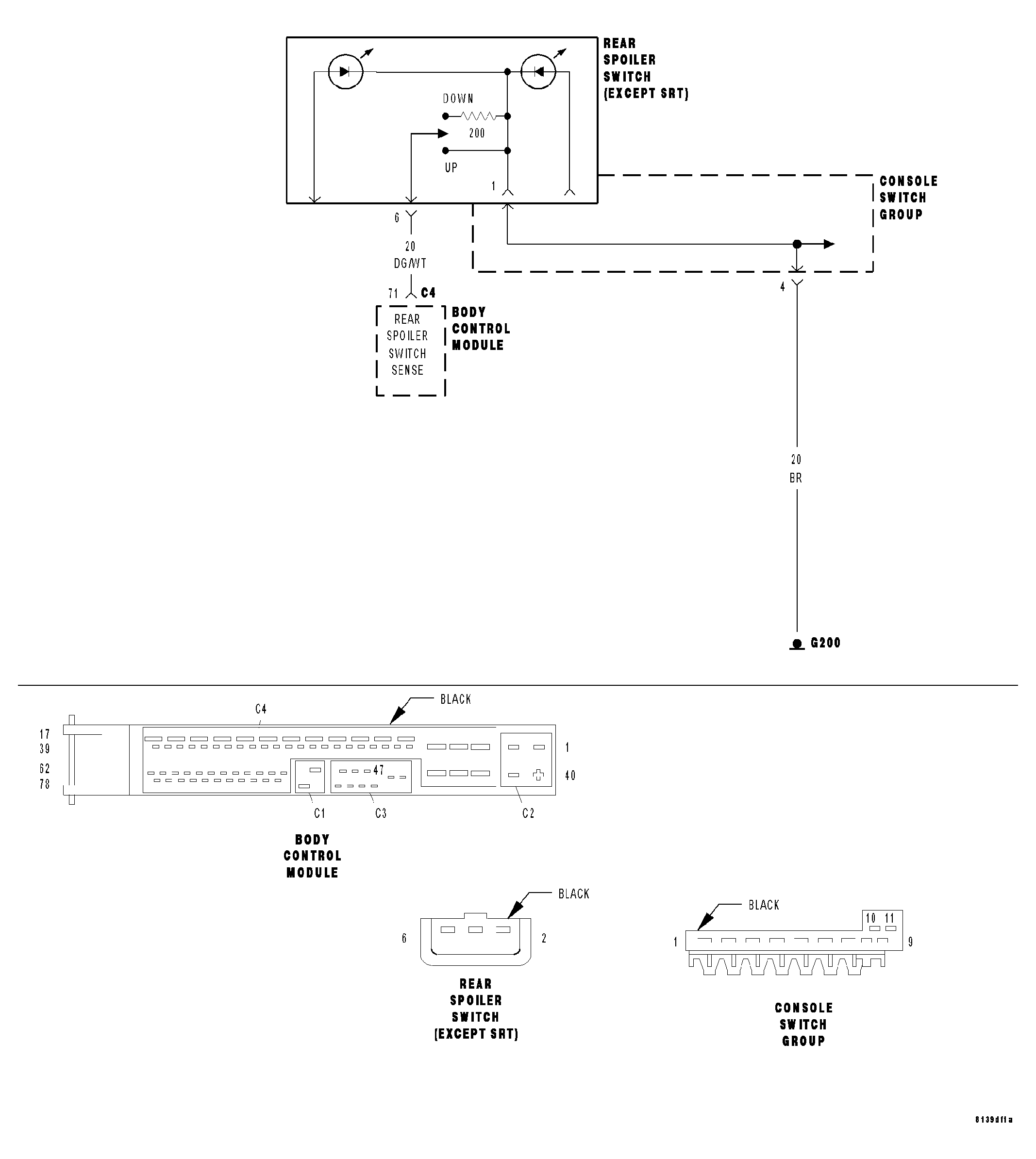

Fig 1: Rear Spoiler Switch Sense Circuit Schematic

GC0032983

Courtesy of CHRYSLER LLC
