Diagnostic Test

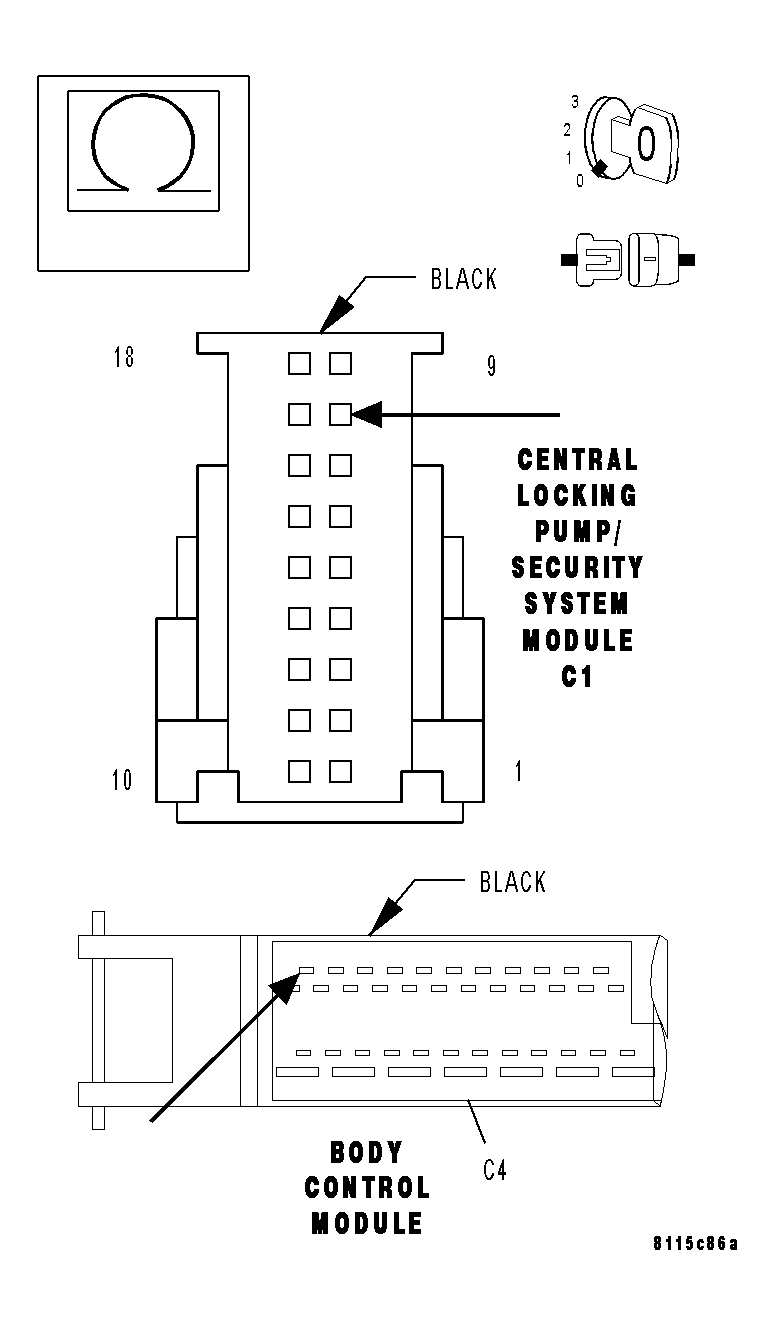

- 1) MEASURE THE RESISTANCE OF THE CAN B BUS (+) CIRCUIT
Turn the ignition off.
Disconnect the BCM harness connector.
Disconnect the CLP/SSM harness connector.
NOTE: Check connectors - Clean/repair as necessary.Measure the resistance of the CAN B Bus (+) circuit from the BCM harness connector to the CLP/SSM harness connector.
Is the resistance below 1.0 ohm?
Yes
- Go to 2).
No
- Repair the CAN B Bus (+) circuit for an open.
- Perform BODY VERIFICATION TEST .

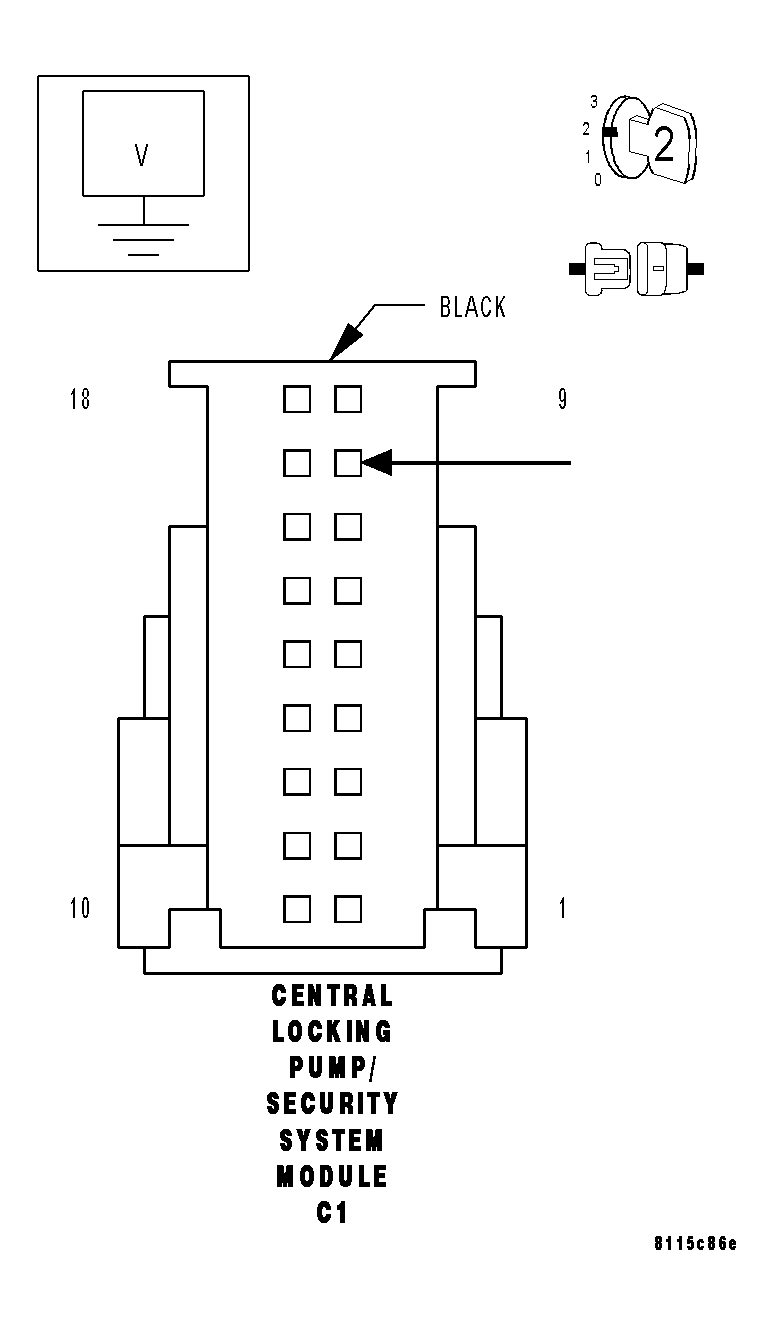

- 2) MEASURE THE VOLTAGE OF THE CAN B BUS (+) CIRCUIT
Turn the ignition on.
Measure the voltage of the CAN B Bus (+) circuit at the CLP/SSM harness connector.
Is voltage present?
Yes
- Repair the CAN B Bus (+) circuit for a short to voltage.
- Perform BODY VERIFICATION TEST .
No
- Go to 3).

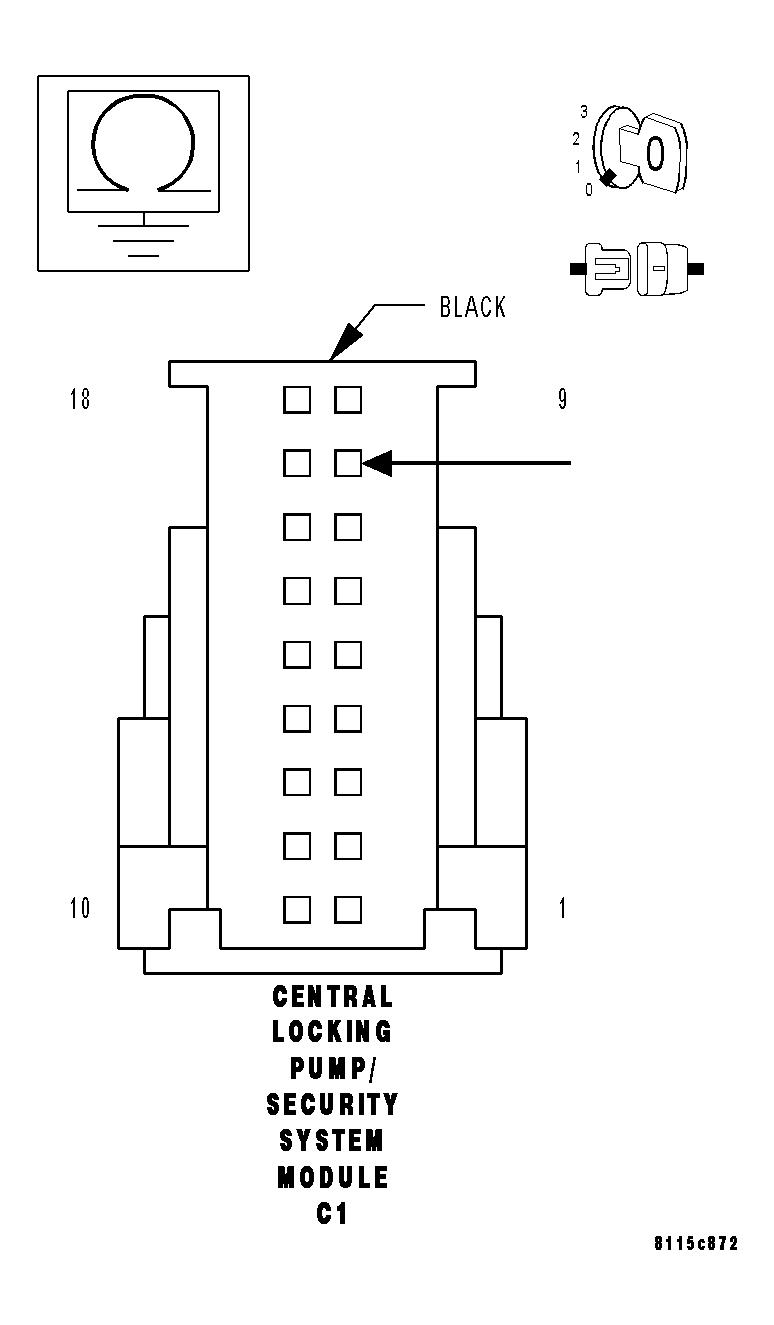

- 3) MEASURE THE RESISTANCE OF THE CAN B BUS (+) CIRCUIT
Turn the ignition off.
Measure the resistance between ground and the CAN B Bus (+) circuit at the CLP/SSM harness connector.
Is the resistance below 10K ohms?
Yes
- Repair the CAN B Bus (+) circuit for a short to ground.
- Perform BODY VERIFICATION TEST .
No
- Replace the Central Locking Pump/Security System Module. Refer to REMOVAL .
- Perform BODY VERIFICATION TEST .
