DTC 9938: Top Position Unknown Rear Bow SW Latched/Tonneau Cover SW Unlatched: Notes

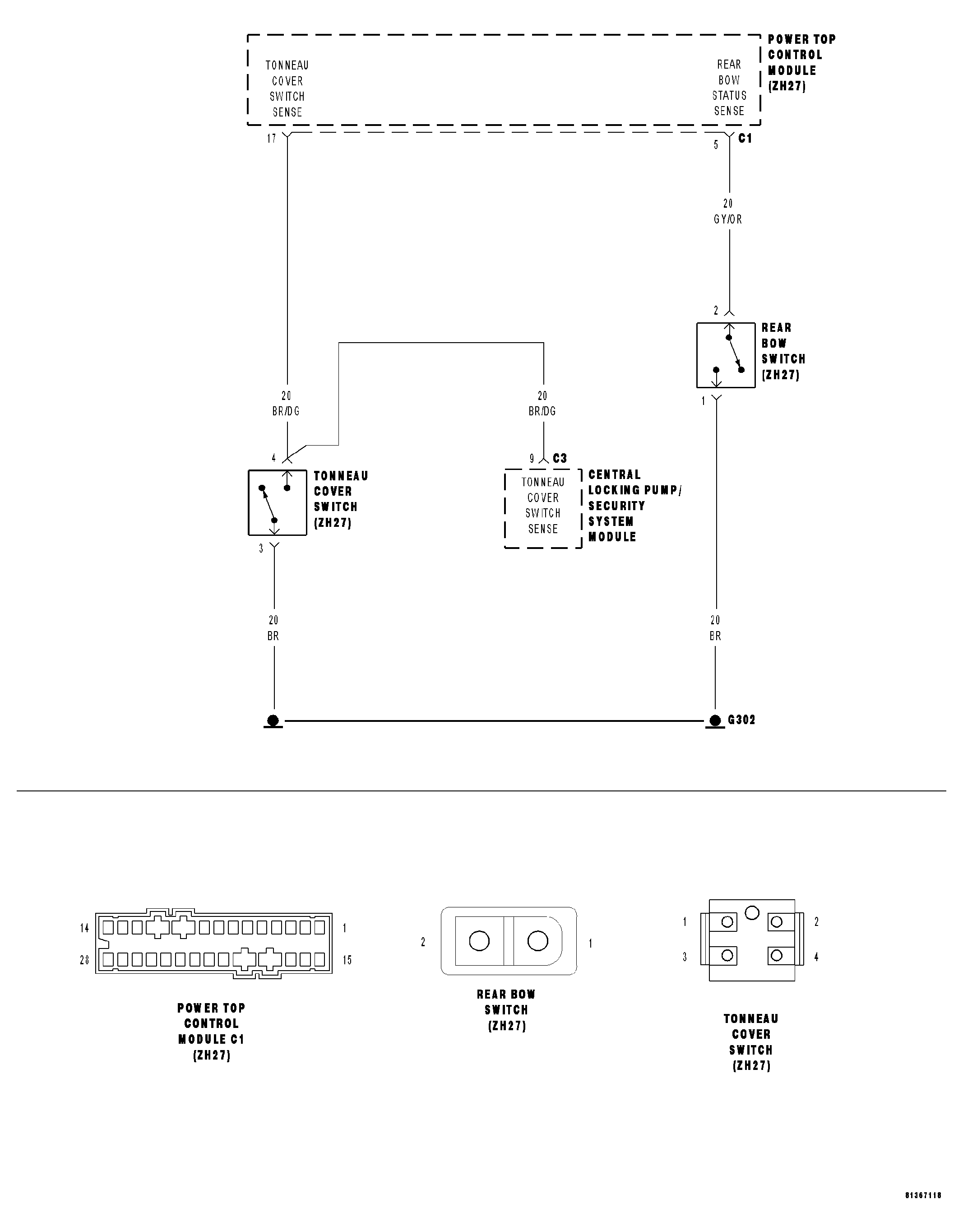

Fig 1: Rear Bow Switch & Tonneau Cover Travel Sensor Circuit Schematic

GC0033141

Courtesy of CHRYSLER LLC
