Trunk Opening Weatherstrip: Removal

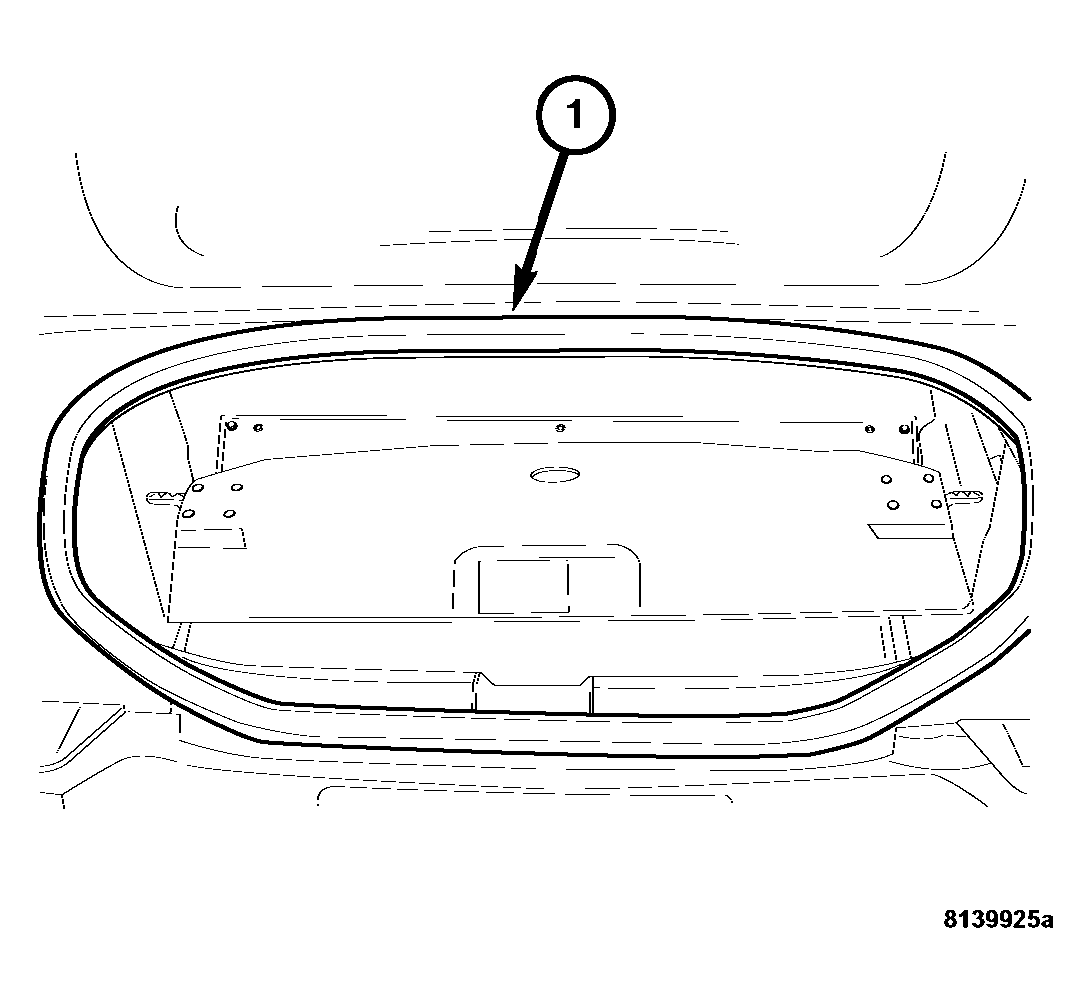

Fig 1: Identifying Trunk Opening Weatherstrip
GC0033452Courtesy of CHRYSLER LLC
  1. Using a trim stick or other suitable device, carefully pry up the inner edge.
  2. Grasp the edge of the weatherstrip (1) and pull outward to remove the seal from the trunk.
