Tonneau Cover Weatherstrip: Removal

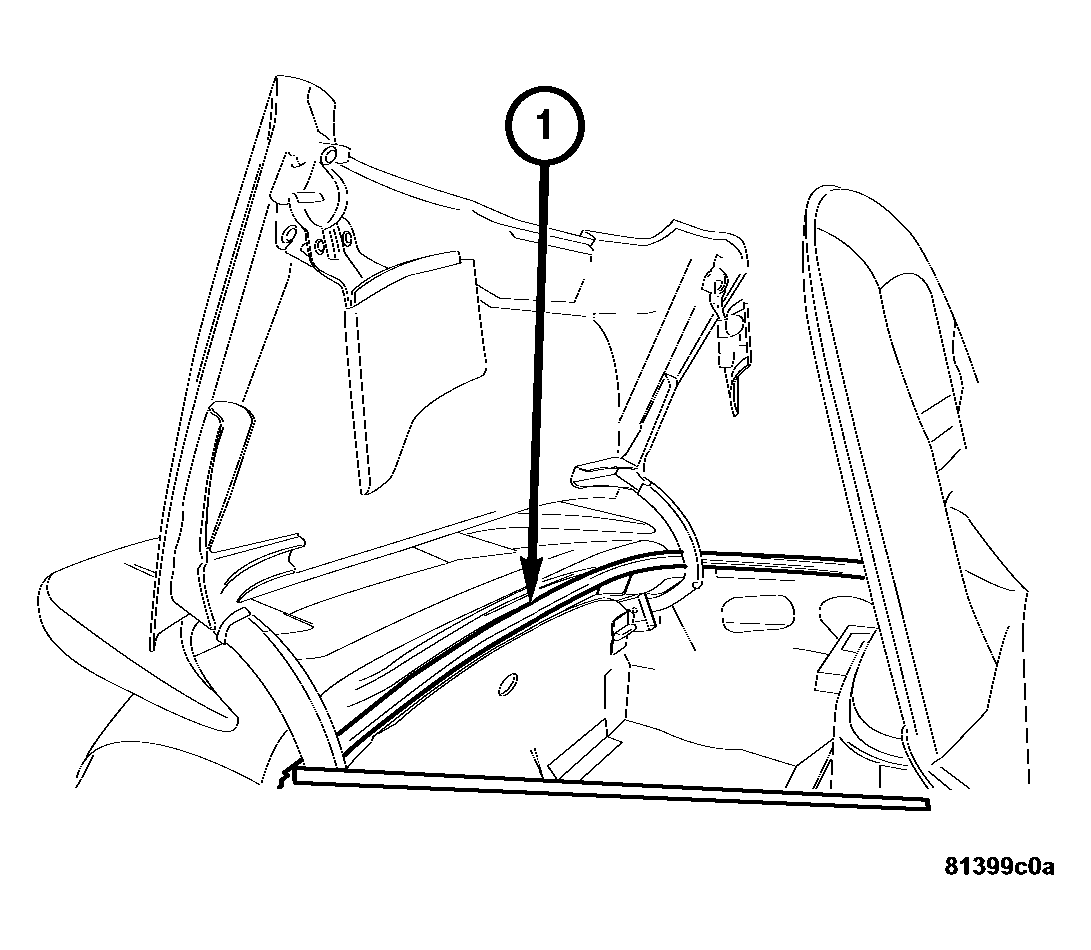

Fig 1: Identifying Tonneau Cover Weatherstrip
GC0033454Courtesy of CHRYSLER LLC
  1. Open the convertible top half way.
  2. Using a trim stick or other suitable device, carefully pry up the inner edge.
  3. Grasp the edge of the weatherstrip (1) and pull outward to remove the seal from the tonneau opening.
