Header / A-Pillar Weatherstrip: Removal

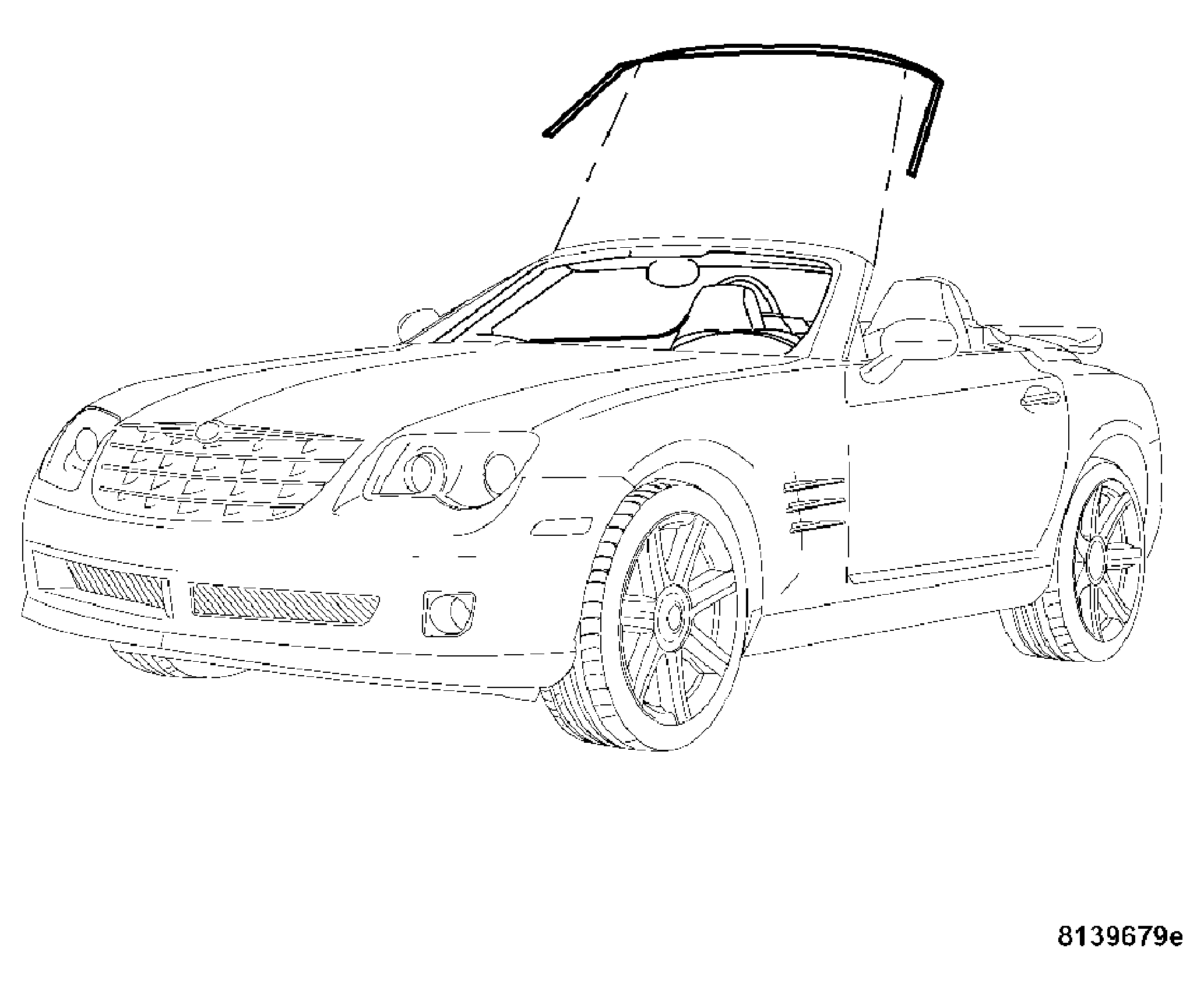

Fig 1: Removing/Installing Header/A-Pillar Weatherstrip
GC0033450Courtesy of CHRYSLER LLC
  1. Using a trim stick or other suitable device, carefully pry up the inner edge.
  2. Grasp the edge of the weatherstrip and pull outward to remove the seal from the a-pillar and header.
