Convertible Rail Weatherstrip: Removal

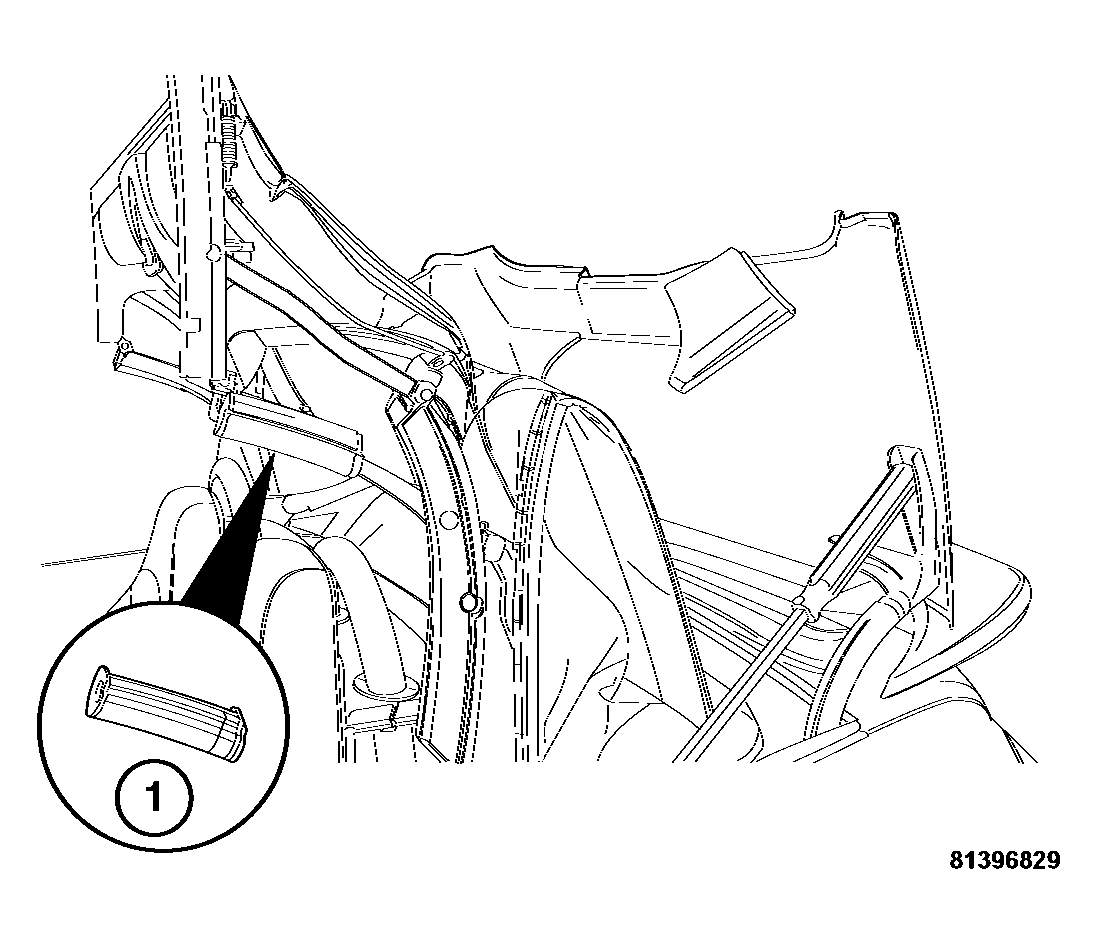

Fig 1: Identifying Convertible Top Side Rail Weatherstrip
GC0033451Courtesy of CHRYSLER LLC
  1. Open the convertible top half way.
  2. Remove the convertible top side rail weatherstrip (1).

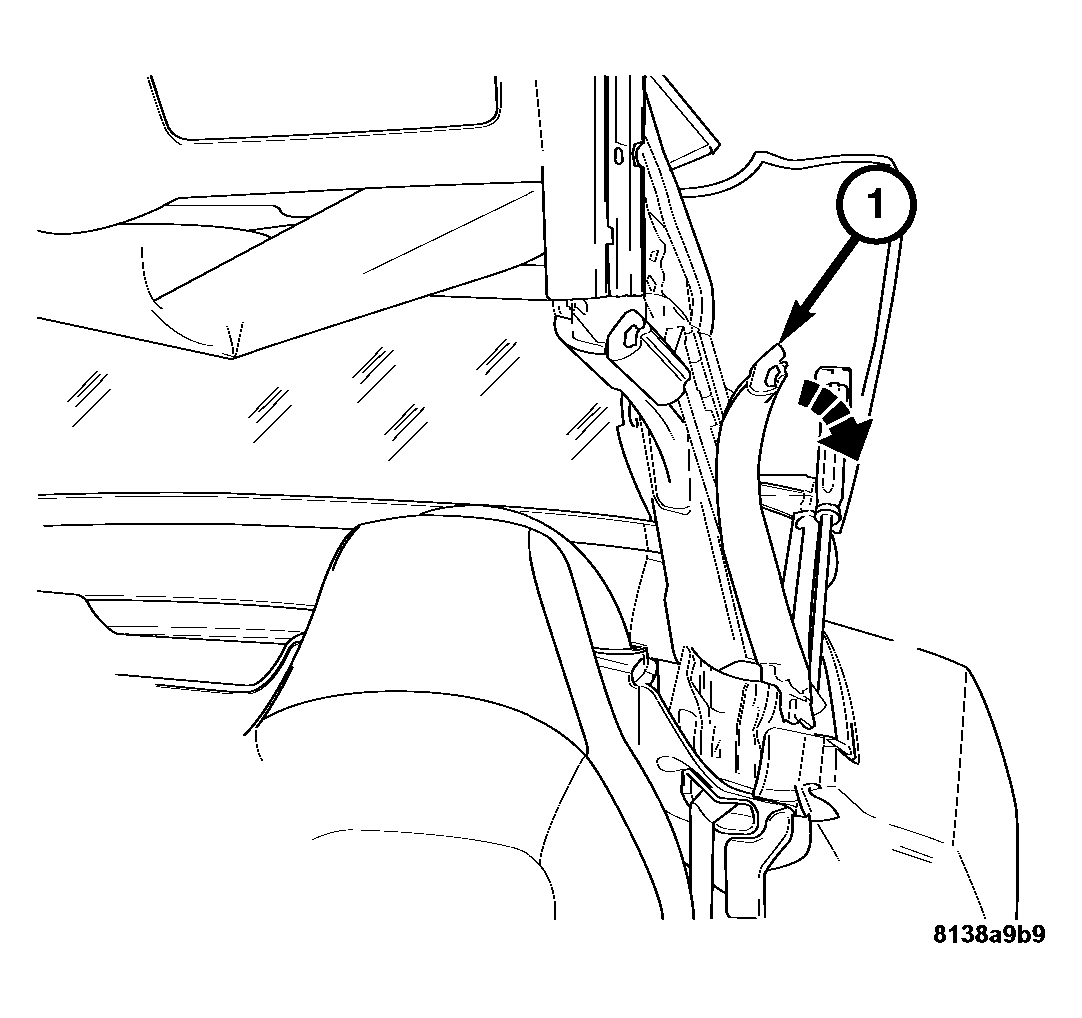

    Fig 2: Removing/Installing Rear Weatherstrip
    GC0033411Courtesy of CHRYSLER LLC
  3. Pull the rear weatherstrip away from the bow.
