Seat Back Cover: Removal

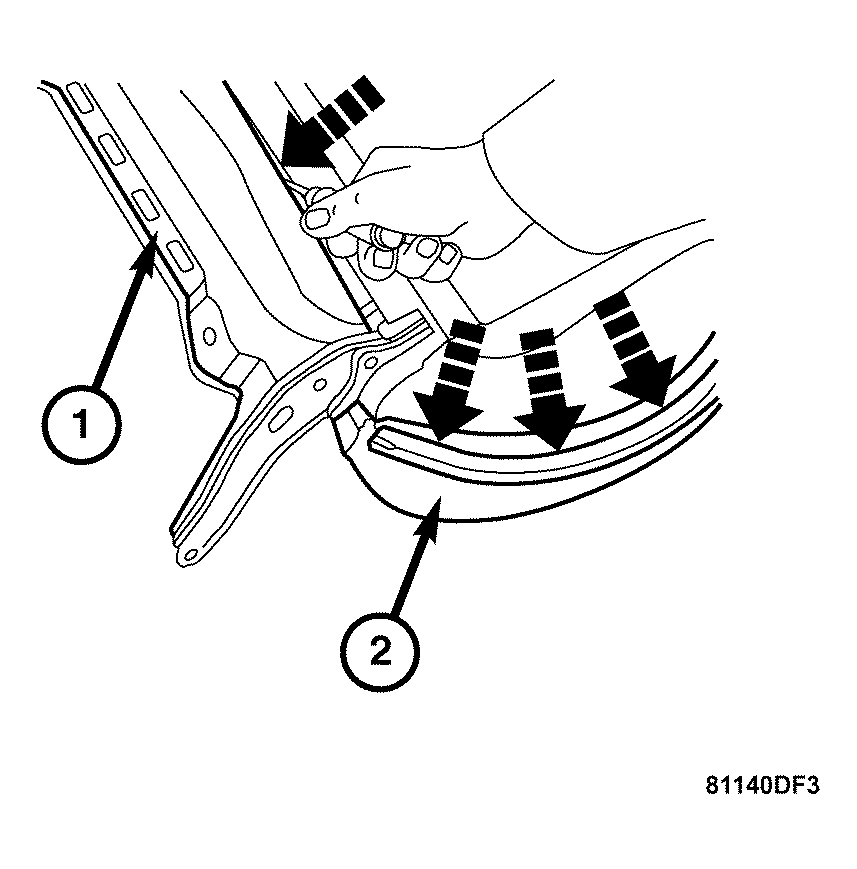

Fig 1: Removing/Installing Seat Back Cover
GC0033334Courtesy of CHRYSLER LLC
  1. Remove the front seat back. See REMOVAL .
  2. Lay the seat back (1) down on a suitable surface with the cover (2) down.
  3. Unhook the cover (2) all the way around on the clip groove in the rear shell.

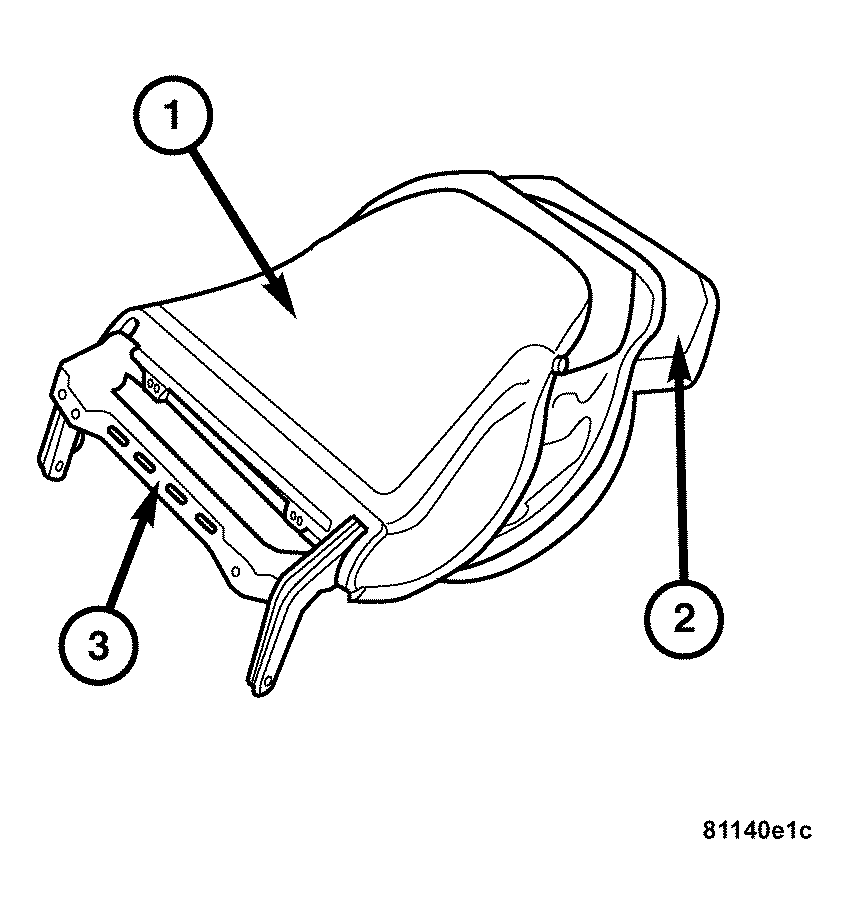

    Fig 2: Identifying Seat Back Frame & Rubber Pad
    GC0033335Courtesy of CHRYSLER LLC
  4. Remove seat back frame (3) from the foam rubber pad (2).

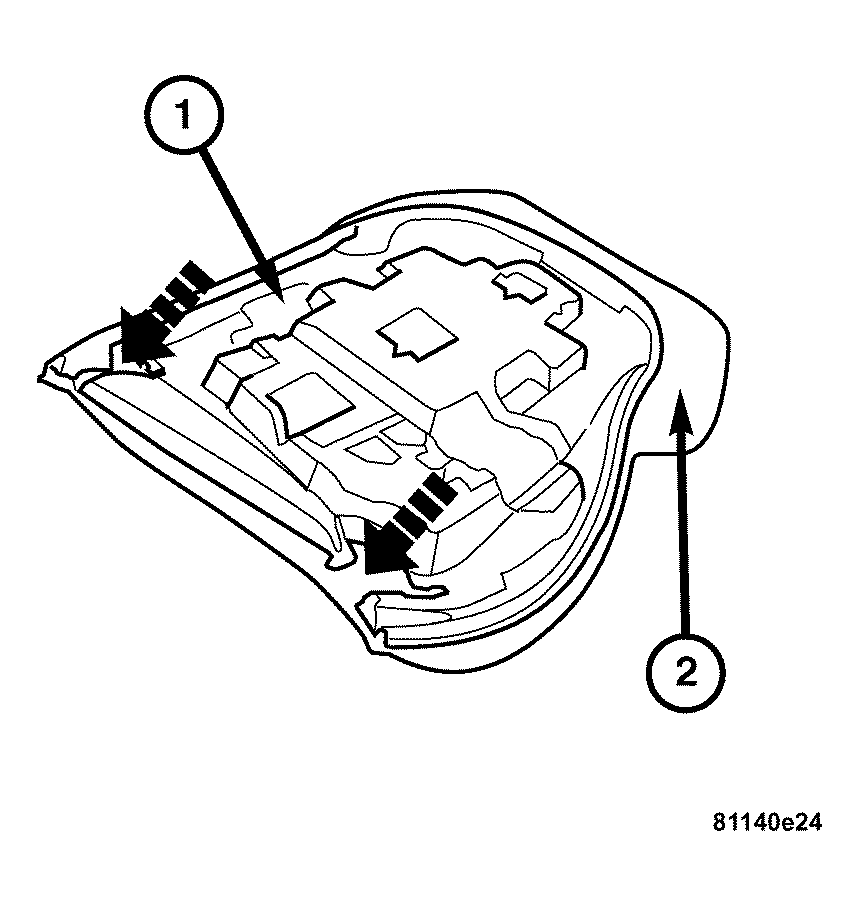

    Fig 3: Removing/Installing Cover
    GC0033336Courtesy of CHRYSLER LLC
  5. Remove the cover (2) from the Velcro® strip in area of seat back (1) hinge area.

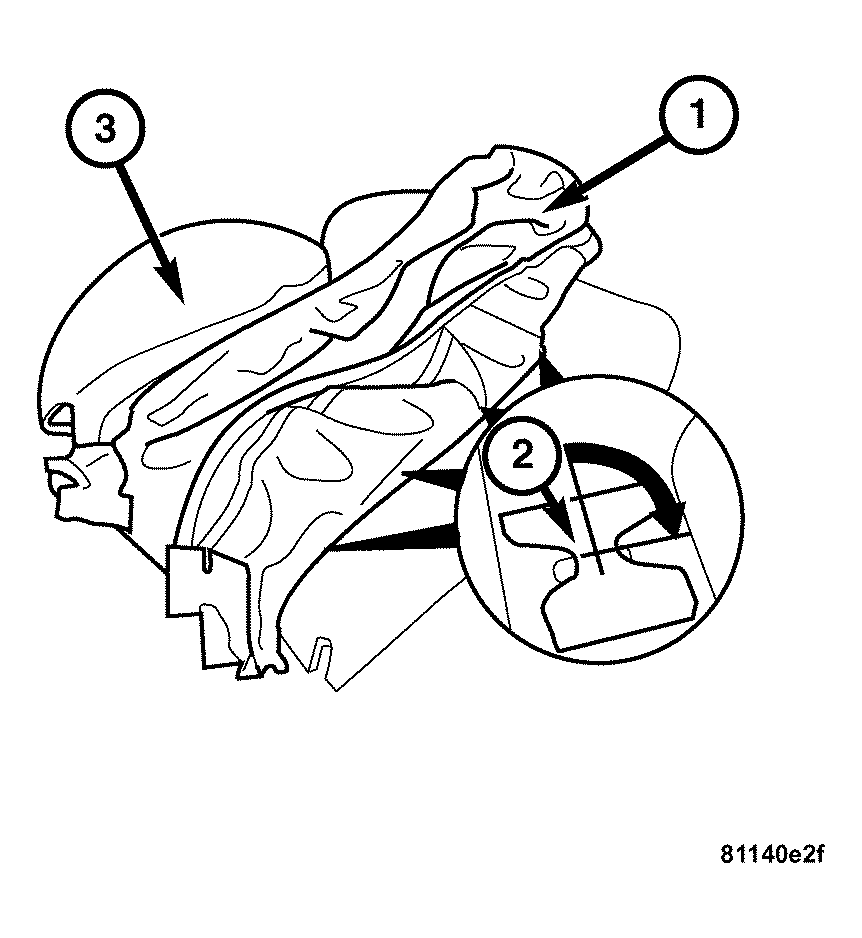

    Fig 4: Identifying Cover, Upholstery Clips & Foam Rubber Pad
    GC0033337Courtesy of CHRYSLER LLC
  6. Pull the cover (1) over the foam rubber pad (3) in the upper area.
  7. Remove the longitudinal retainers by turning the upholstery clips (2) 90°.
  8. Remove the cover (1) from the foam rubber pad (3).

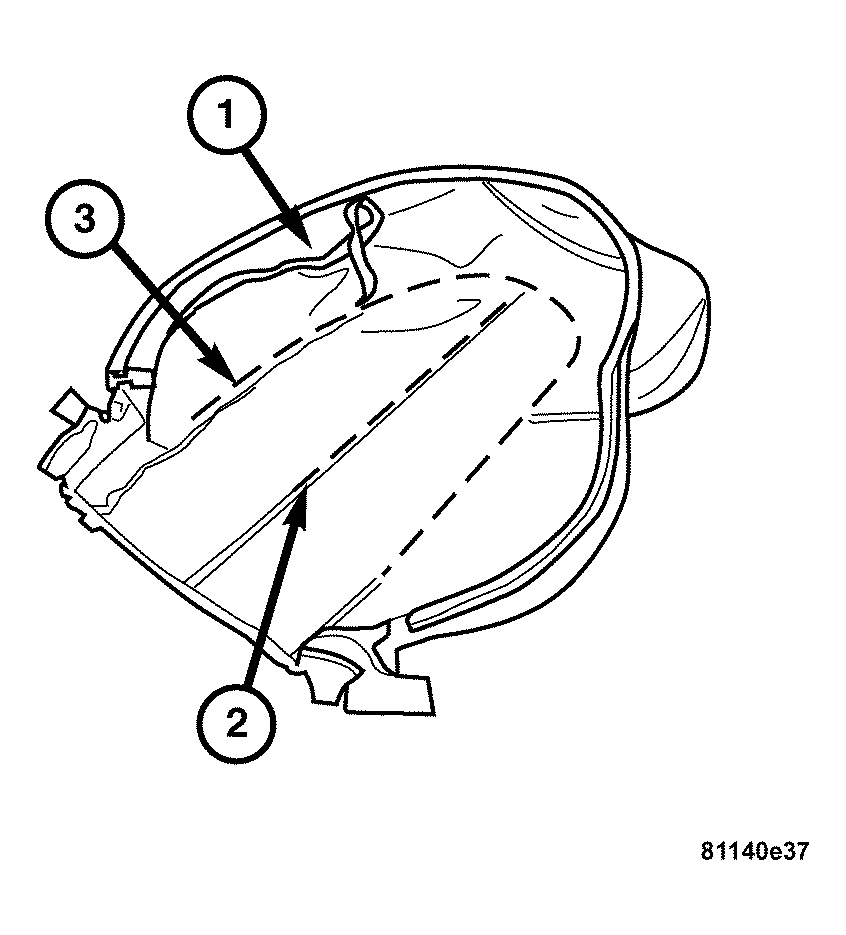

    Fig 5: Removing/Installing Upholstery Wires
    GC0033338Courtesy of CHRYSLER LLC
  9. Pull the upholstery wires (2) out of the fabric sleeves (3) in the cover (1).

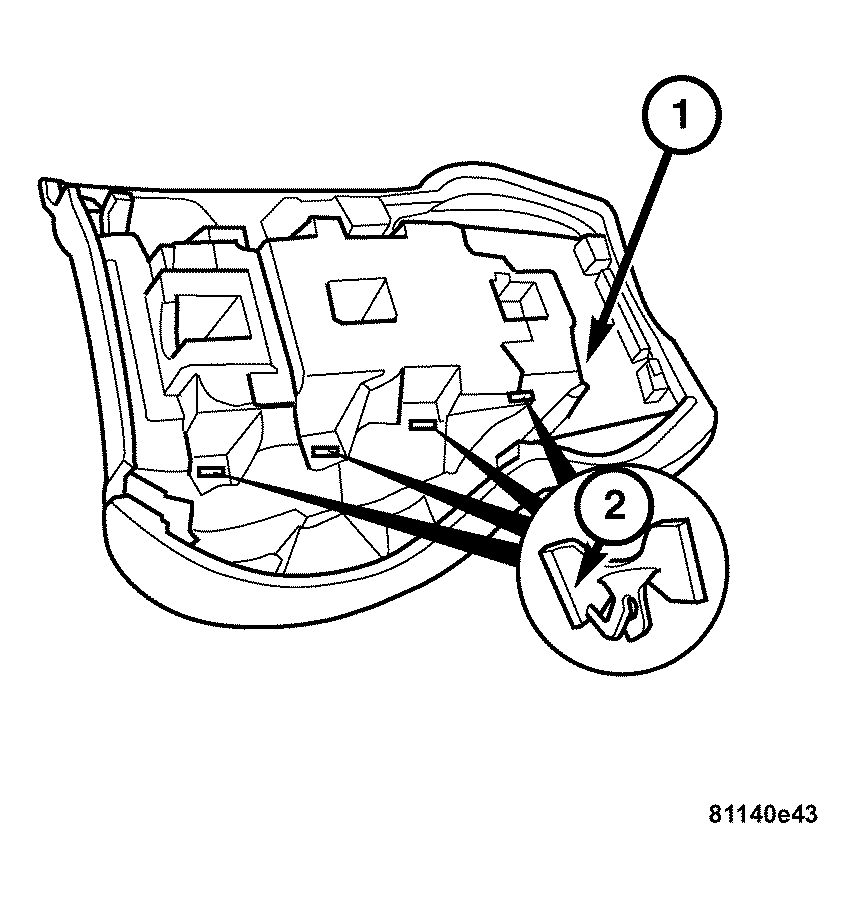

    Fig 6: Removing/Installing Upholstery Clips
    GC0033339Courtesy of CHRYSLER LLC
  10. Remove the upholstery clips (2) on the rear of the foam rubber pad (1).
