Body - Interior & Exterior (Service Information): Hood: Latch: Removal

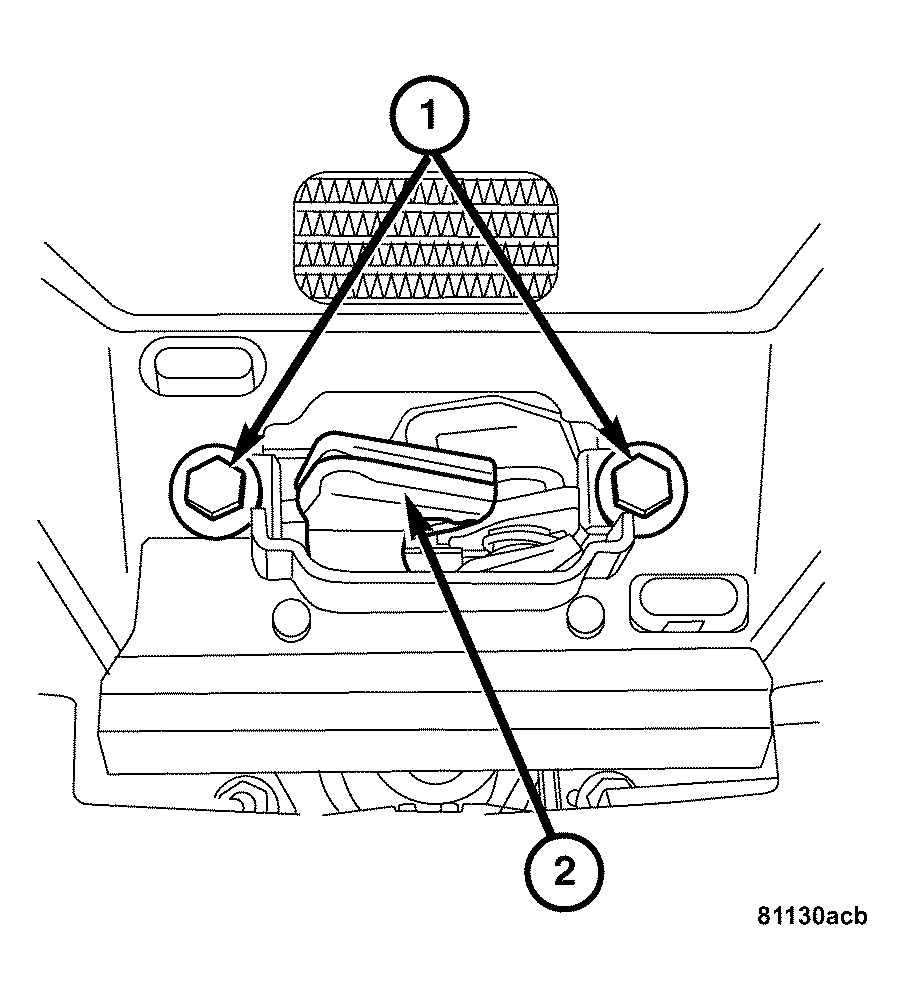

Fig 1: Removing/Installing Hood Latch Assembly

Courtesy of CHRYSLER LLC

1. Open the hood.
2. Remove the bolts (1) and then remove hood latch (2) lower section.

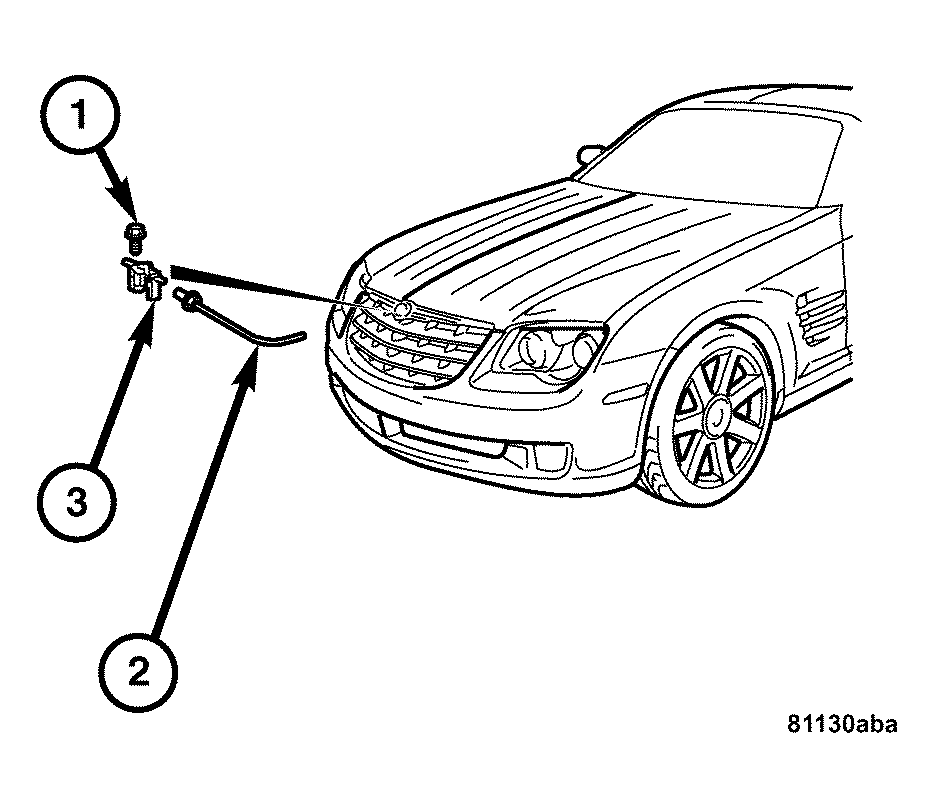

   Fig 2: Removing/Installing Hood Latch Components

   Courtesy of CHRYSLER LLC
3. Remove the hood pull cable (2) from the hood striker (3).
   NOTE: Mark installation position of the hood catch upper section on the hood.
4. Remove the hood latch (3).
