Latch Striker: Removal

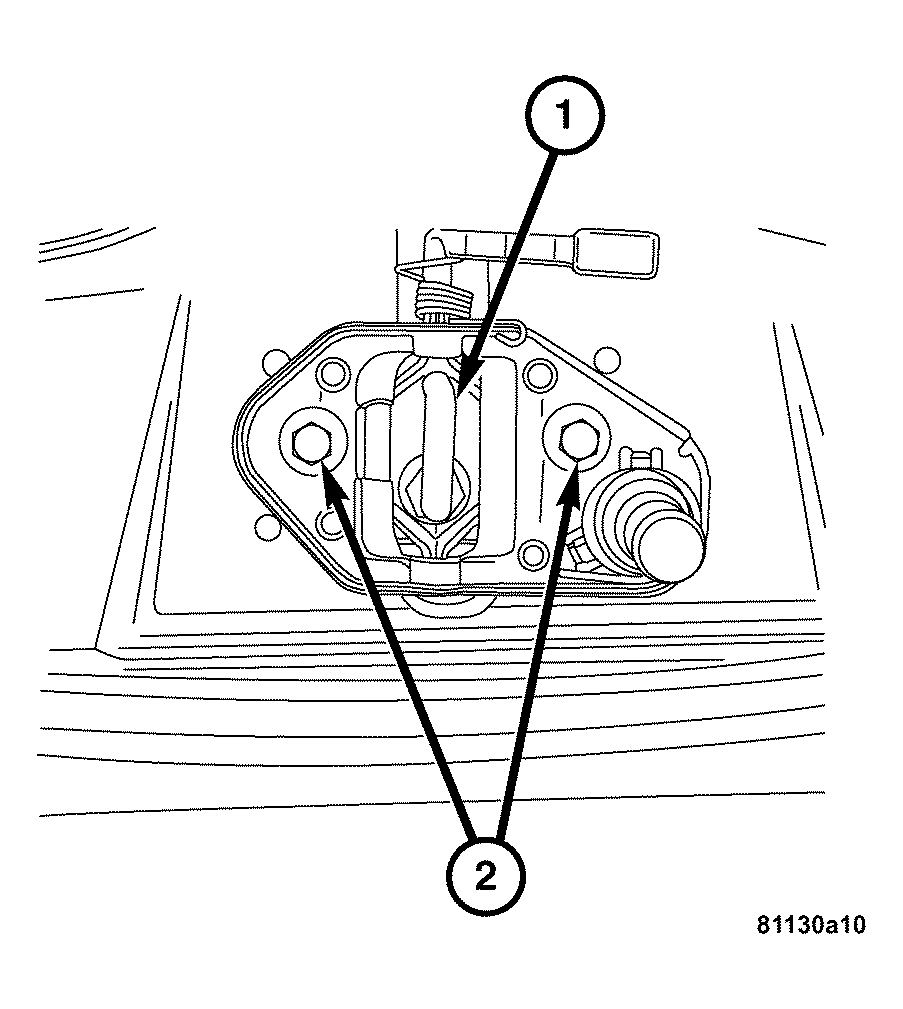

Fig 1: Removing/Installing Latch Striker
GC0033244Courtesy of CHRYSLER LLC
  1. Remove the two bolts (2) attaching the latch striker (1) to the hood.
  2. Remove the latch striker (1) from the hood.
