Latch Release Cable: Removal

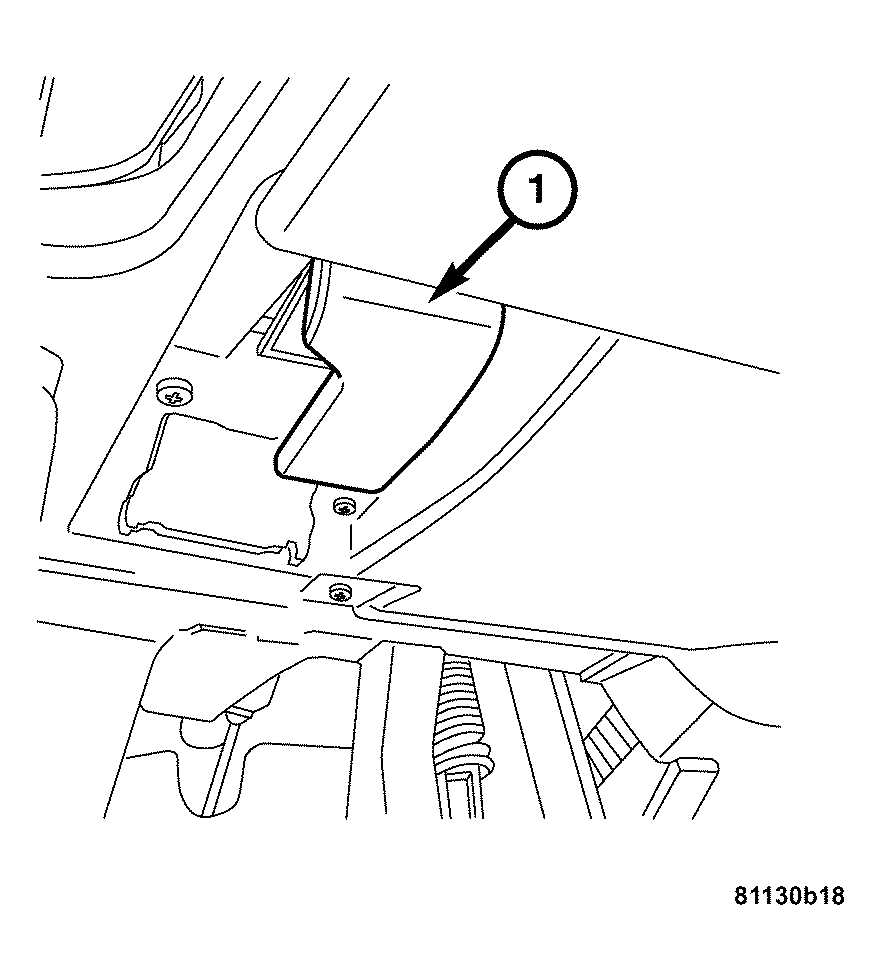

Fig 1: Identifying Hood Opening Handle
GC0033242Courtesy of CHRYSLER LLC
  1. Open the hood and move it to the upright position.
  2. Remove the screw on the pull handle (1).
  3. Pull the handle (1) out of the arresting mechanism in the cover and then remove the hood pull cable from the handle (1).

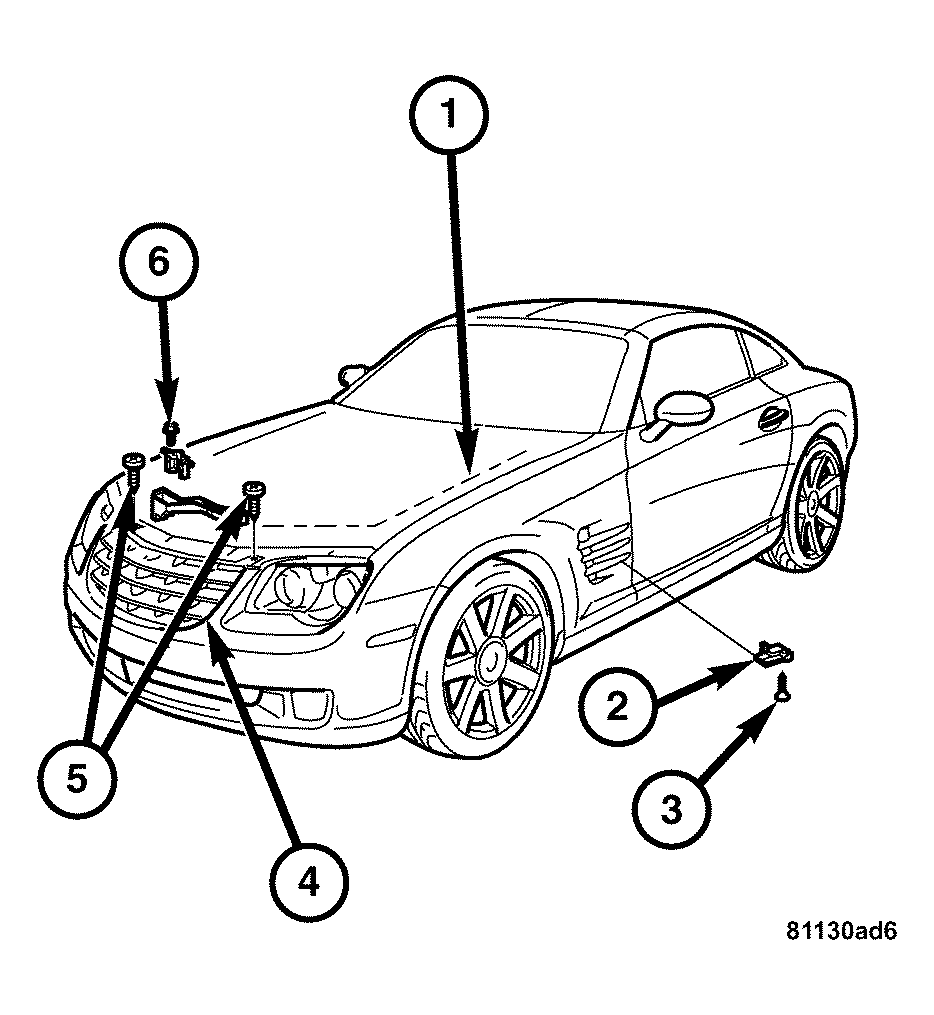

    Fig 2: Identifying Latch Release Cable Components
    GC0033248Courtesy of CHRYSLER LLC
  4. Remove the cable grommet from the bulkhead just below the fuse box.
  5. Remove the upper frame cross member.
  6. Remove the clip on the frame cross member.
  7. Remove the cover.
  8. Remove the hood latch (6).
  9. Remove the hood latch release cable (1) from between the headlamp and the upper frame cross member.
