Body - Interior & Exterior (Service Information): Hood: Hinge: Removal

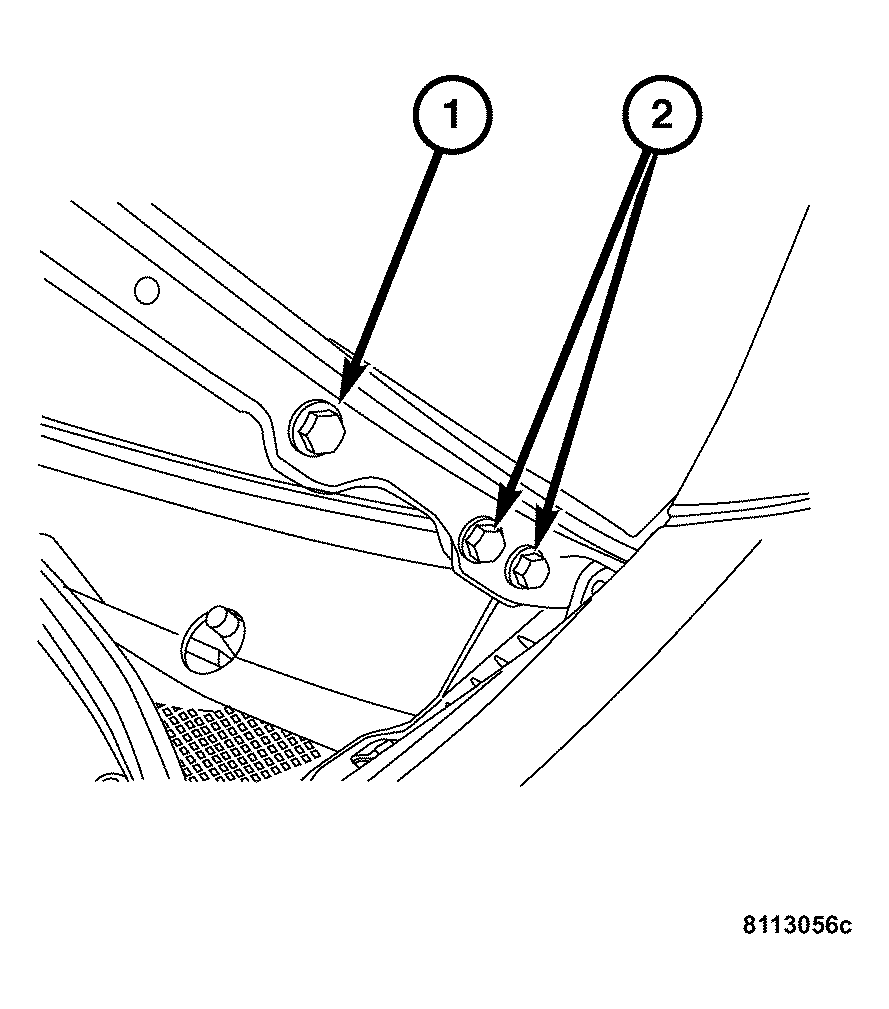

Fig 1: Identifying Upper & Lower Hood Hinge Bolts

Courtesy of CHRYSLER LLC

1. Remove the hood from the hinge by removing the upper bolts (1) then the lower bolts (2). See REMOVAL .

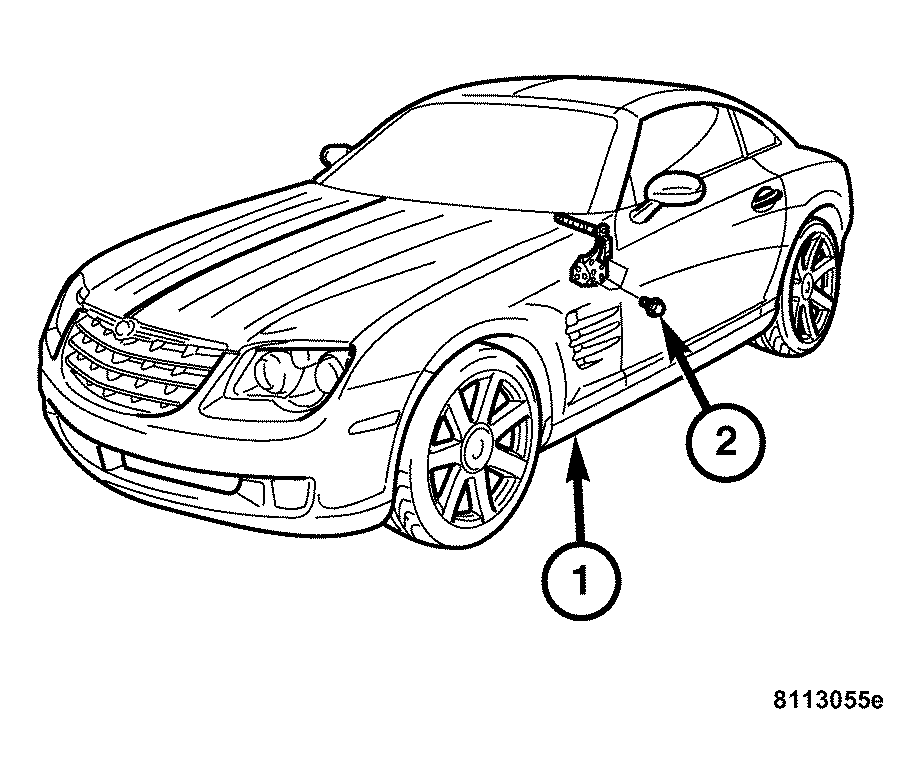

   Fig 2: Identifying Inner Front Fender & Bolts

   Courtesy of CHRYSLER LLC
2. Remove the inner front fender (1).
3. Mark the position of the hood hinge on the inner panel.
4. Remove the bolts (2) and then remove the hood hinge.
