Gas Prop: Removal

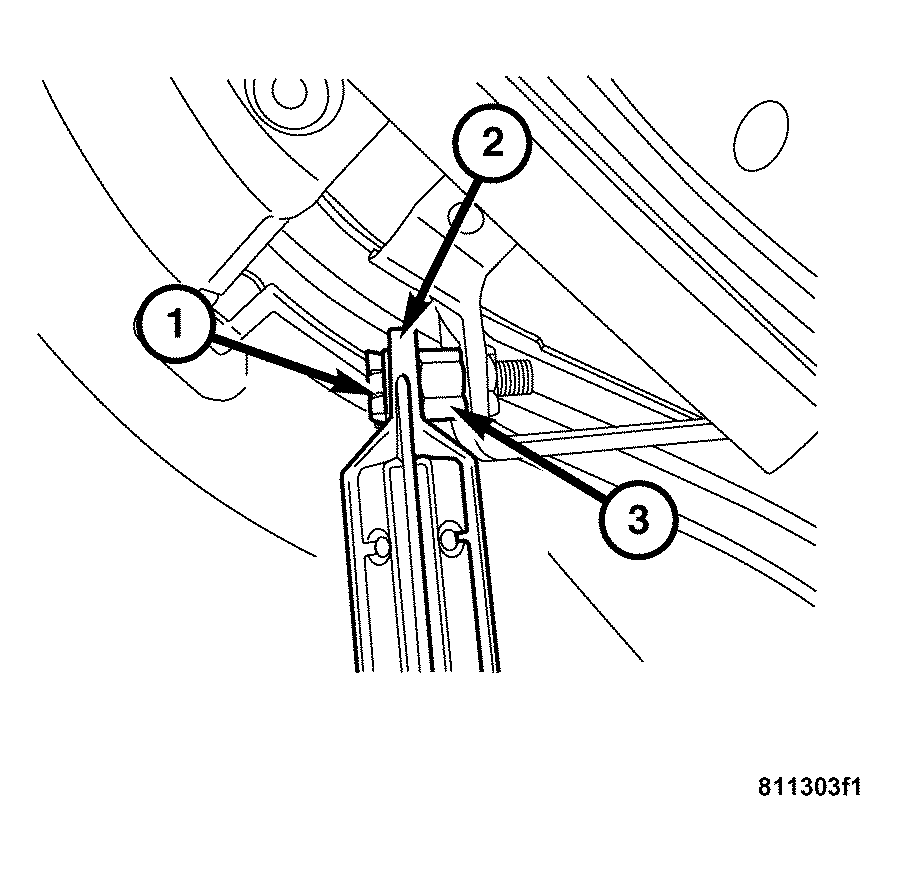

Fig 1: Removing/Installing Gas Prop Components
GC0033239Courtesy of CHRYSLER LLC
  1. Open the hood.
  2. Support the hood with a suitable prop device.
  3. Remove the gas prop lock (1) on the upper end (2).

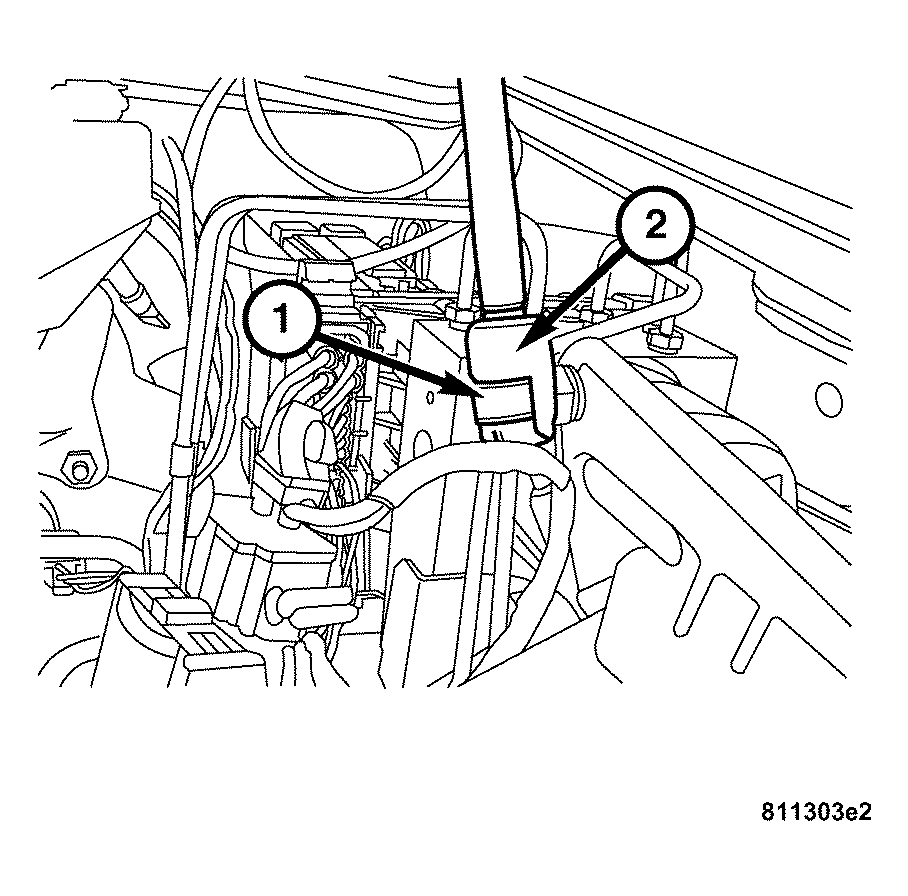

    Fig 2: Identifying Gas Prop Lock & Lower End
    GC0033238Courtesy of CHRYSLER LLC
  4. Remove the gas prop lock (1) on the lower end (2).
  5. Remove gas prop from vehicle.
