Gas Prop: Removal

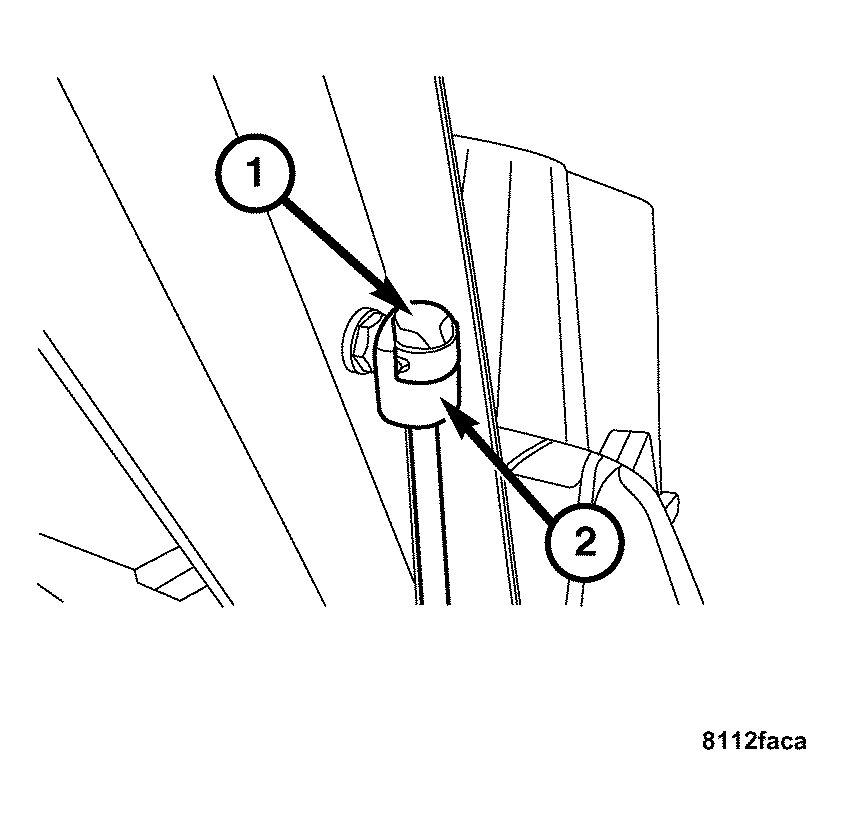

Fig 1: Identifying Gas Prop Lock Cap & Gas Prop
GC0033152Courtesy of CHRYSLER LLC
  1. Open the rear liftgate.
  2. Support the liftgate with a suitable propping device.
  3. Remove the gas prop lock cap (1) on the upper end. Then pull the gas prop (2) off of its mounting point.
    Fig 2: Removing/Installing Gas Prop
    GC0033151Courtesy of CHRYSLER LLC
  4. Remove the gas prop lock cap (1) on the lower end. Then pull the gas prop (2) off of its mounting point.
