Manually Raise Top

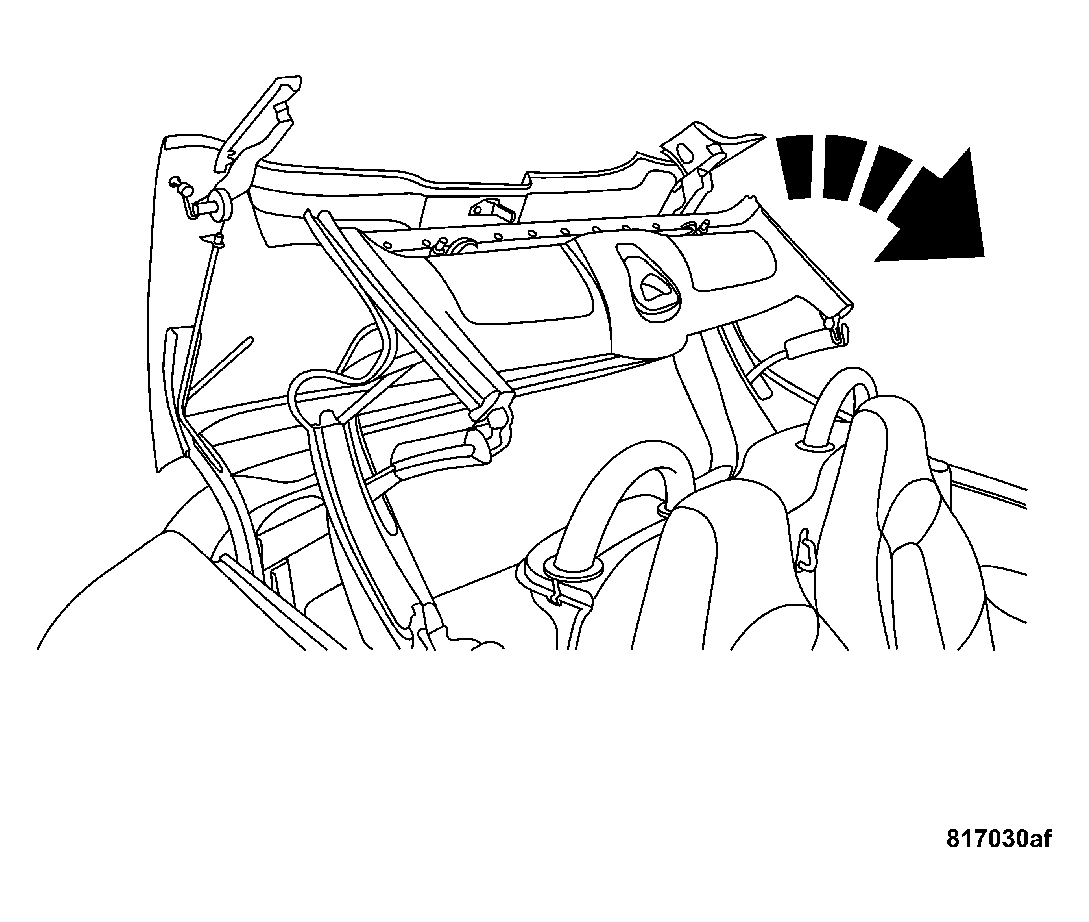

Fig 1: Unlocking Tonneau Cover

Courtesy of CHRYSLER LLC

Lower the windows and open the doors.
Insert the multifunction tool (supplied with vehicle) into gap in front of the tonneau cover and rotate counterclockwise until the tonneau cover is released.
Lift the tonneau cover up and support in the vertical position.

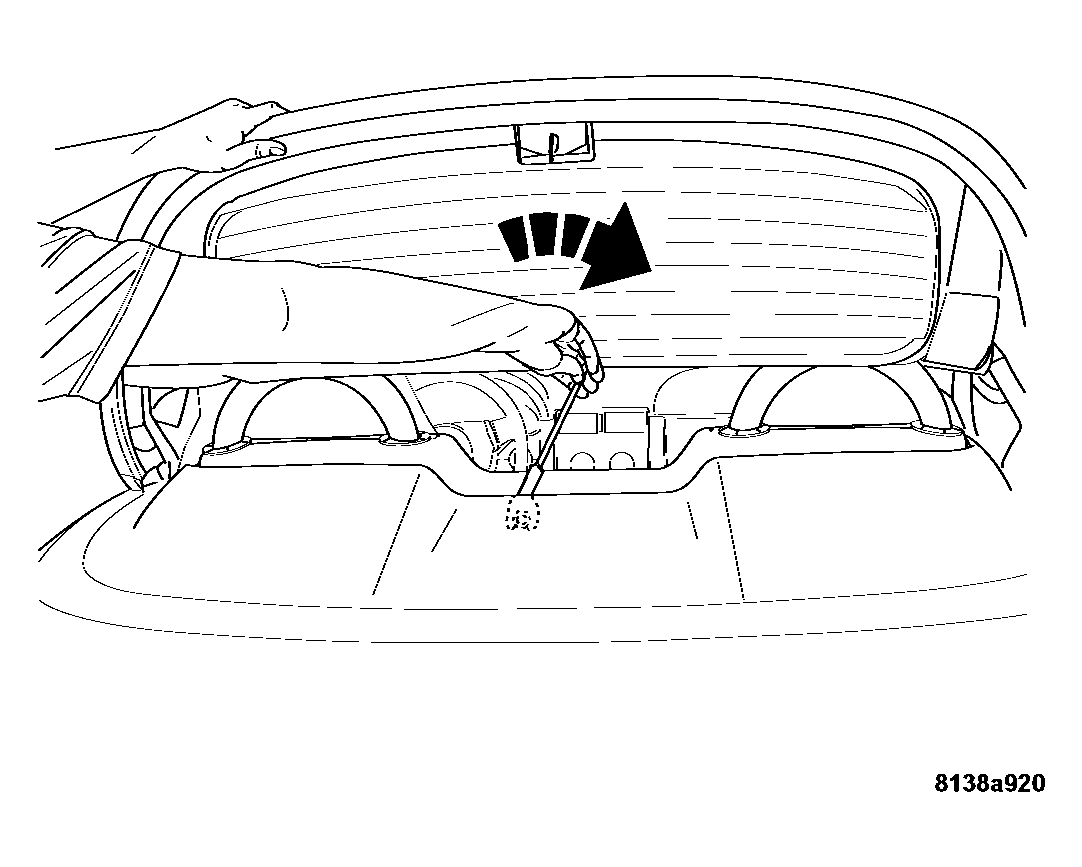

Fig 2: Pulling Up Top
Courtesy of CHRYSLER LLC

NOTE: Do not let go of the convertible top as it may fall back into the cargo compartment area.
Pull up on the upper section of the convertible top to move it out of its storage area until top is fully extended.

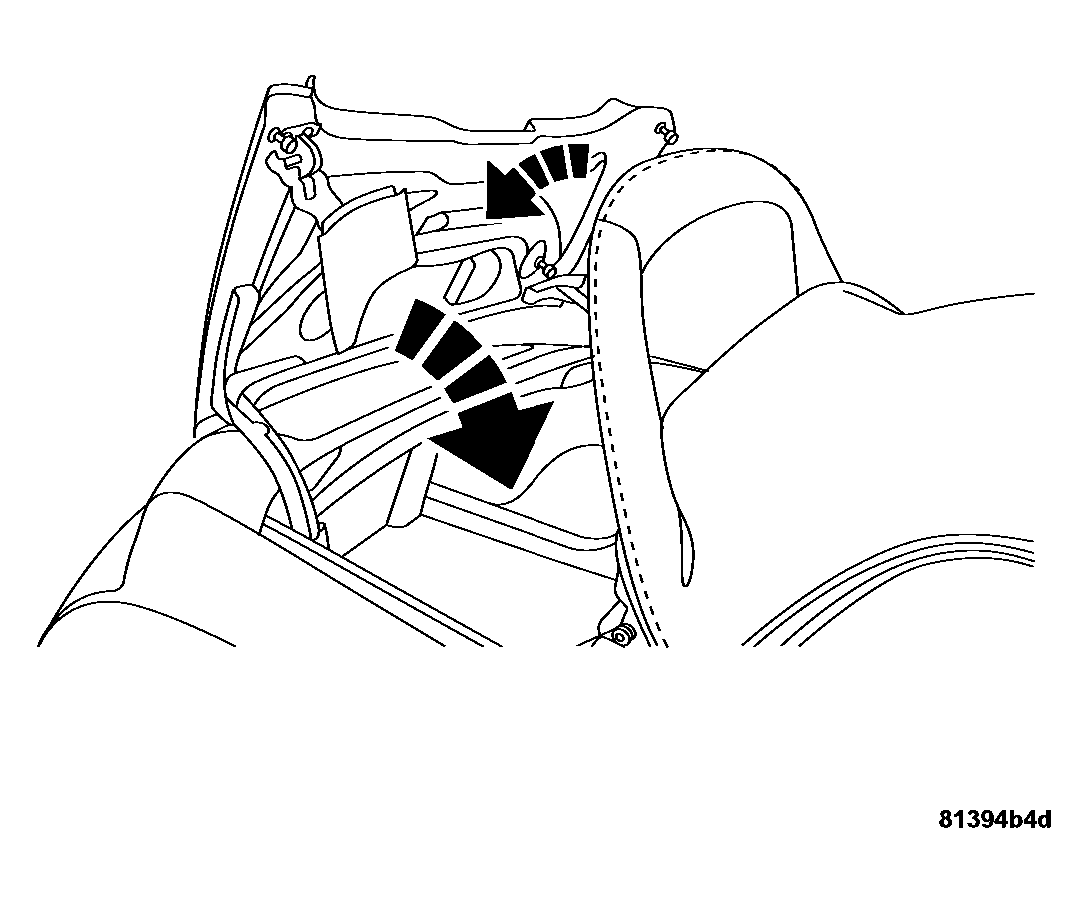

Fig 3: Lower Tonneau Cover
Courtesy of CHRYSLER LLC
Lift the rear bow until it is in its vertical position.
CAUTION: The tonneau cover flaps will automatically extend while lowering the tonneau cover. The flaps can be damaged if not allowed to extend automatically.
Lower the tonneau cover.

Fig 4: Locking Tonneau Cover
Courtesy of CHRYSLER LLC
Insert the multifunction tool (supplied with vehicle) into gap in front of the tonneau cover and rotate clockwise until the tonneau cover is locked.

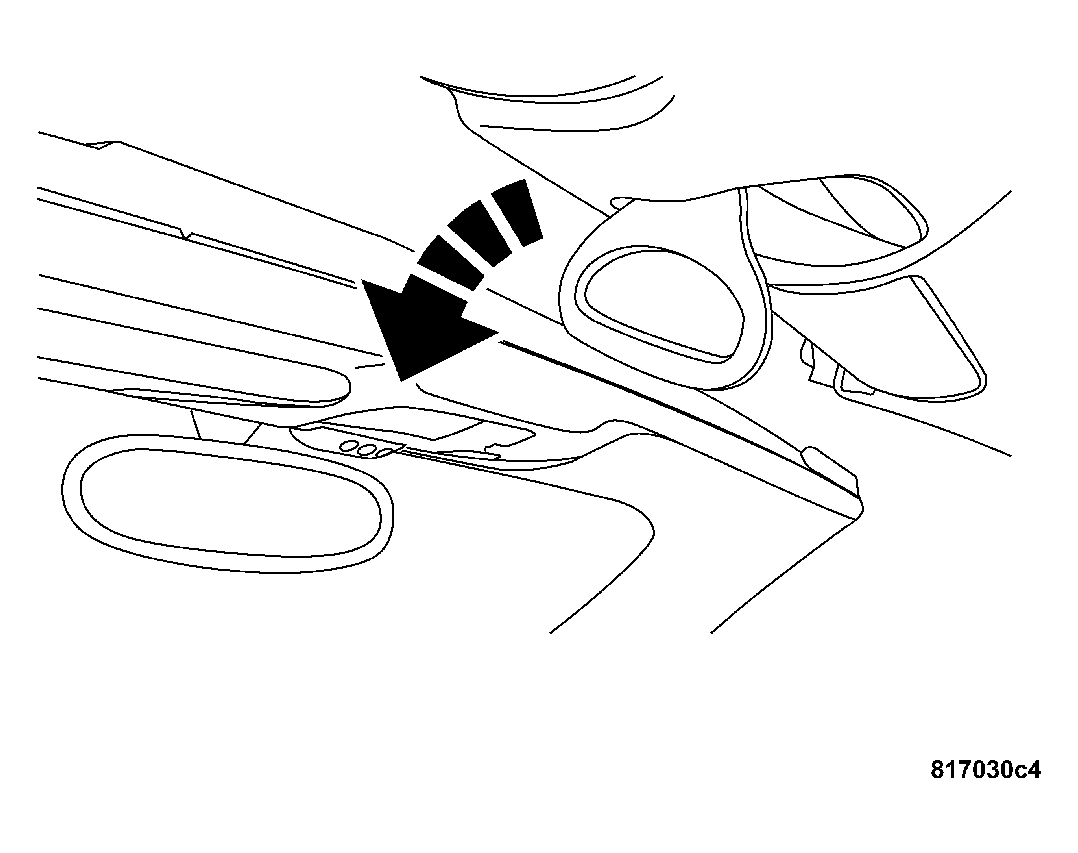

Fig 5: Lowering Rear Bow Into Tonneau Cover
Courtesy of CHRYSLER LLC
Lower the rear bow into the tonneau cover.

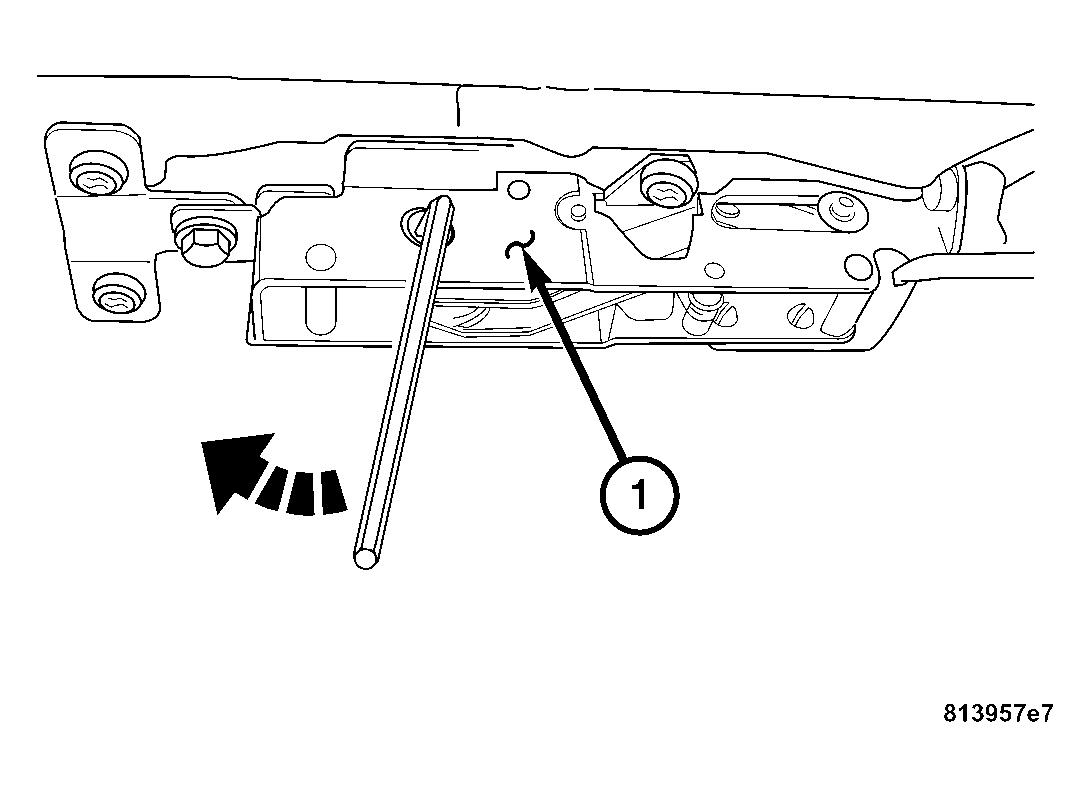

Fig 6: Unlocking/Locking Rear Bow
Courtesy of CHRYSLER LLC
Open the decklid and lock the rear bow by inserting an Allen wrench into the rear bow latch (1) and turning counterclockwise.

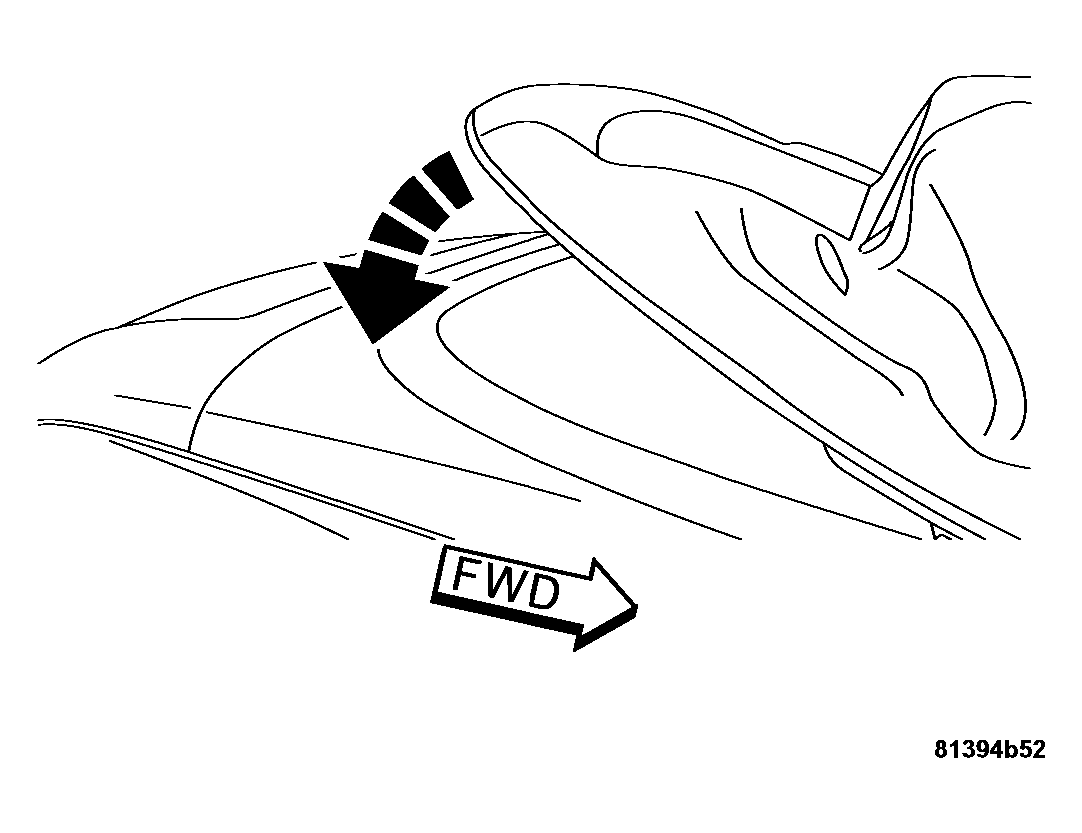

Fig 7: Pulling Top Down
Courtesy of CHRYSLER LLC
Fold down the release handle.
Turn the release just past one quarter turn clockwise and pull the convertible top frame carefully down until it meets the windshield header attachment points.

Fig 8: Locking Top
Courtesy of CHRYSLER LLC
Turn the release handle counterclockwise to the stop in order to lock the convertible top.
Fold the latch handle up. The convertible top is now locked onto the windshield header.

Fig 9: Locking Rear Bow
Courtesy of CHRYSLER LLC
Open the decklid and lock the rear bow by inserting an Allen wrench into the rear bow latch (1) and turning clockwise.
