Manually Lower Top

Fig 1: Unlocking Top

Courtesy of CHRYSLER LLC

NOTE: The pressure from the top hydraulic system must be relieved before attempting to manually lower top. See STANDARD PROCEDURE .

NOTE: Make sure the rear cargo compartment divider is secured in its vertical position.

Lower the windows and open the doors.
Unlock the top from the windshield header by pulling the handle down and turning it clockwise just past a quarter turn.

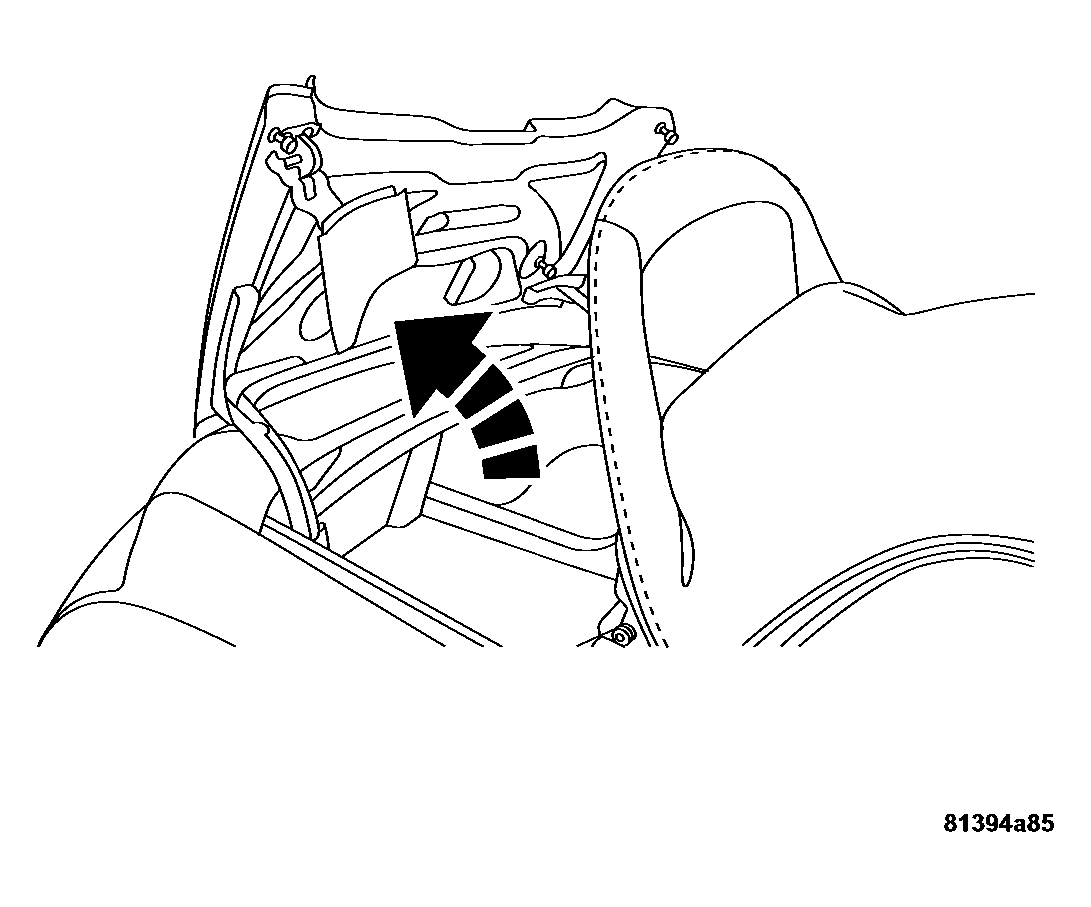

Fig 2: Pushing Up On Top
Courtesy of CHRYSLER LLC
Push up on the convertible top release handle to create a gap between the header and top of approximately 8 inches (200 mm). Once the top is free, rotate the release handle back to its stored position.

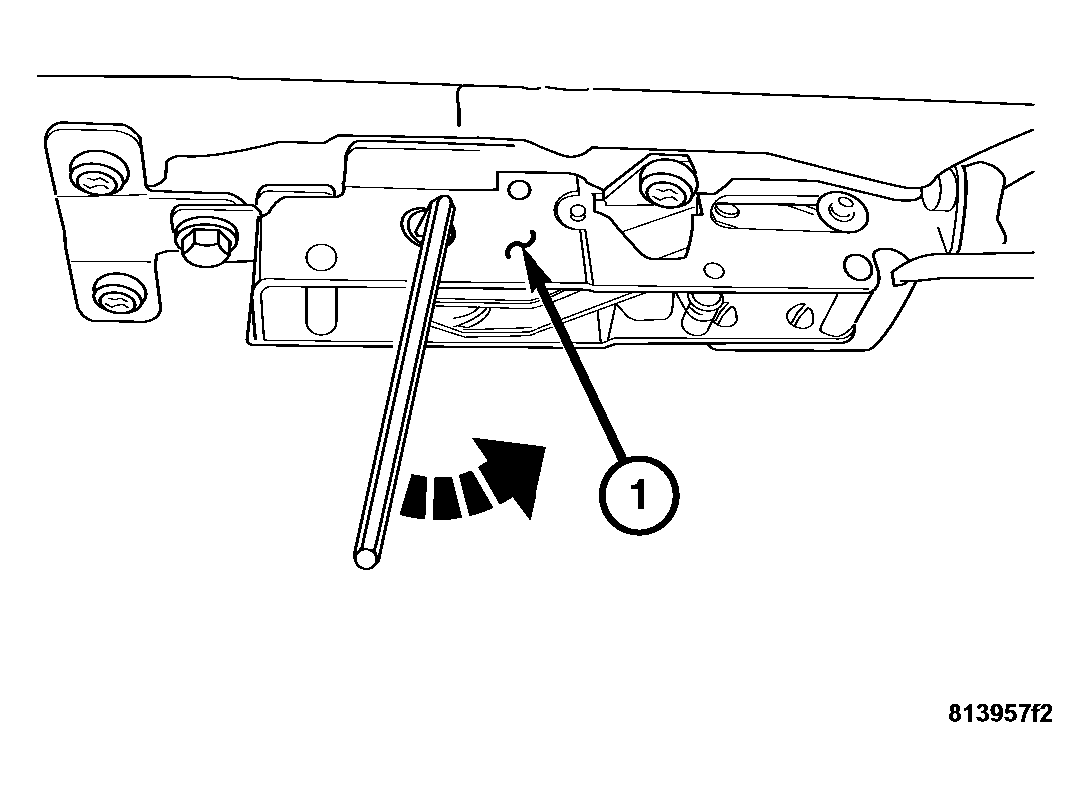

Fig 3: Unlocking/Locking Rear Bow
Courtesy of CHRYSLER LLC
Open the decklid and unlock the rear bow by inserting an Allen wrench into the rear bow latch (1) and turning counterclockwise.

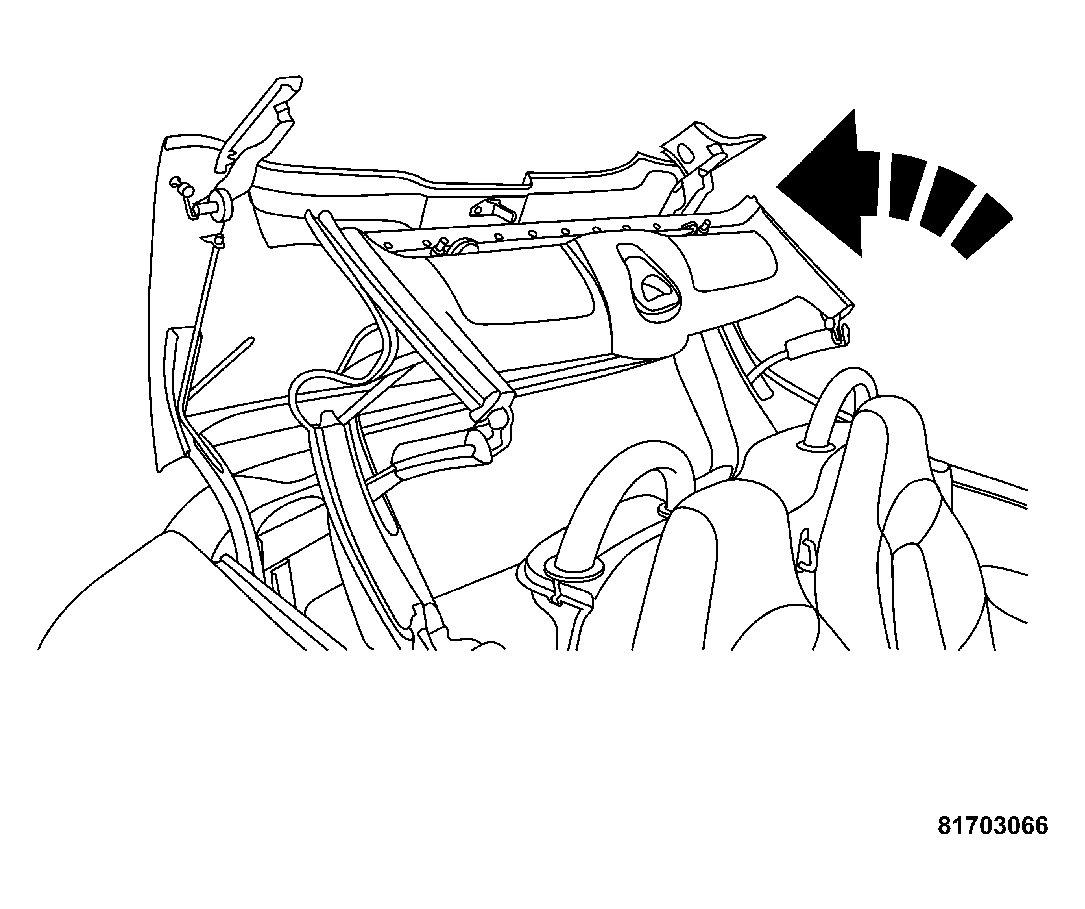

Fig 4: Lifting Rear Bow
Courtesy of CHRYSLER LLC
Close the decklid.
Lift up on the rear bow and secure in the vertical position.

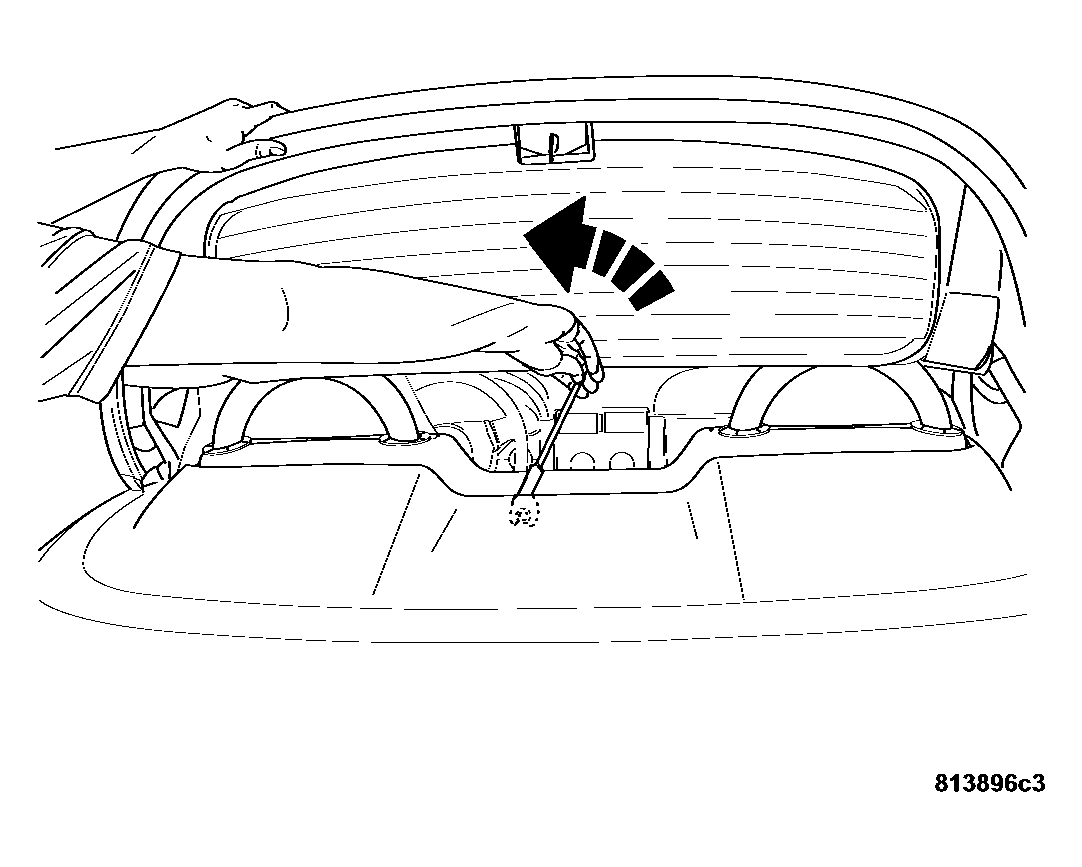

Fig 5: Inserting Multifunction Tool
Courtesy of CHRYSLER LLC
Insert the multifunction tool (supplied with vehicle) into gap in front of the tonneau cover and rotate counterclockwise until the tonneau cover is released.

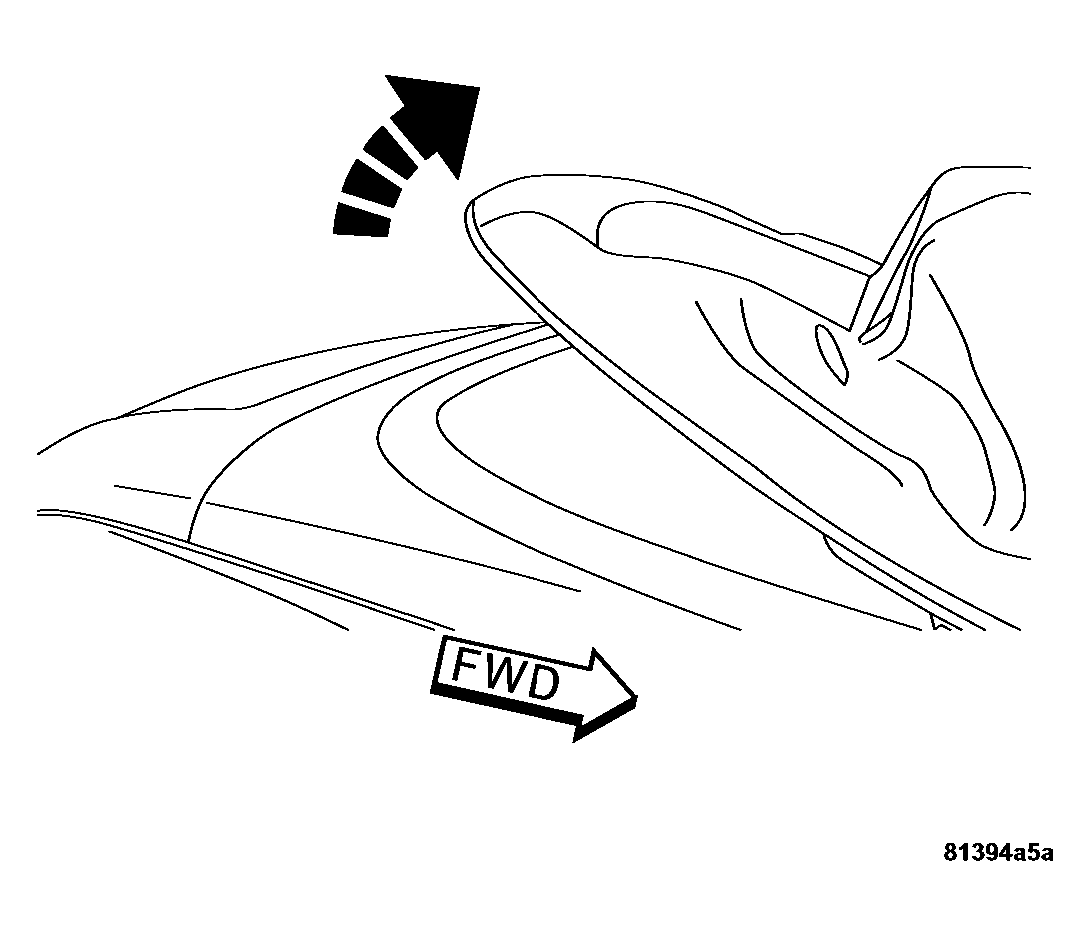

Fig 6: Lifting Tonneau Cover Up
Courtesy of CHRYSLER LLC
Lift the tonneau cover up and support in the vertical position.

Fig 7: Lowering Top Assembly
Courtesy of CHRYSLER LLC
Lower the top assembly into the top storage compartment.
Lower the tonneau cover.

Fig 8: Locking Tonneau Cover
Courtesy of CHRYSLER LLC

NOTE: If the top is being serviced, do not lock the tonneau cover at this time.
Insert the multifunction tool (supplied with vehicle) into gap in front of the tonneau cover and rotate clockwise until the tonneau cover is locked.
