Hydraulic Line Disconnection

Fig 1: Identifying Hydraulic Line Retaining Clip

Courtesy of CHRYSLER LLC

NOTE: The hydraulic lines to the hydraulic cylinders must be replaced in pairs.

Slide the hydraulic line retaining clip (2) out of the groove in the hydraulic cylinder.

Fig 2: Removing Hydraulic Line
Courtesy of CHRYSLER LLC
Remove the hydraulic line (1) from the hydraulic cylinder (3).
NOTE: If necessary, use a small pick to remove the O-ring from the hydraulic cylinder.
Remove the O-ring from the hydraulic cylinder (3).

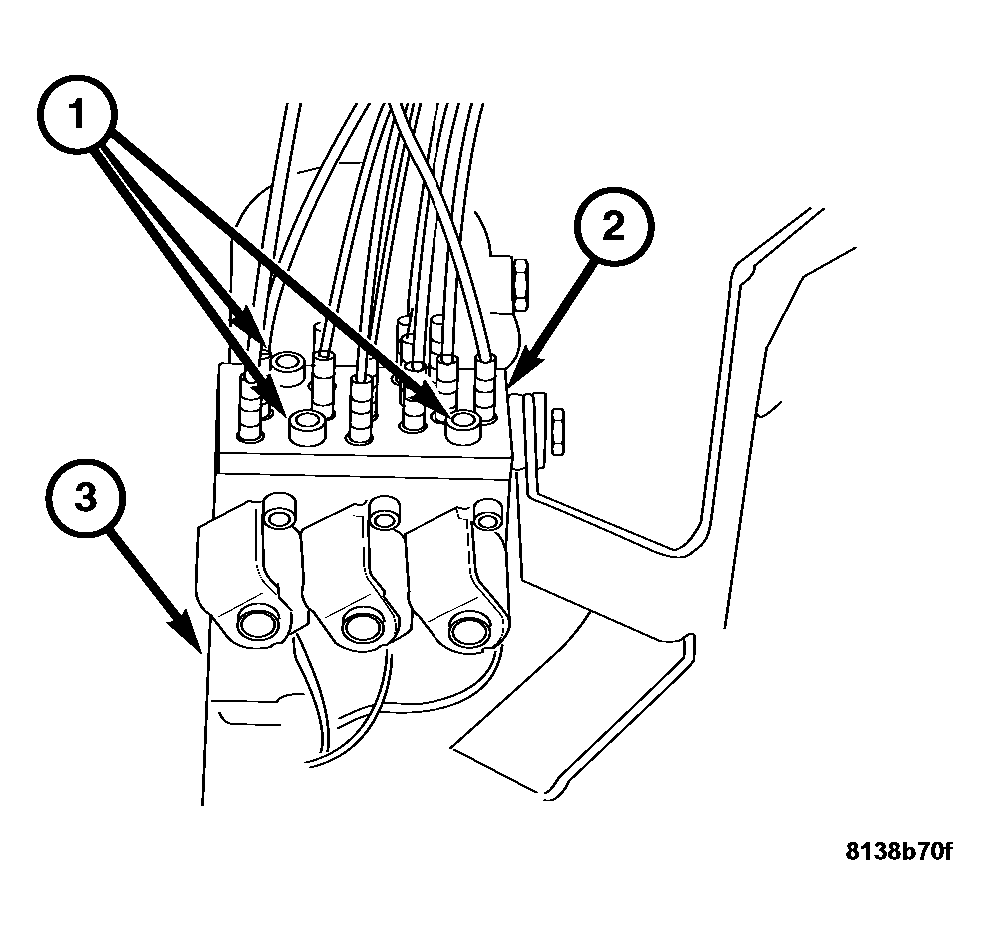

Fig 3: Identifying Hydraulic Lines At Power Top Hydraulic Assembly
Courtesy of CHRYSLER LLC
Remove the bolts (1) from the hydraulic line retaining plate (2).
Carefully separate the hydraulic lines from the power top hydraulic assembly (3).

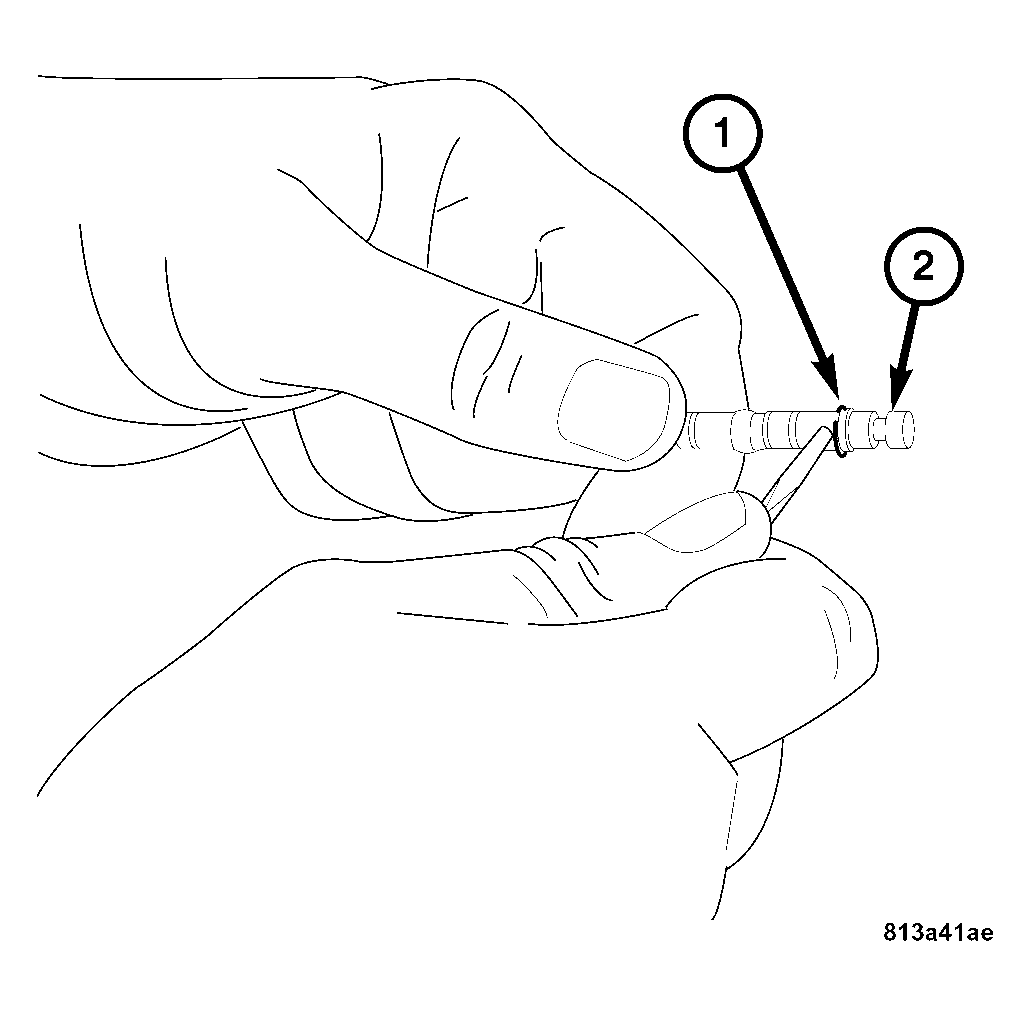

Fig 4: Removing Snap Ring
Courtesy of CHRYSLER LLC
Carefully pry the metal snap ring (1) from the end of the hydraulic line (2).
Slide the hydraulic line out of the retaining plate.
Remove the hydraulic line from the vehicle.
