Door Sill Trim Panel: Removal

Using a fork type prying tool, disengage clips holding door sill trim panel to door sill. See Fig 1 and Fig 2.
Starting at forward end of sill trim panel, pull upward on sill trim panel in order to disengage clips attaching sill trim panel to door opening flange.
Remove door sill trim panel from vehicle.

Fig 1: Door Sill Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOCATING TAB

2 - DOOR SILL TRIM PANEL

3 - DOOR OPENING FLANGE

4 - DOOR SILL

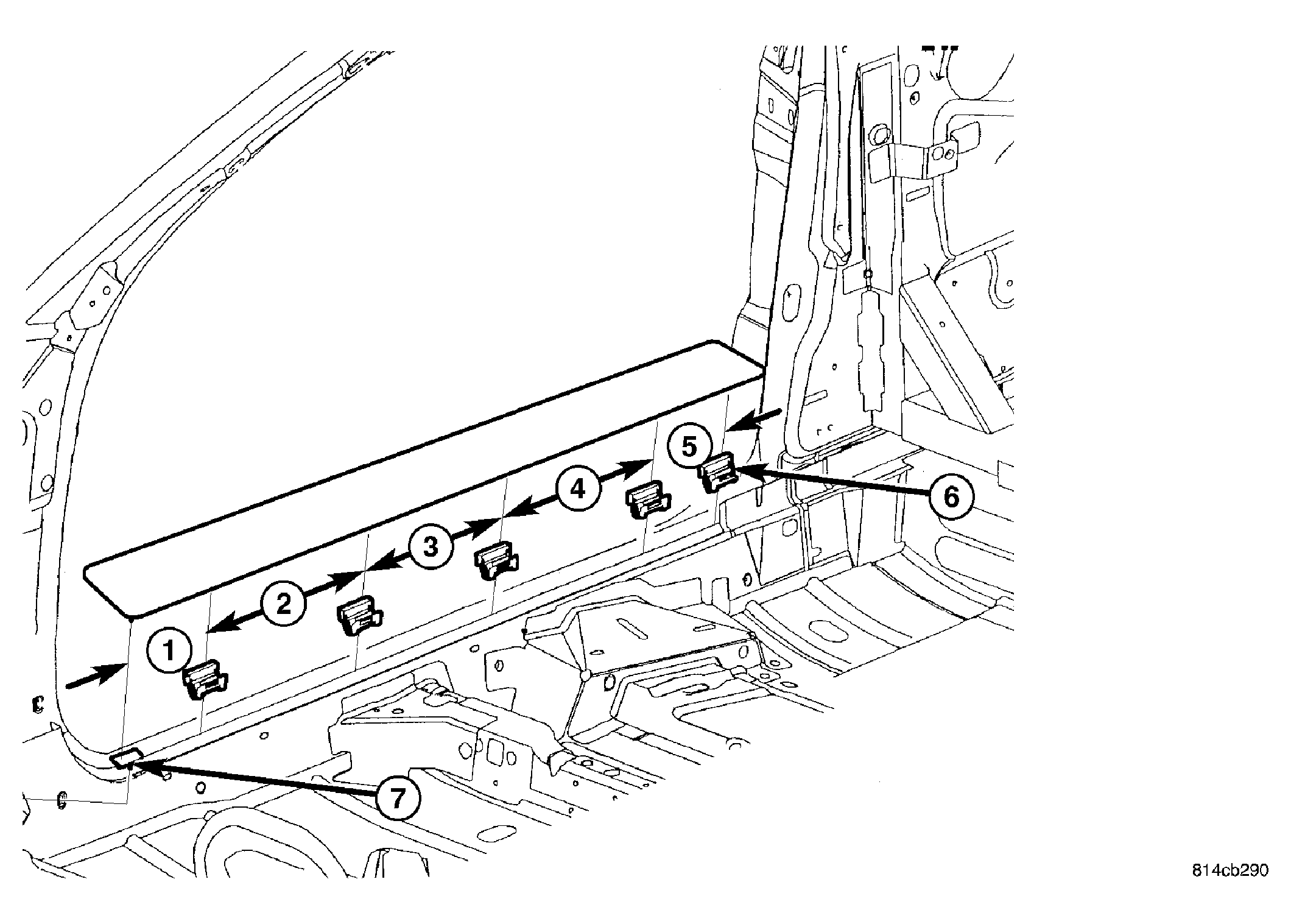

Fig 2: JR-27 Door Sill Trim Panel

Courtesy of DAIMLERCHRYSLER CORP.

1 - (4.0 ins.)

2 - (9.5 ins.)

3 - (9.0 ins.)

4 - (9.0 ins.)

5 - (2.5 ins.)

6 - ATTACHING CLIPS

7 - LOCATOR SLOT
