Front Seat Cushion Side Shields: Removal: Notes

1. Remove seat from vehicle.
2. Remove screws attaching seat cushion side shield to the bottom and side of seat cushion. See Fig 1 and Fig 2.
3. Remove shield from seat
4. Disconnect switch wire connectors, if equipped.
5. Remove seat switches, if equipped.

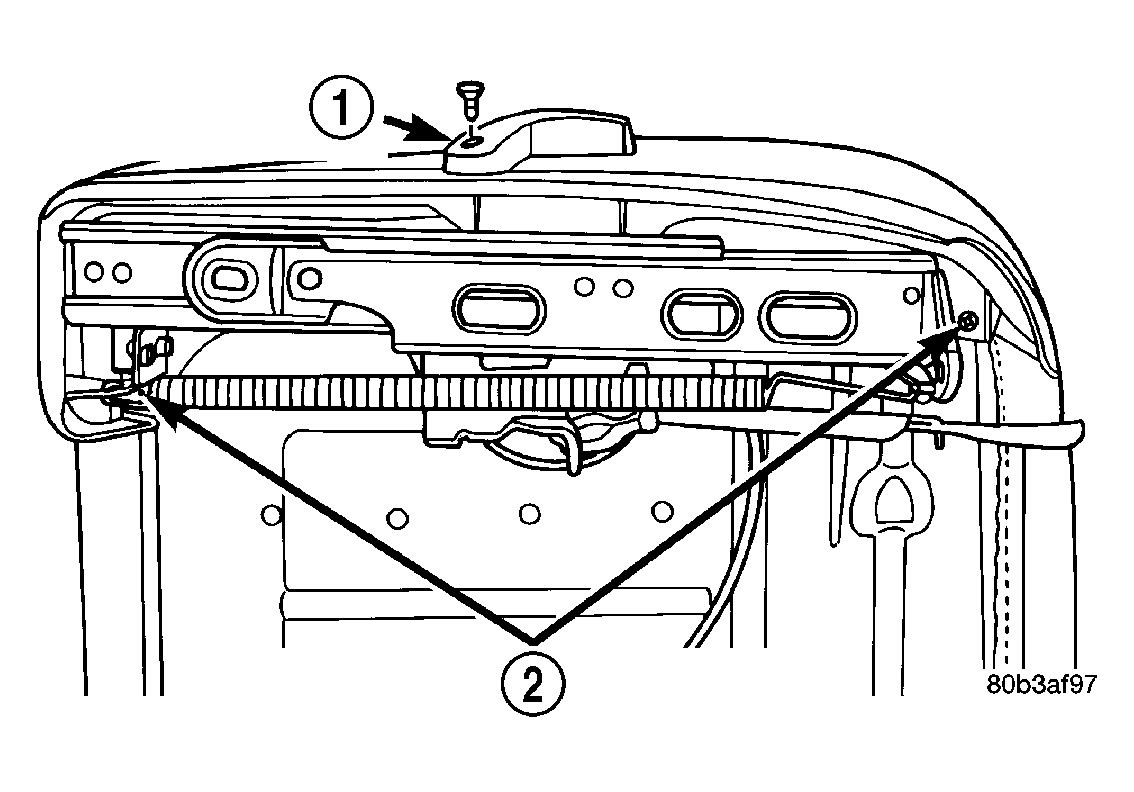

Fig 1: Bottom View of Side Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - RECLINER HANDLE AND FASTENER

2 - SIDE SHIELD FASTENERS

Fig 2: Side View of Side Shield

Courtesy of DAIMLERCHRYSLER CORP.

1 - SIDE SHIELD FASTENERS
