Front Seat Back Cover: Removal: Notes

  1. Remove seat from vehicle.
  2. Remove head restraint.
  3. Remove front seat back.
  4. Remove lumbar support handle, if equipped.
  5. Disengage the J-strap retainer. See Figure.
  6. Remove hog rings attaching foam pad to back frame. See Fig 1.
  7. Roll seat back cover up to the next hog rings and remove hog rings.
  8. For bonded seat back cover separate frame from bonded cover and pad.
  9. Roll cover to top of cushion and remove head restraint sleeve guides. Do not reuse head restraint sleeve guides.
  10. Remove cover from seat back.

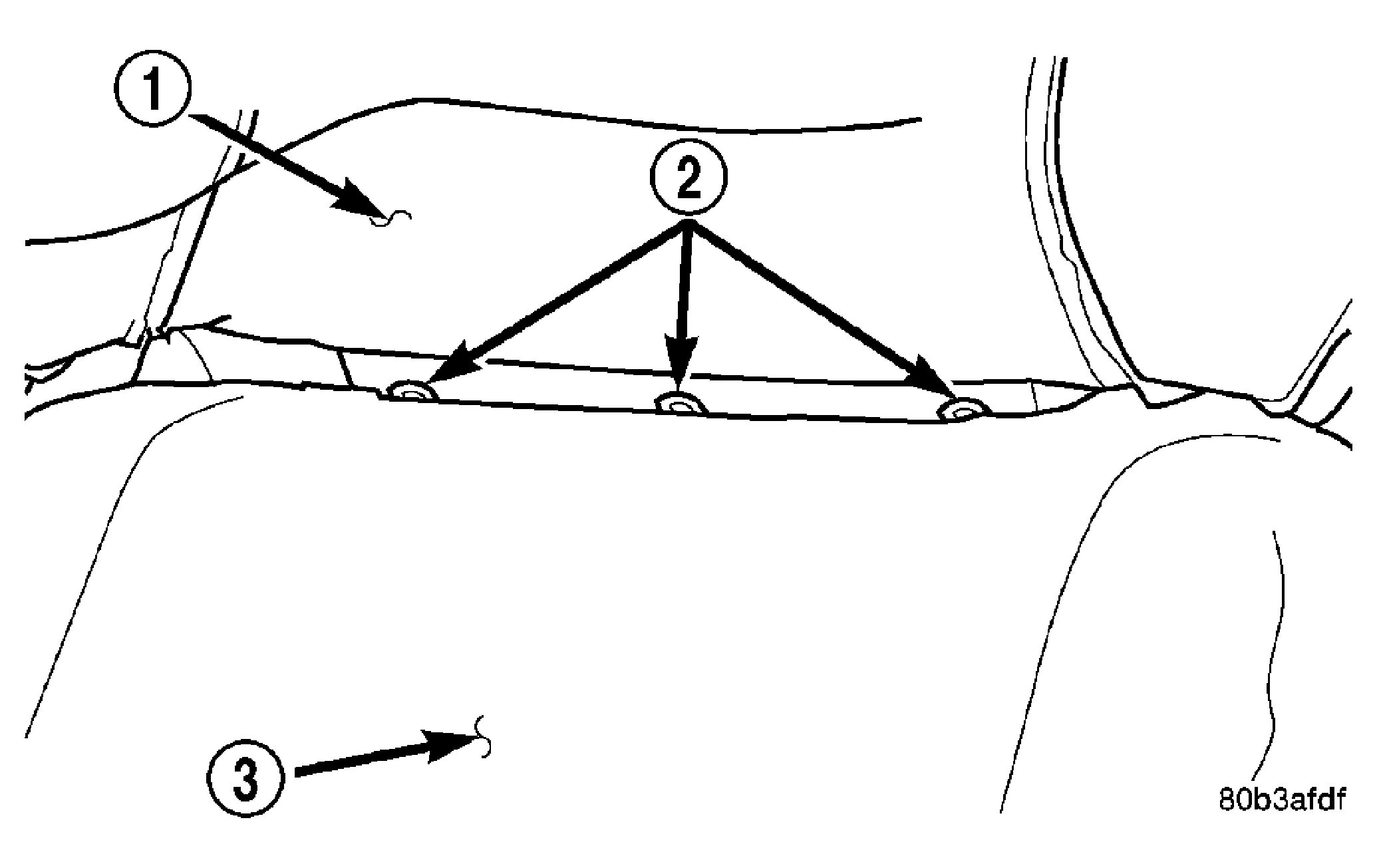

Fig 1: Front Seat Back Hog Rings
GC0020788Courtesy of DAIMLERCHRYSLER CORP.
1 - SEAT COVER
2 - HOG RINGS
3 - CUSHION
