Adjustment - Balance Link
WARNING:
DO NOT PLACE HANDS OVER GAPS IN MOVABLE CONVERTIBLE TOP COMPONENTS DURING SERVICING. PERSONAL INJURY CAN RESULT.
- Remove quarter trim panel to gain access to balance link bolts.

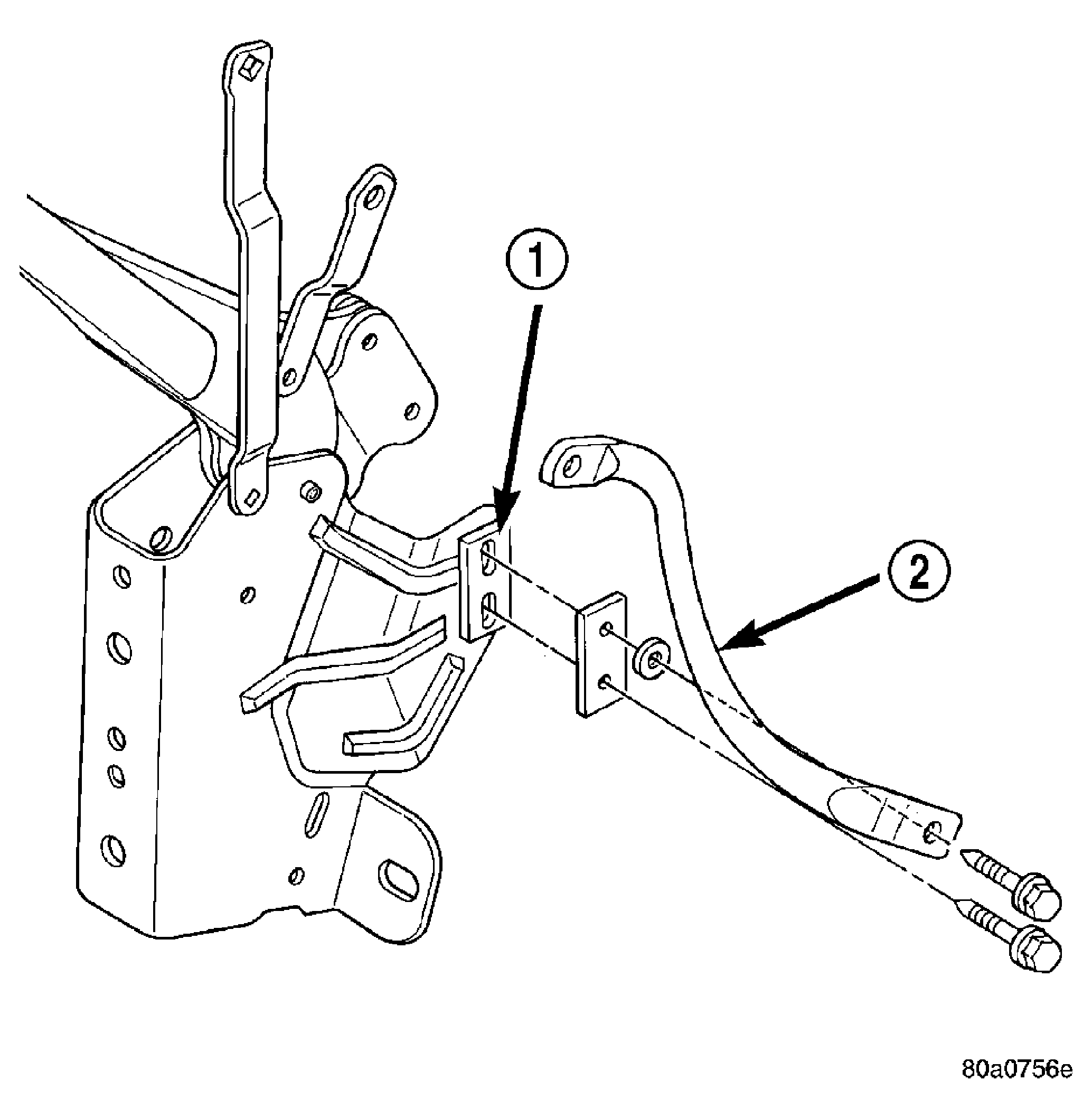

- With the top latched in up position, loosen both bolts just enough to permit moving link up or down. See Fig 1.
- Push upward in the area of the front to center rail joint. Push rails up by hand as far as possible.
- With the balance link adjusting bolts loosened, allow the balance link to seek proper position.
- Tighten top link bolt while rail is held in position to 11.7 to 17.7 N.m (105 to 155 in. lbs.) torque.
- Tighten bottom link bolt while rail is held in position to 22 to 32 N.m (192 to 288 in. lbs.) torque.
| 1 - SERRATED PLATE |
| 2 - BALANCE LINK |
