Shift Crossover Shaft Bushing: Removal

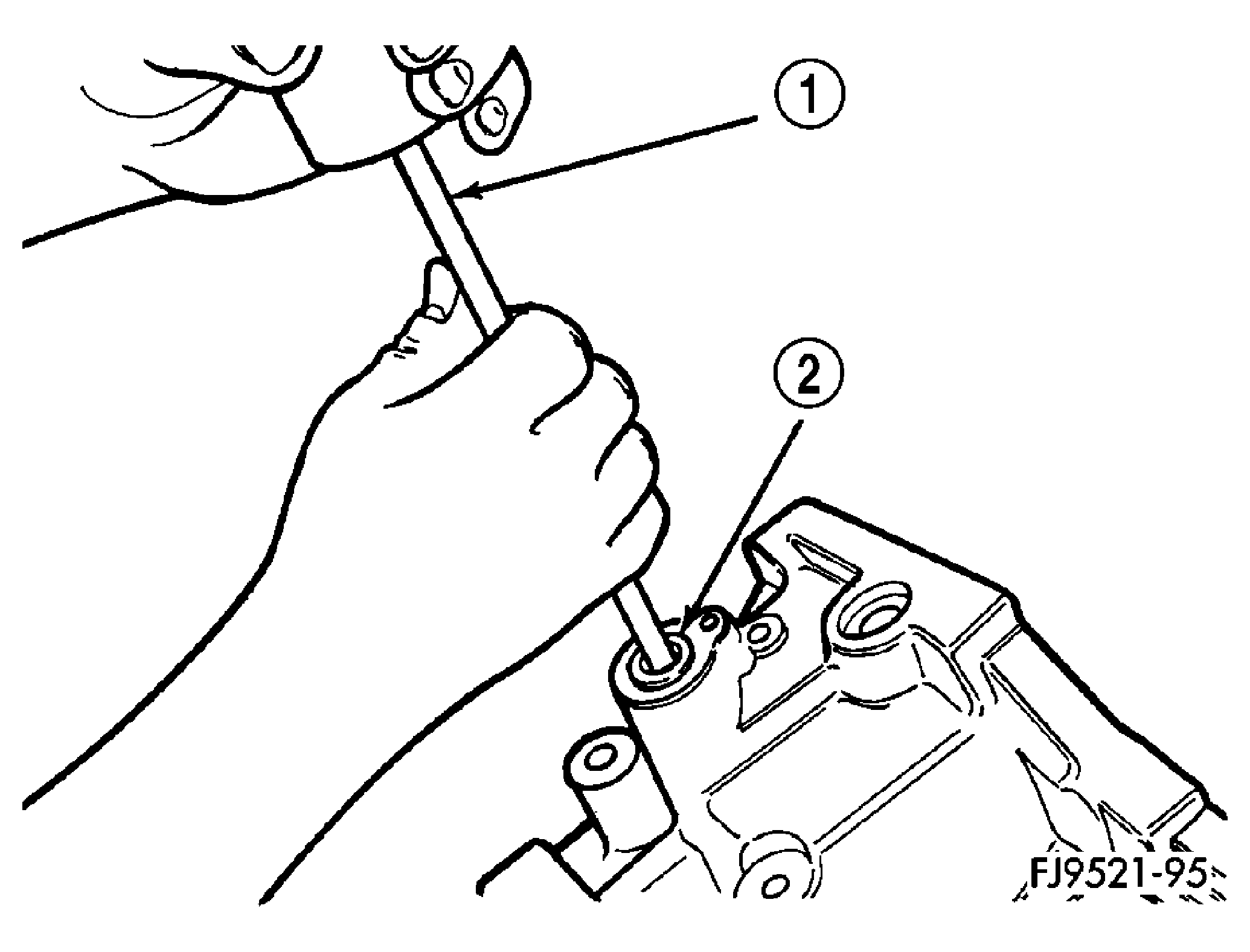

Fig 1: Crossover Shaft Bushing Removal

GC0020177

Courtesy of DAIMLERCHRYSLER CORP.

1 - SLIDE HAMMER C-3752

2 - SHIFTER SHAFT BUSHING

Install slide hammer C-3752 (1) through the crossover bushing. See Fig 1.
Thread nut and washer onto slide hammer.
Using the slide hammer, remove the crossover shaft bushing (2).
