Output Bearing And Race: Installation

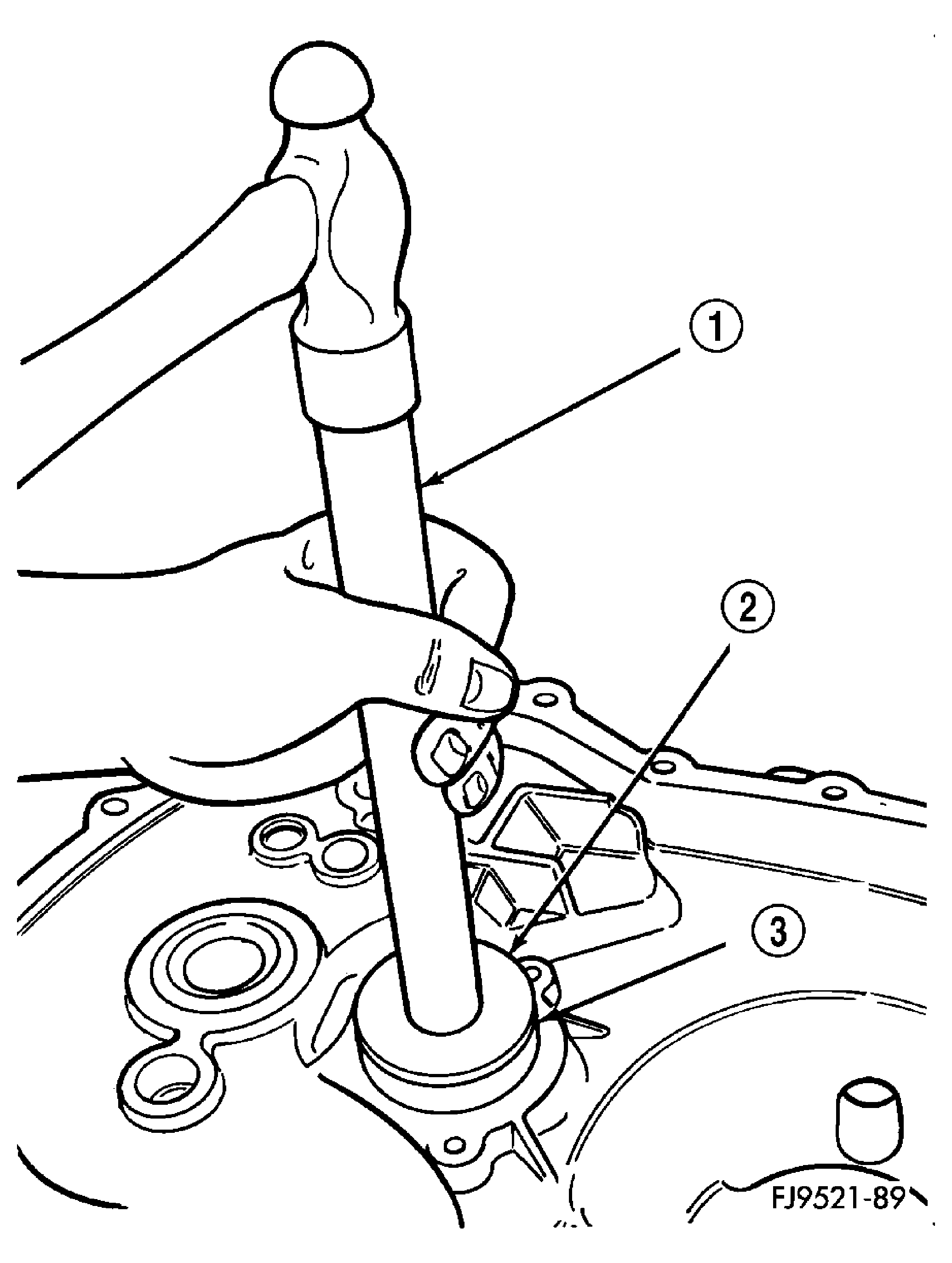

Fig 1: Output Bearing Race Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - HANDLE C-4171

2 - INSTALLER C-4628

3 - OUTPUT BEARING RACE

Line up output bearing race (3) to race bore. See Fig 1.
Insert tool Installer 4628 (2) with Handle C-4171 (1) into output bearing race. Tap race into bore. Install output bearing into race. Verify that the larger diameter cage is facing outward. Position bearing retaining strap. Tighten bolts to 11 N.m (96 in. lbs.).
