Input Bearing And Sleeve: Installation

Fig 1: Input Bearing Tool

Courtesy of DAIMLERCHRYSLER CORP.

1 - SEAL REMOVER C-4680-1

2 - SPACER

3 - BELLHOUSING HALF

Apply coating of Loctite® sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.
Install Seal Remover C-4680-1 (1), over input bearing. See Fig 1.

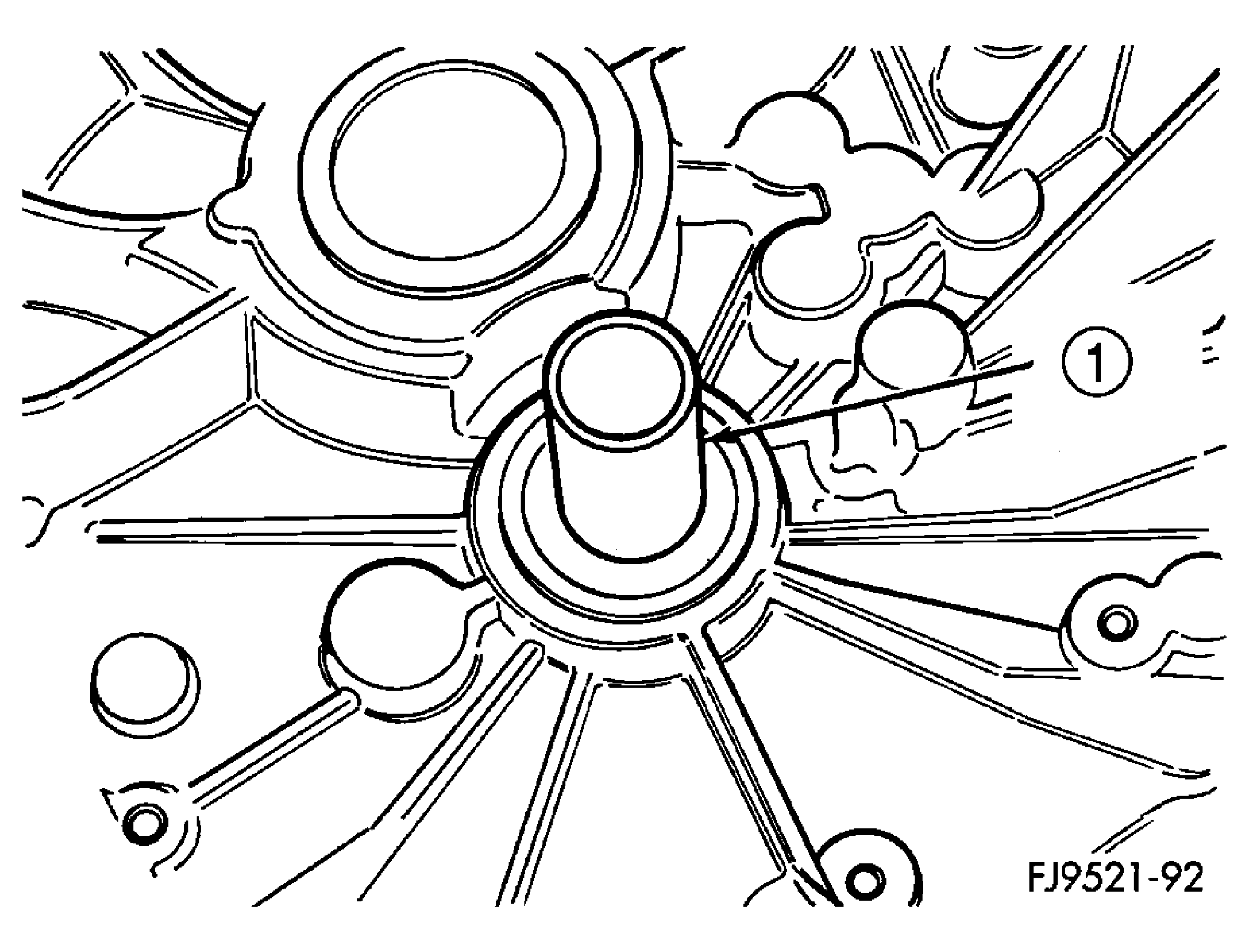

Fig 2: Input Bearing Installed
Courtesy of DAIMLERCHRYSLER CORP.

1 - SLEEVE AND BEARING ASSEMBLY
Using a suitable spacer tool and shop press, install input bearing (1) into bore until it is fully seated. See Fig 2.
