Standard Procedure - Fluid Drain And Fill

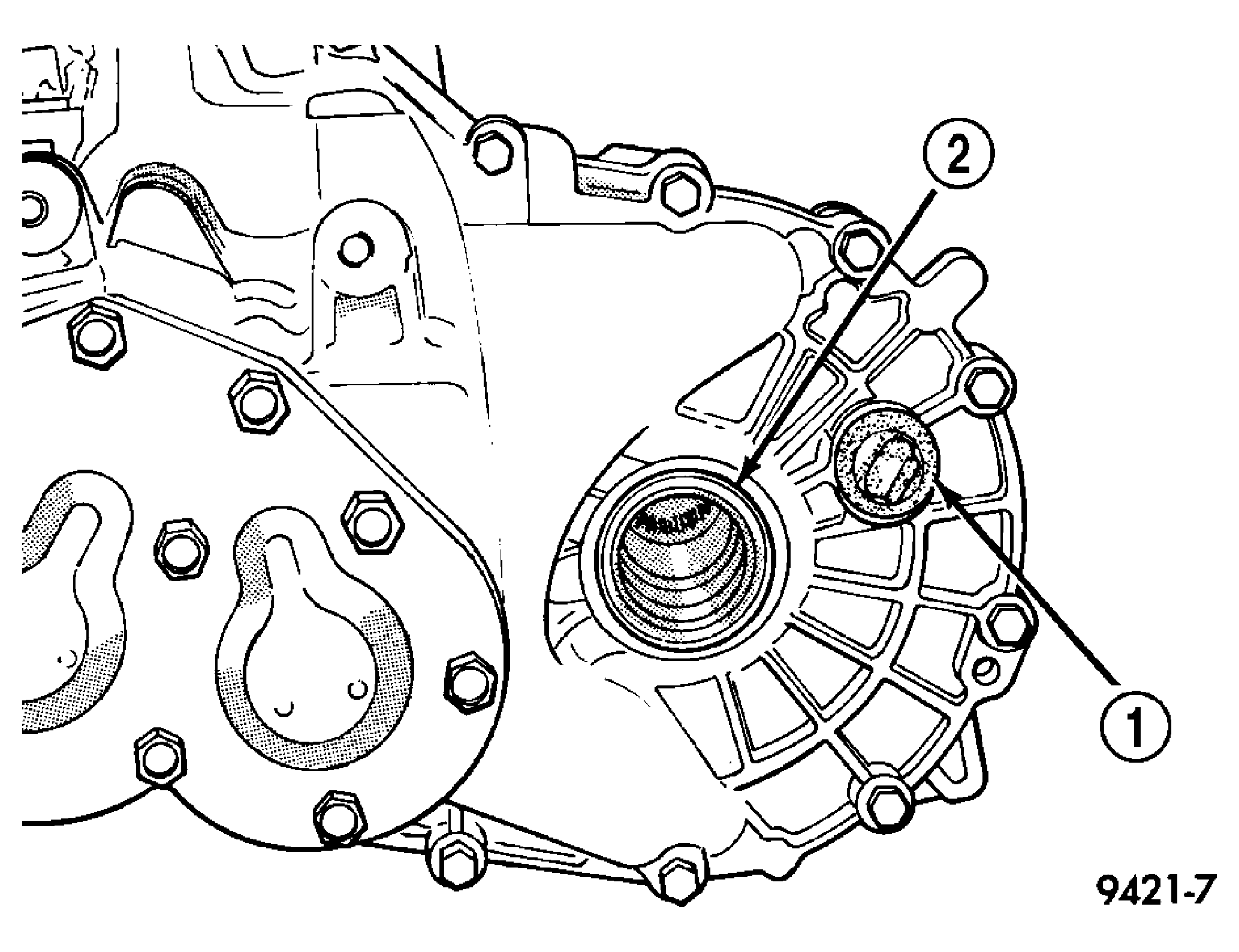

Fig 1: Fill Plug Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - RUBBER FILL PLUG

2 - LEFT DRIVESHAFT SEAL

NOTE: All T350 Manual Transaxles require the use of ATF+4 (Automatic Transmission Fluid).

The transaxle fill plug (1) is located on the left side of the transaxle differential area. The fluid level should be within 3/16 inch from the bottom of the transaxle fill hole (vehicle must be level when checking). See Fig 1.

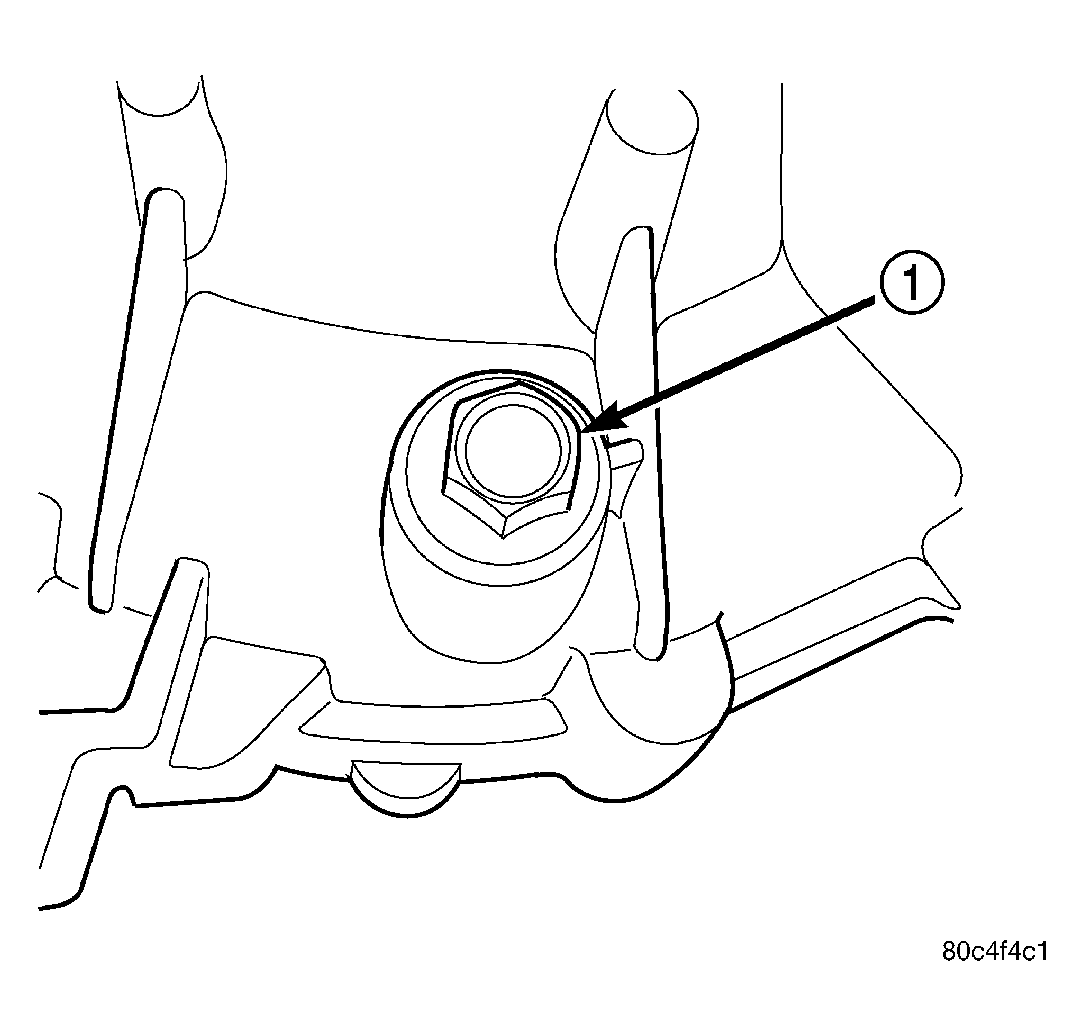

Fig 2: Drain Plug Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - DRAIN PLUG

The transaxle drain plug (1) is located on the lower right side of the transaxle differential housing. Tighten drain plug to 14 N.m (120 in. lbs.). See Fig 2.

NV T350 MANUAL TRANSAXLE FLUID FILL

TRANSAXLE	METRIC MEASURE	U.S. MEASURE
NV T350	2.4-2.7 Liters	2.5-2.8 Quarts

Fill transaxle to capacity with suitable amount of ATF+4. Refer to following chart. Wipe the outside of the transaxle if any lubricant spills.
