T350 Manual Transaxle: Differential: Assembly: Notes

Fig 1: Side Gear and Washer

Courtesy of DAIMLERCHRYSLER CORP.

1 - SIDE GEAR

2 - WASHER

1. Install side gears (1) and thrust washers (2) into case through opening and rotating into position. See Fig 1.
   Fig 2: Pinion Gear and Washer

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - THRUST WASHER

   2 - PINION GEAR

2. Install pinion gears (2) and thrust washers (1) into case through opening and rotating into position. See Fig 2.
   Fig 3: Pinion Shaft Removal/Installation

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PINION SHAFT

   2 - DIFFERENTIAL CASE

   3 - PINION GEAR (2)

3. Install pinion shaft (1). See Fig 3.
   Fig 4: Differential Ring Gear and Case

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - DIFFERENTIAL CASE

   2 - RING GEAR

4. If previously removed, install ring gear to differential case (1). See Fig 4.
   Fig 5: Pinion Shaft Retainer

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - PINION SHAFT RETAINER

5. Install pinion shaft retainer (1). See Fig 5.
   Fig 6: Differential Ring Gear-to-Case Bolts

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - DIFFERENTIAL CASE

   2 - BOLT (12)

   3 - RING GEAR

   4 - PINION SHAFT RETAINER (2)

6. . Install NEW  ring gear-to-case bolts (2) and torque to 81 N.m (60 ft. lbs.) torque. See Fig 6.
   Fig 7: Speedometer Drive Gear

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - SPEEDOMETER GEAR

7. Install speedometer drive gear (1) to case. Note orientation of index tab. See Fig 7.
   Fig 8: Press Gear onto Differential

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - STEEL STOCK

   2 - INSTALLER L-4440

   3 - SPEEDOMETER GEAR

   4 - DIFFERENTIAL CASE

8. Using Steel Block and Installer L-4440 (1), press speedometer drive gear (3) into position. See Fig 8.

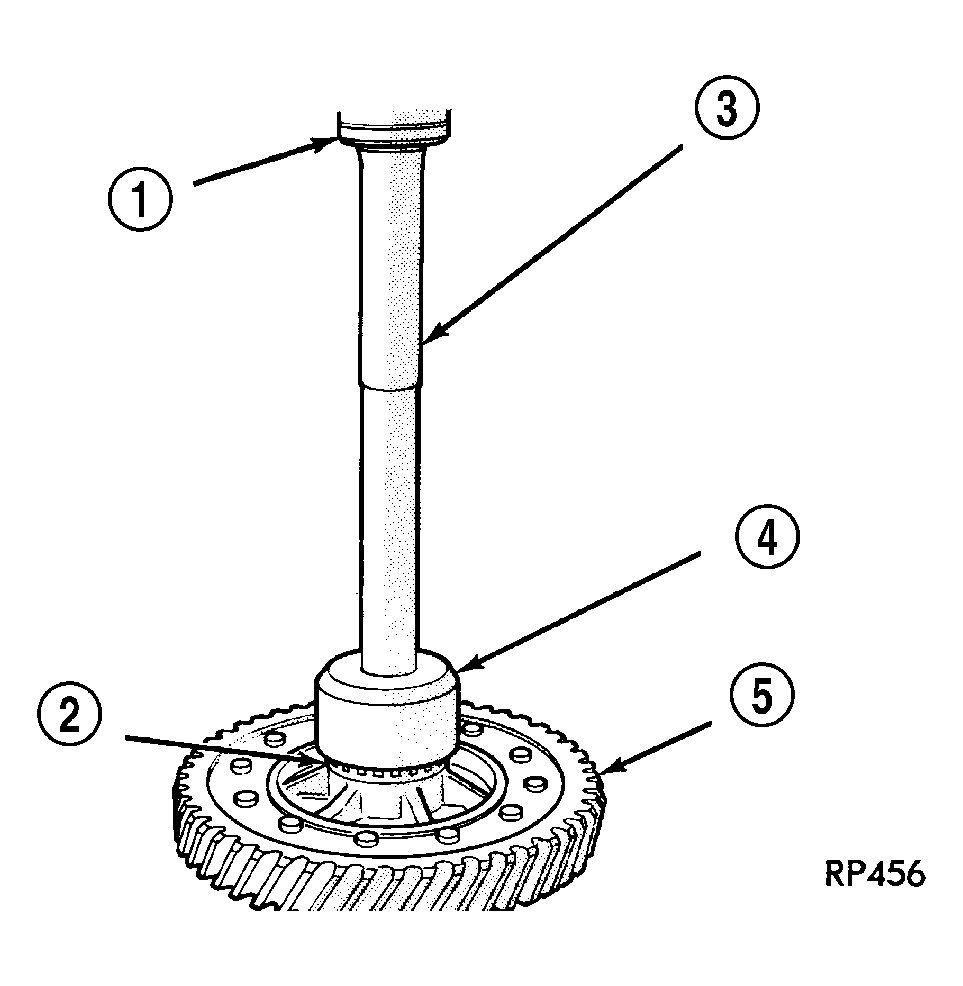

   Fig 9: Install Differential Bearing Cone to Ring Gear Side

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - ARBOR PRESS RAM

   2 - BEARING CONE

   3 - HANDLE C-4171

   4 - INSTALLER L-4410

   5 - DIFFERENTIAL ASSEMBLY

9. Using an arbor press (1), Handle C-4171(3), and Installer L-4410 (4), install differential side bearings to ring gear side. See Fig 9.
   Fig 10: Install Bearing Cone to Differential Case Side

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - HANDLE C-4171

   2 - INSTALLER L-4410

   3 - BEARING CONE

10. Using an arbor press, Handle C-4171 (1), and Installer L-4410 (2), install differential side bearings (3) to case side. See Fig 10.
