Differential Bearing Cups: Removal

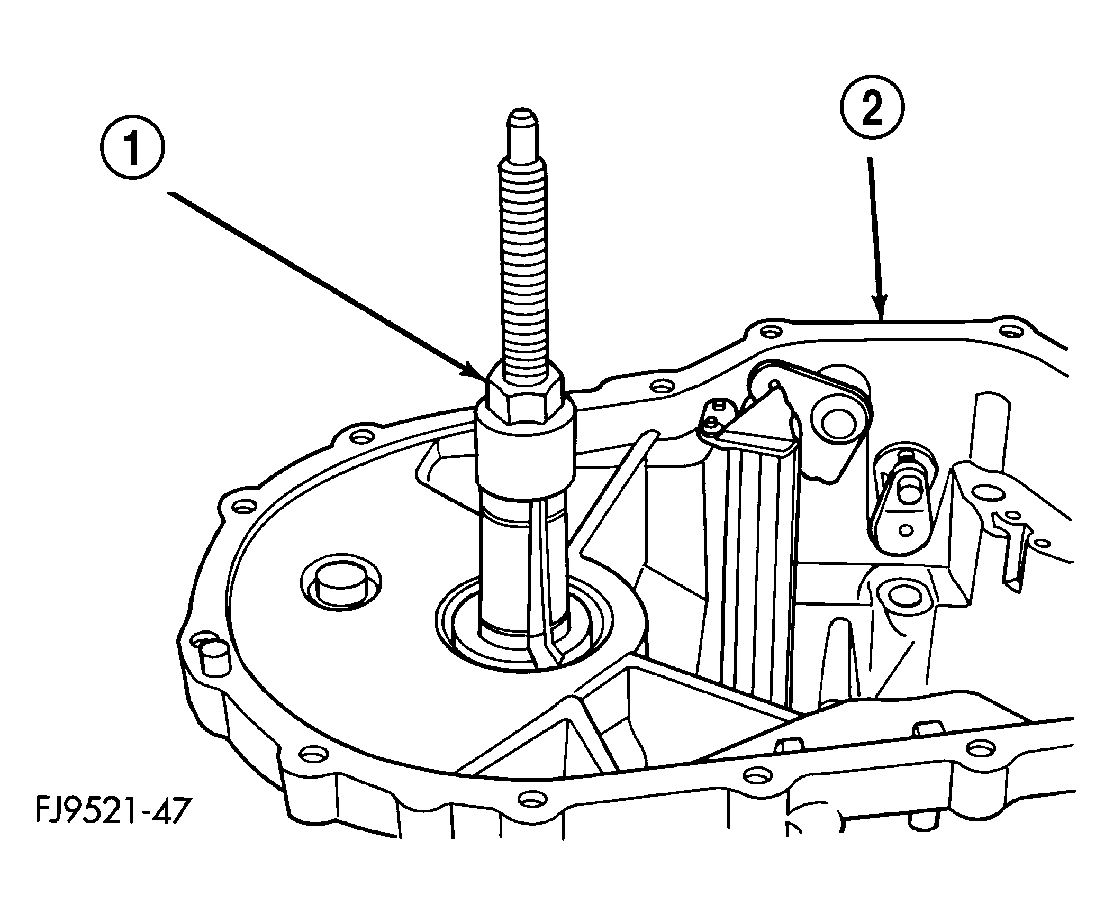

Fig 1: Tool Installed in Bearing
GC0020137Courtesy of DAIMLERCHRYSLER CORP.
1 - SPECIAL TOOL L-4518
2 - GEAR CASE
  1. Remove differential assembly from gear case (2) . See Fig 1.
  2. Install Miller tool #L-4518 (1) into the differential bearing cup.

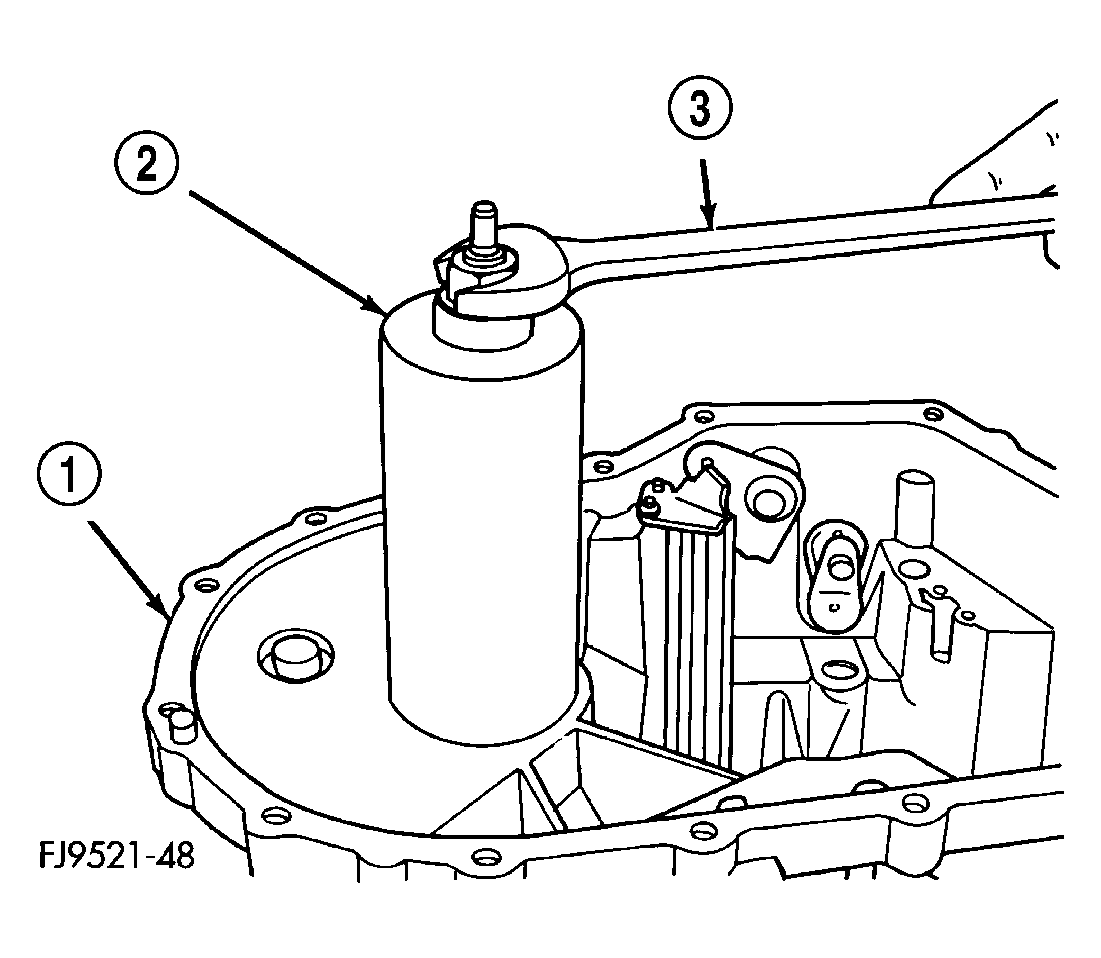

    Fig 2: Tool Cup Installed
    GC0020138Courtesy of DAIMLERCHRYSLER CORP.
    1 - GEAR CASE
    2 - SPECIAL TOOL L-4518
    3 - WRENCH
  3. Install the tool cup over the tool. See Fig 2.
  4. Tighten the tool until the race is removed from the case.
