Transaxle Identification

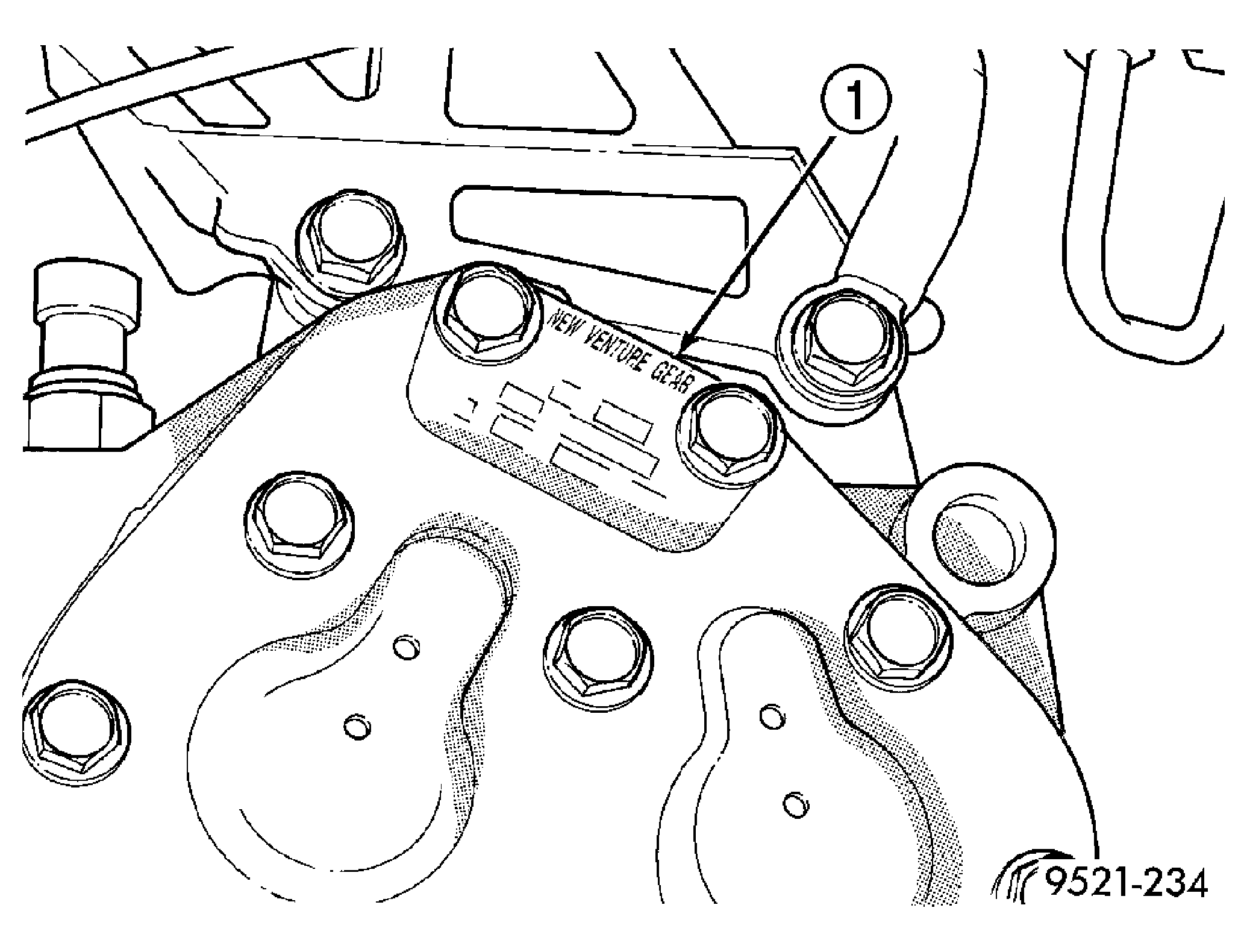

Fig 1: Metal I.D. Tag

Courtesy of DAIMLERCHRYSLER CORP.

1 - METAL I.D. TAG

The transaxle model, assembly number, and build date are on a metal I.D. tag (1) that is attached to the end cover of the transaxle. See Fig 1.

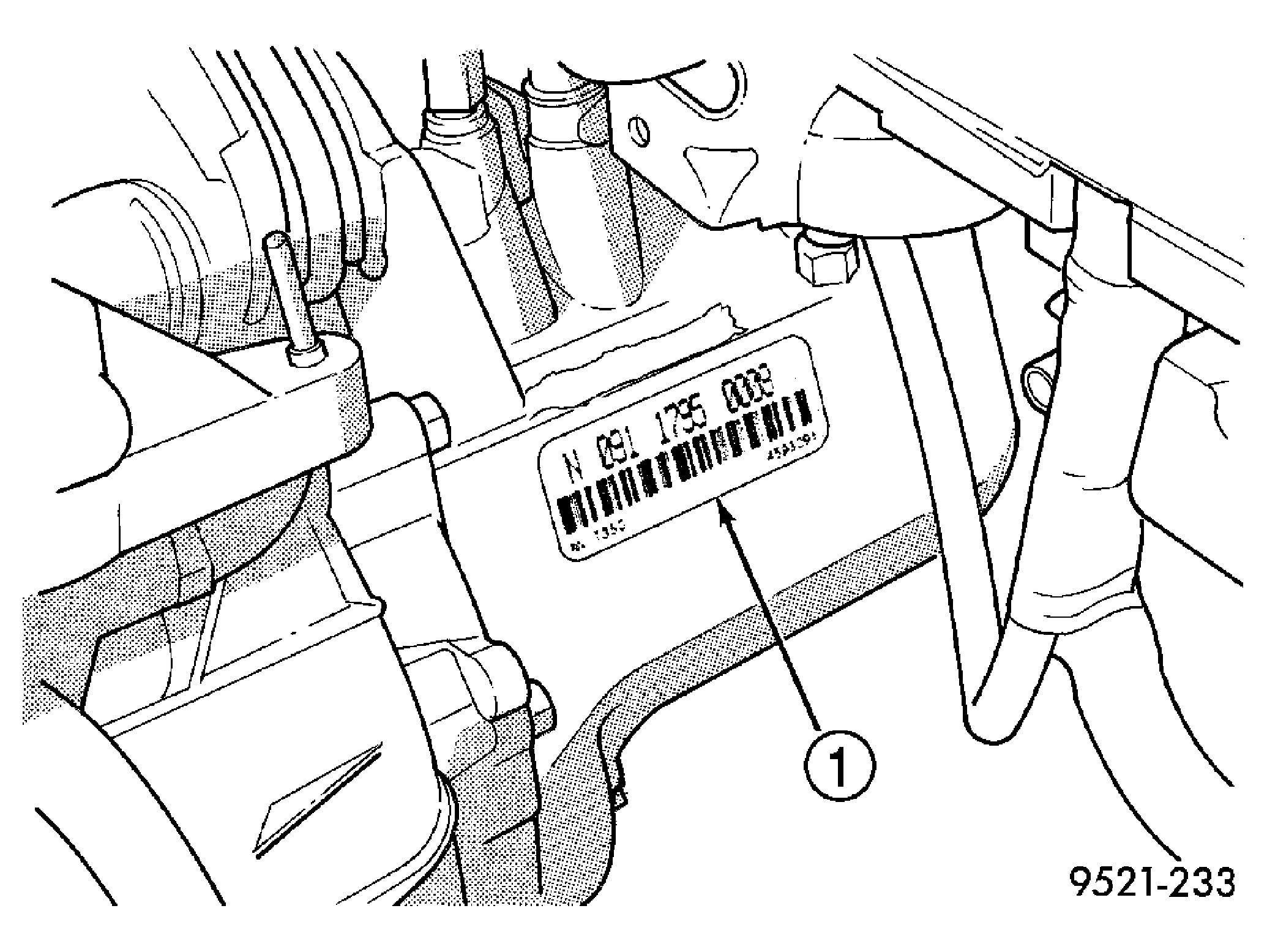

Fig 2: Bar Code Label

Courtesy of DAIMLERCHRYSLER CORP.

1 - BAR CODE LABEL

This information is also shown on a bar code label (1) that is attached to the front of the transaxle. See Fig 2.

NOTE: Transaxles use various final drive gear ratios in different vehicle applications. Therefore, it is necessary that the correct transaxle assembly number is used when ordering service parts.
