Gearshift Pattern

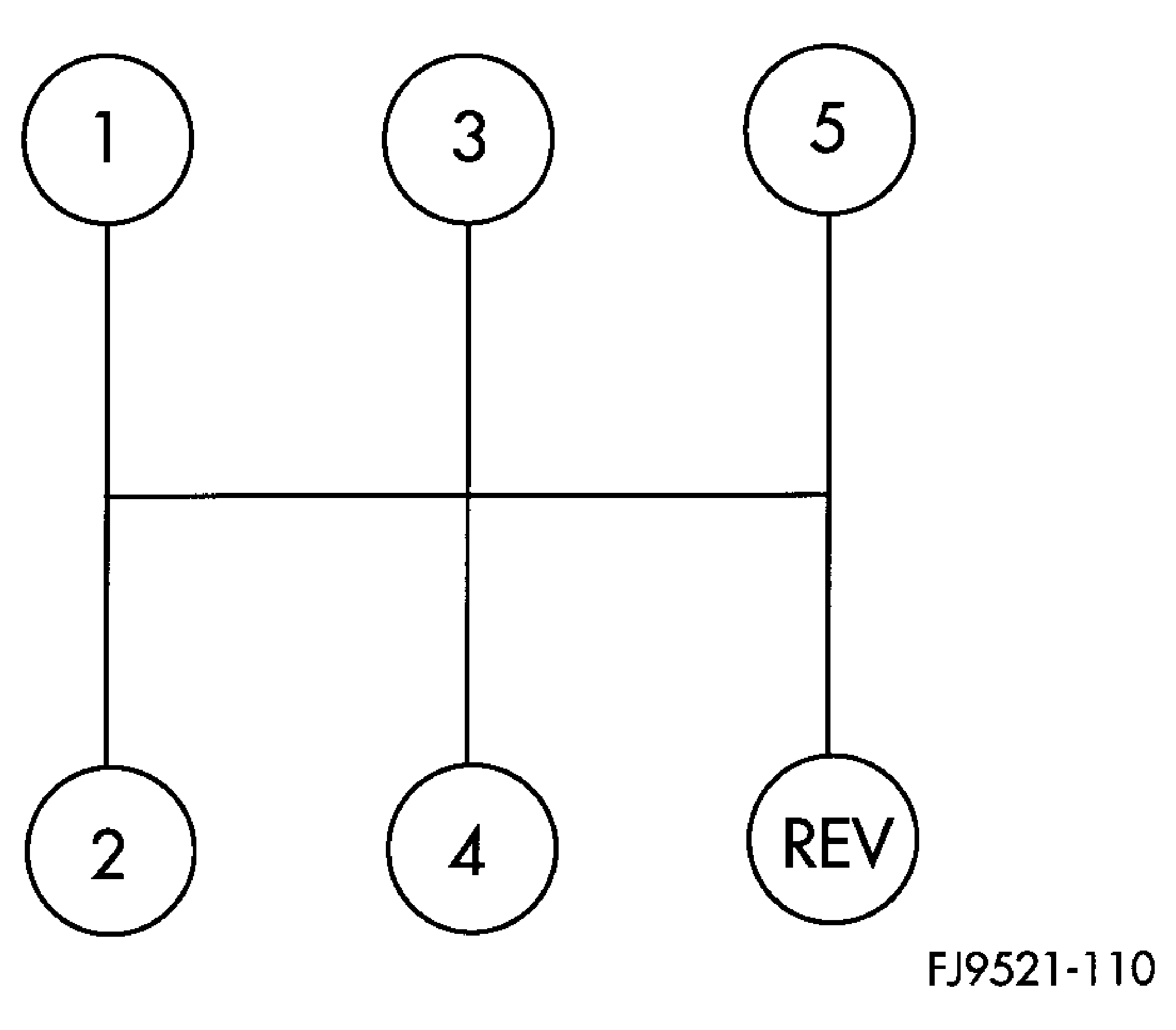

Fig 1: T350 Transaxle Shift Pattern

Courtesy of DAIMLERCHRYSLER CORP.

The T350 transaxle shift pattern is a modified H-pattern. See Fig 1. Overdrive fifth and reverse gears are in-line and outboard of the first through fourth gear positions.
