T350 Manual Transaxle: Assembly: Notes

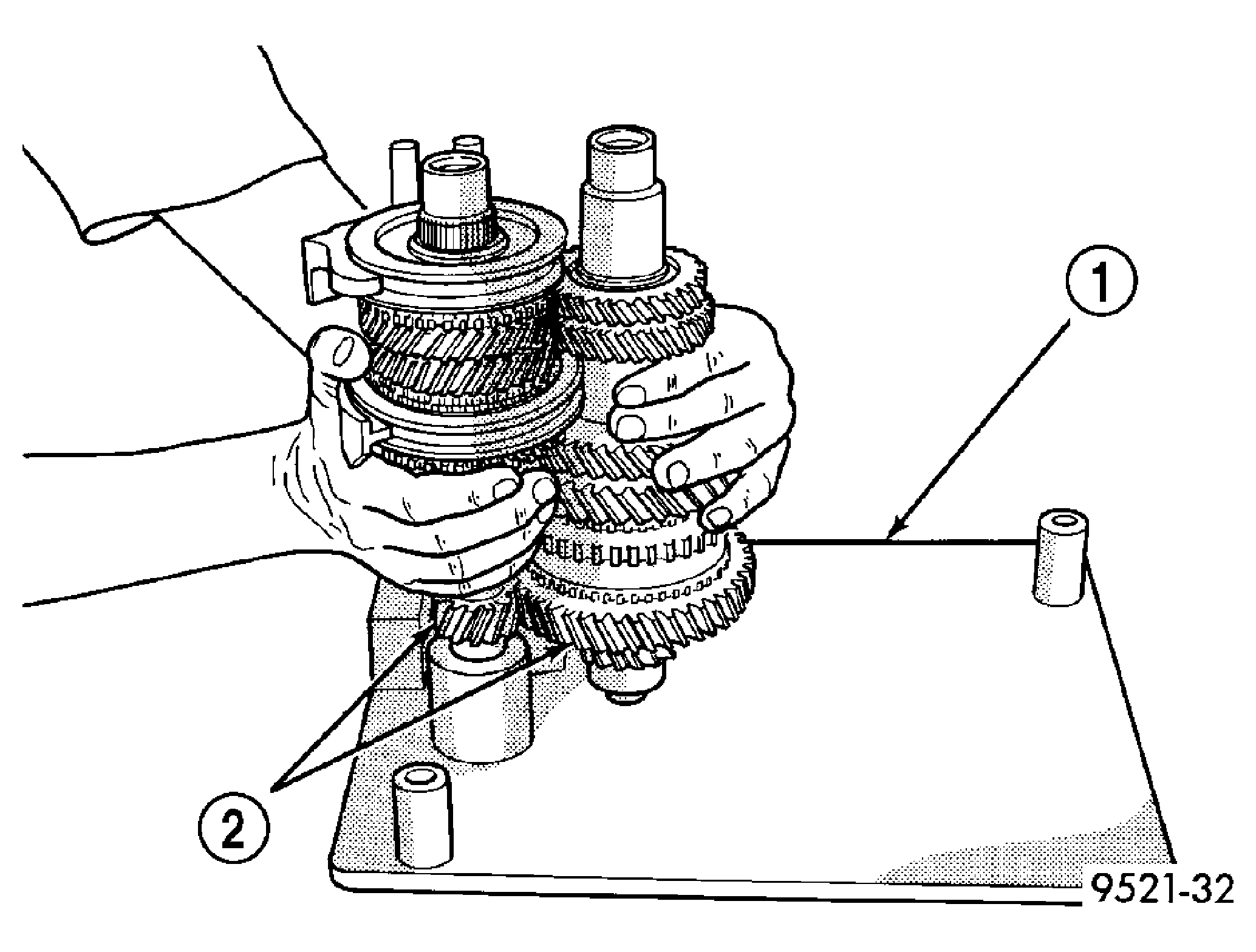

| 1 - BENCH FIXTURE |
| 2 - GEARTRAIN |
The T350 transaxle internal components can be serviced only by separating the gear case from the bellhousing case.
CAUTION:
The transaxle output shaft is serviced as a unit. No disassembly and reassembly is possible. Damage to the transaxle may result.
The sealant used to seal the transaxle case halves is Mopar® Gasket Maker, Loctite® 518, or equivalent. The sealant used for the bearing end plate cover is Mopar® RTV.
- Verify bench fixture shims are removed from bench fixture (1). See Fig 1.

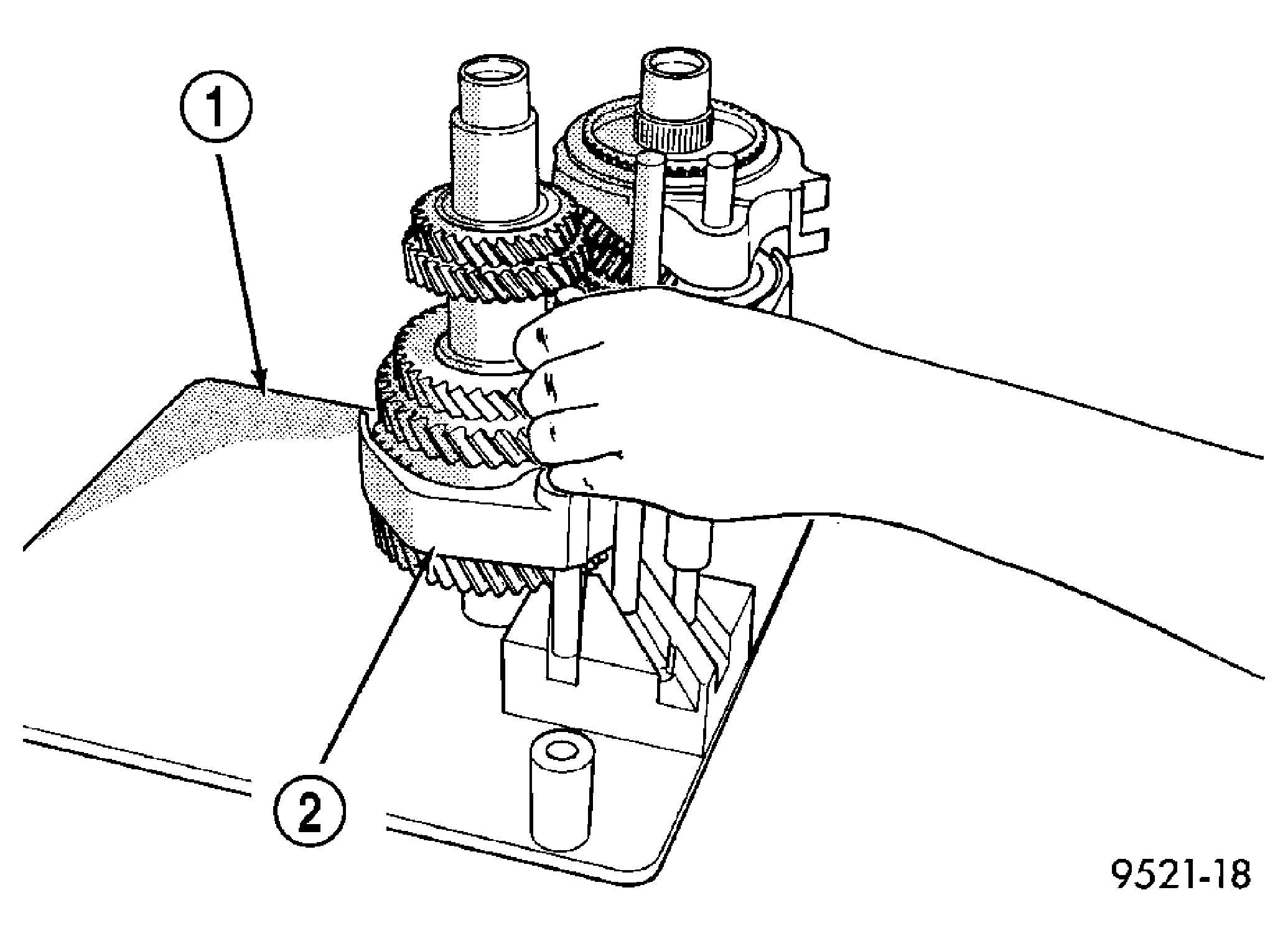

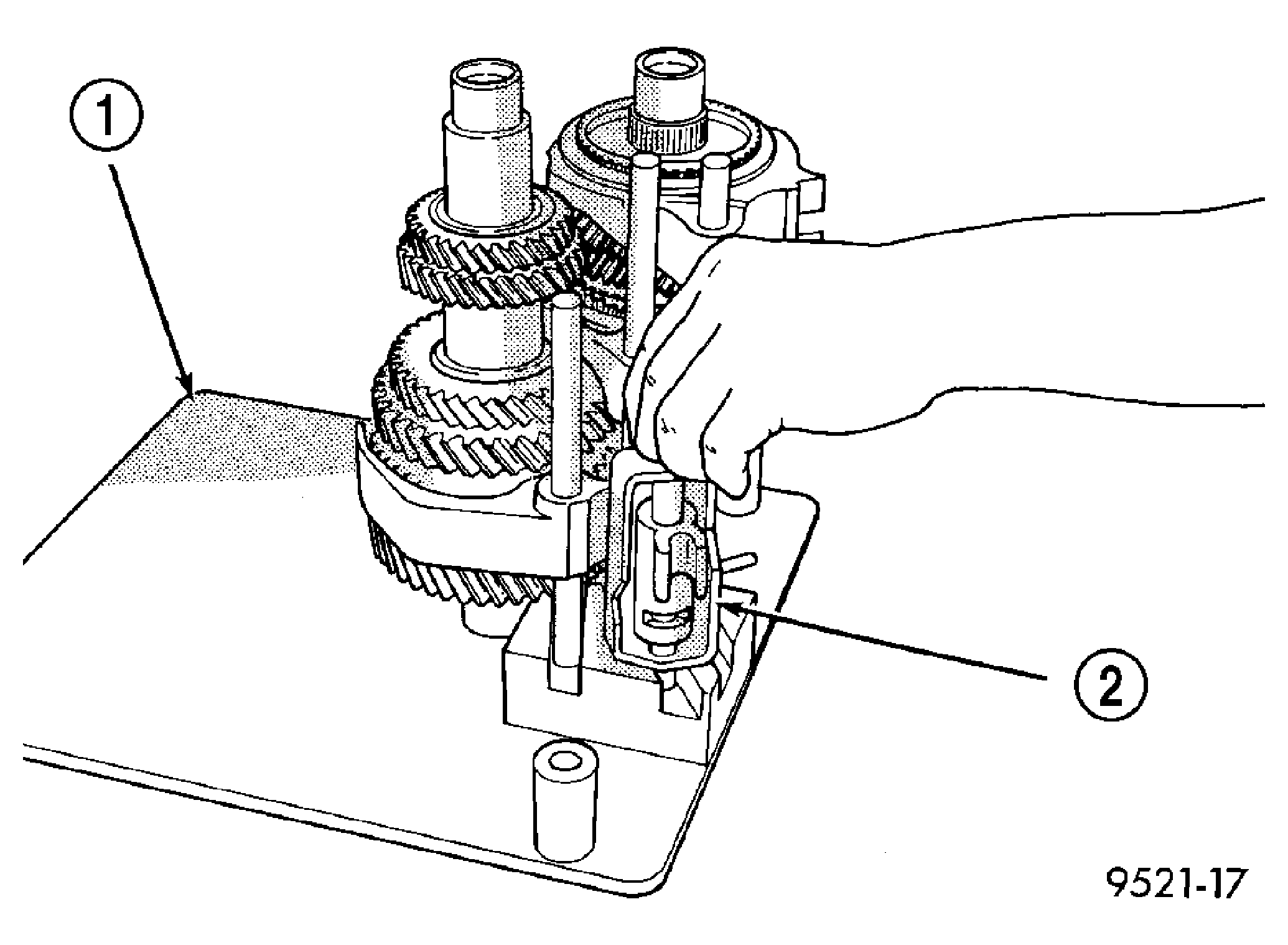

1 - 6785 BENCH FIXTURE 2 - 1-2 SHIFT FORK - Install output and input shafts into bench fixture 6785 (1). See Fig 2.
1 - 6785 BENCH FIXTURE 2 - SHIFT BLOCKER ASSEMBLY - Install shift blocker assembly into bench fixture (1). See Fig 3.

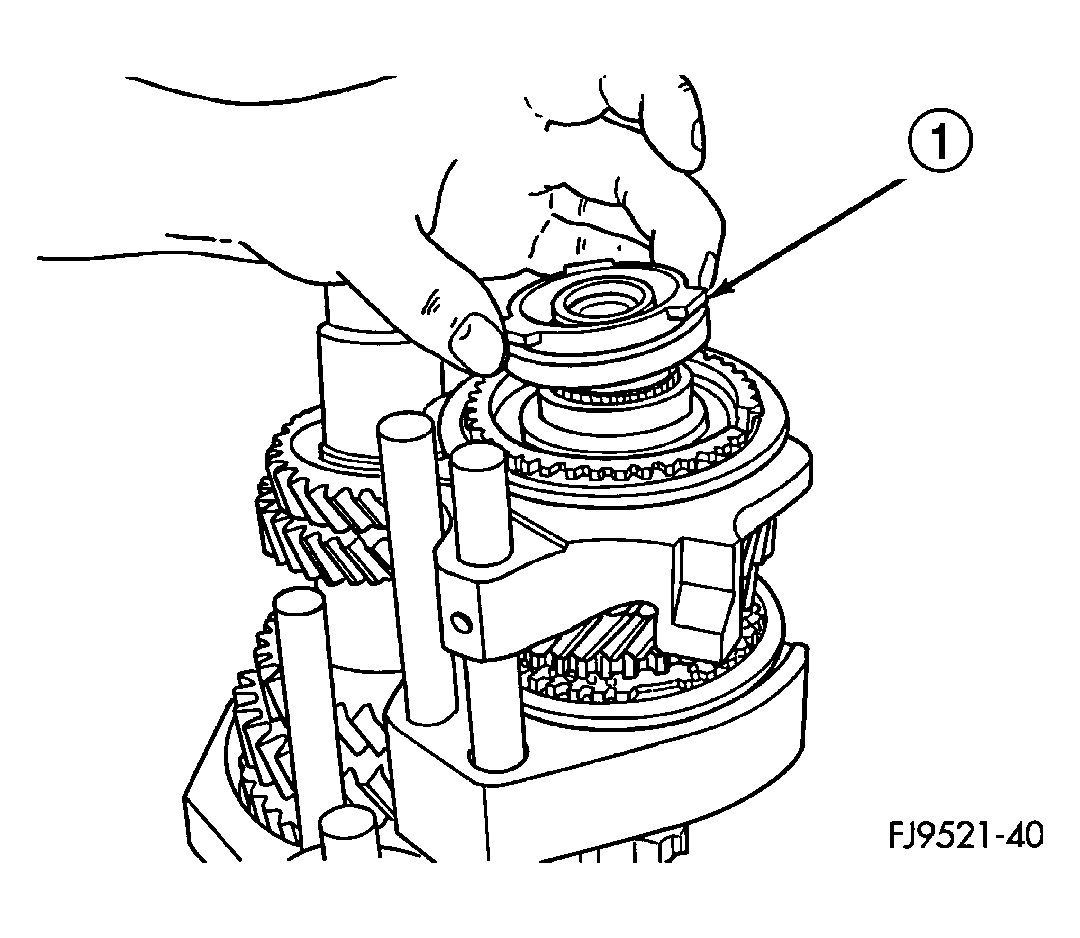

1 - REVERSE BRAKE BLOCKING RING - Install reverse brake blocking ring (1). See Fig 4.
1 - REVERSE BRAKE FRICTION CONE - Install reverse brake friction cone (1). See Fig 5.

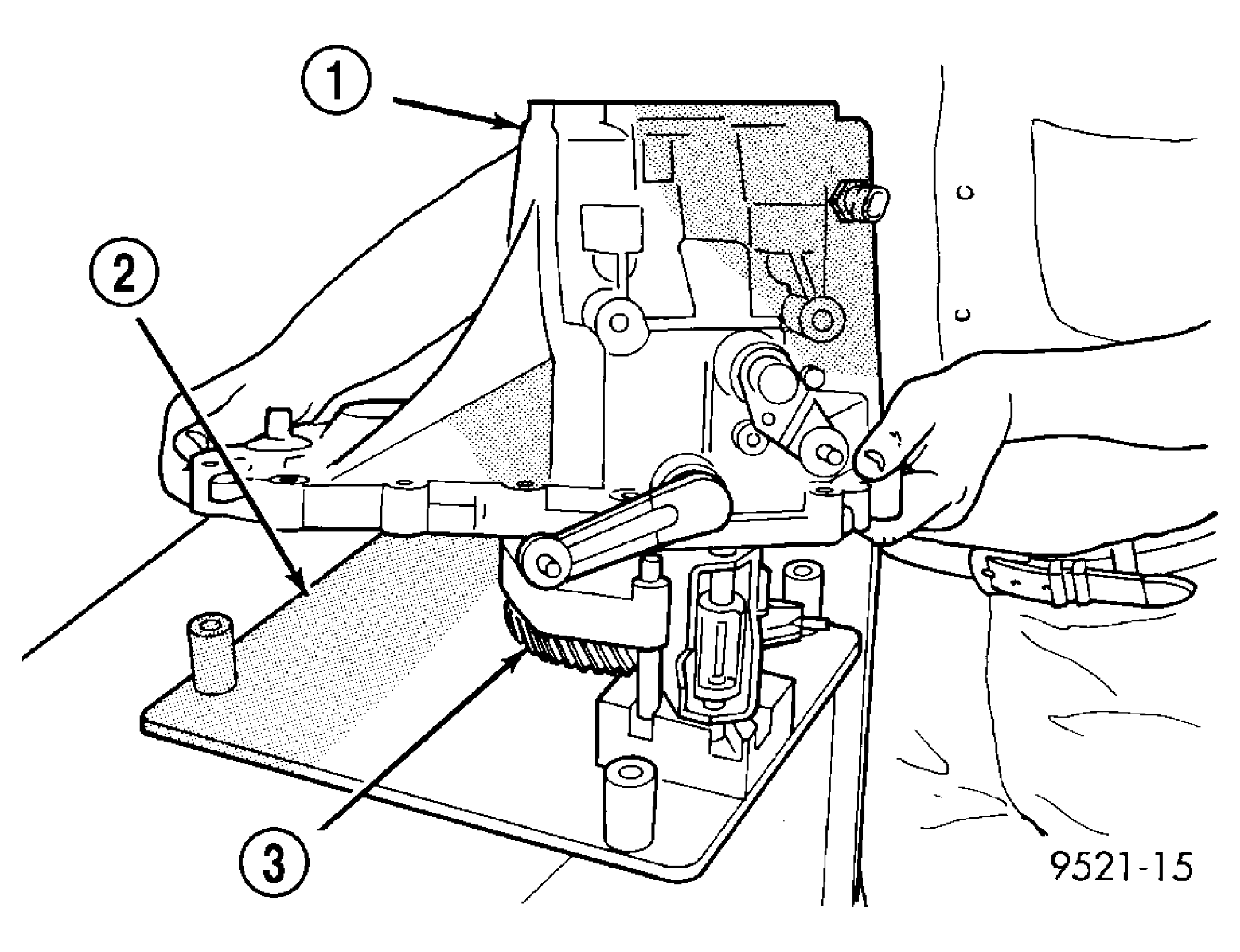

1 - TRANSAXLE CASE 2 - BENCH FIXTURE 3 - GEARTRAIN - Install gear-case half (1) over bench fixture (2). Line up shift finger over 3-4 lug. See Fig 6.

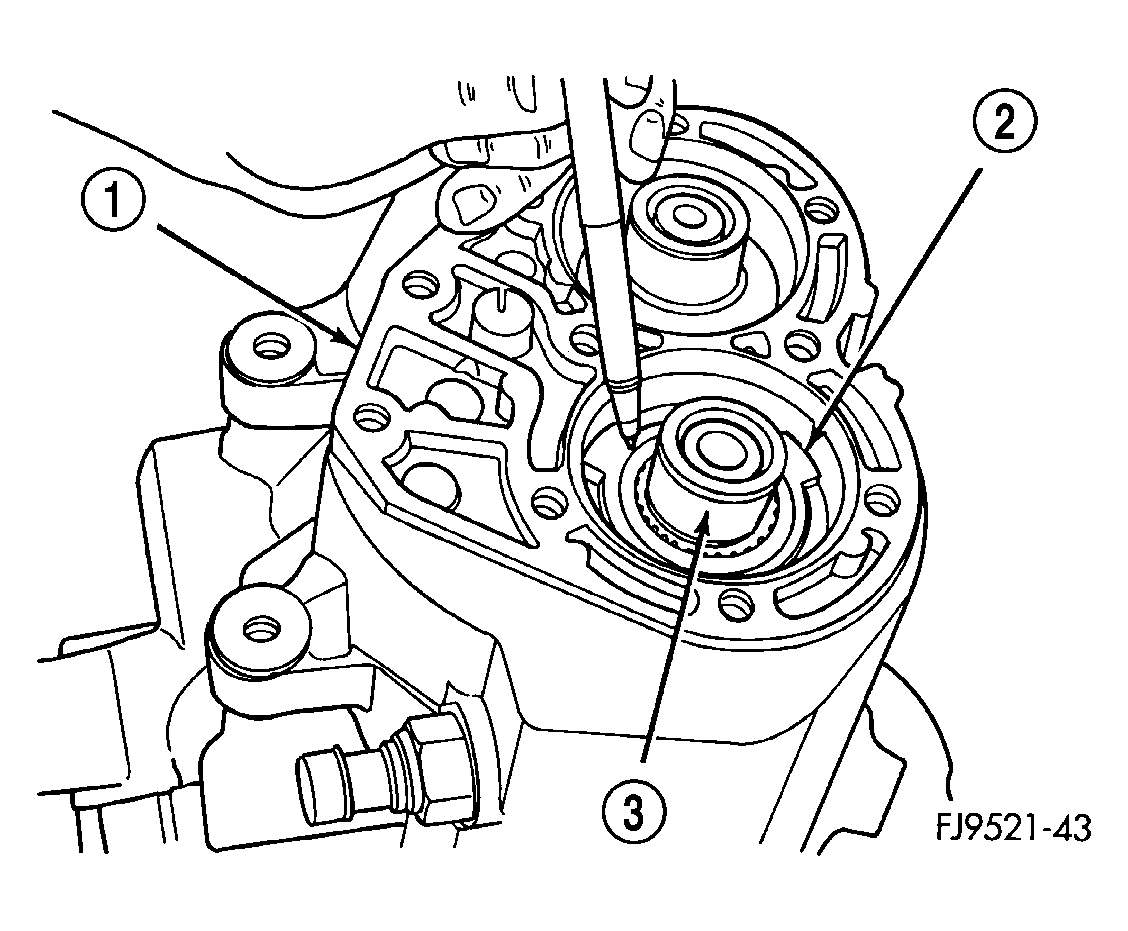

1 - CASE 2 - FRICTION CONE LUGS 3 - INPUT SHAFT - Line up reverse brake friction cone lugs (2) to the slots in the gear case (1). Verify reverse brake shim is in position. See Fig 7.
1 - INPUT AND OUTPUT BEARINGS 2 - SEAL INSTALLER 4992-1 - Position input and output bearings (1) on the shafts. Using Seal Installer C-4992-1 (2), press on input and output shaft bearings (1) until they bottom into the case and against the shafts. See Fig 8.

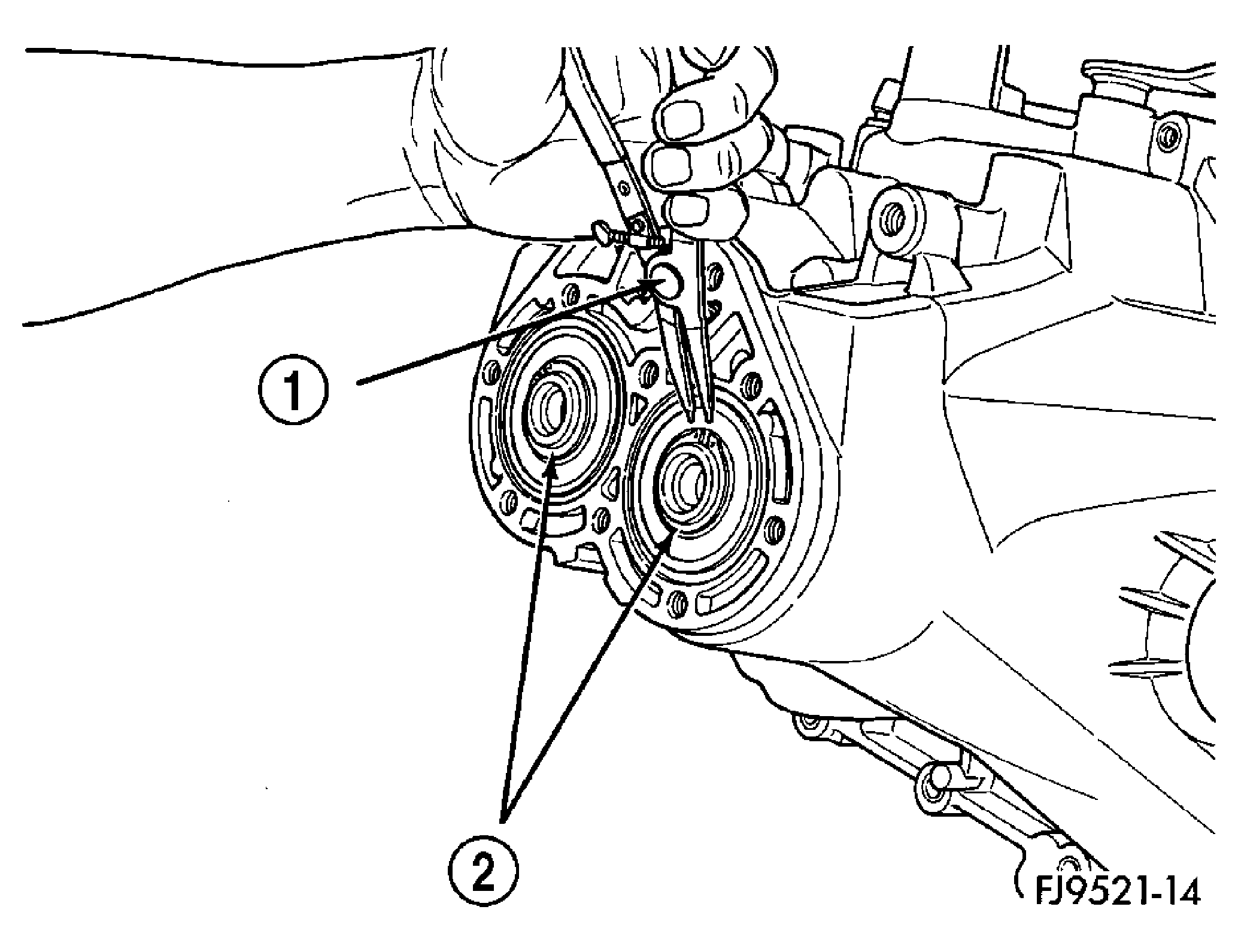

1 - SNAP RING PLIERS 2 - SNAP RINGS - Install shaft snap rings (2) at input and output bearings. See Fig 9.

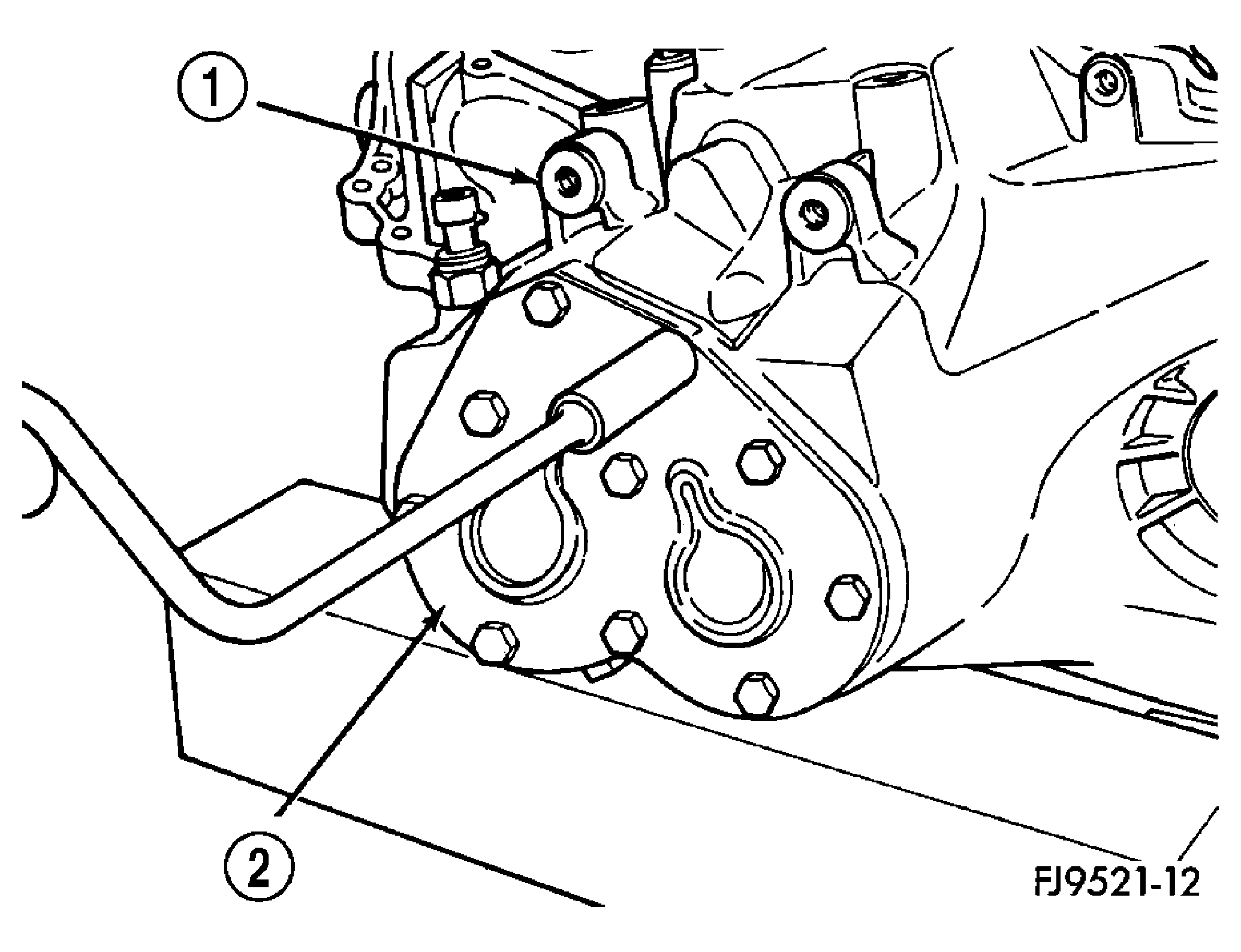

1 - TRANSAXLE CASE 2 - END COVER - Apply Mopar® RTV sealant to end-cover (2) outer edge and around bolt holes. Install end-cover onto gear case. Tighten end cover bolts to 29 N.m (21 ft. lbs.) torque. See Fig 10.
1 - SHIFT ASSEMBLY 2 - SELECTOR SHAFT - Remove gear case from bench fixture.
- Install gear case in a holding fixture with end cover facing down.

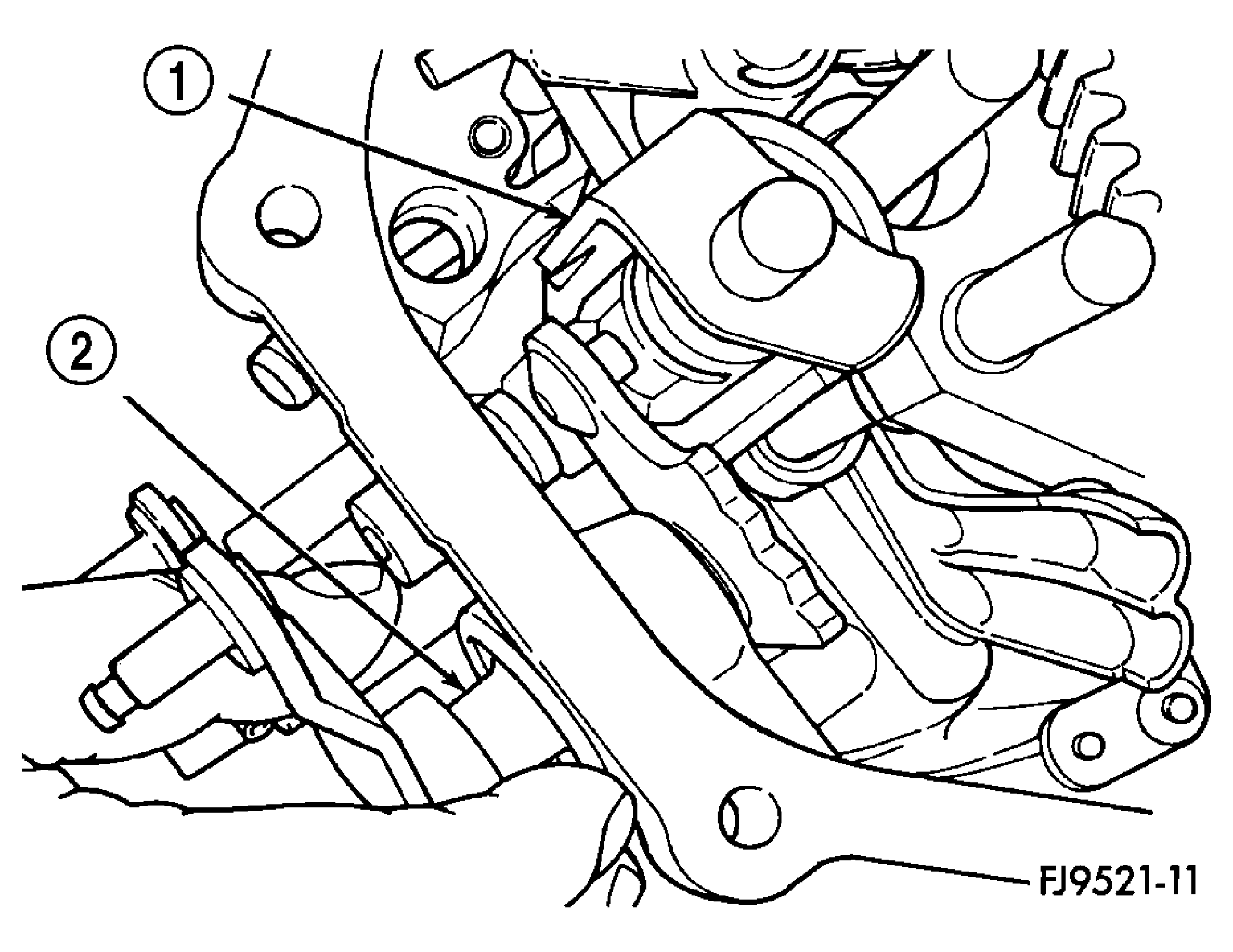

- Turn selector shaft (2) into slot on blocker assembly. See Fig 11.

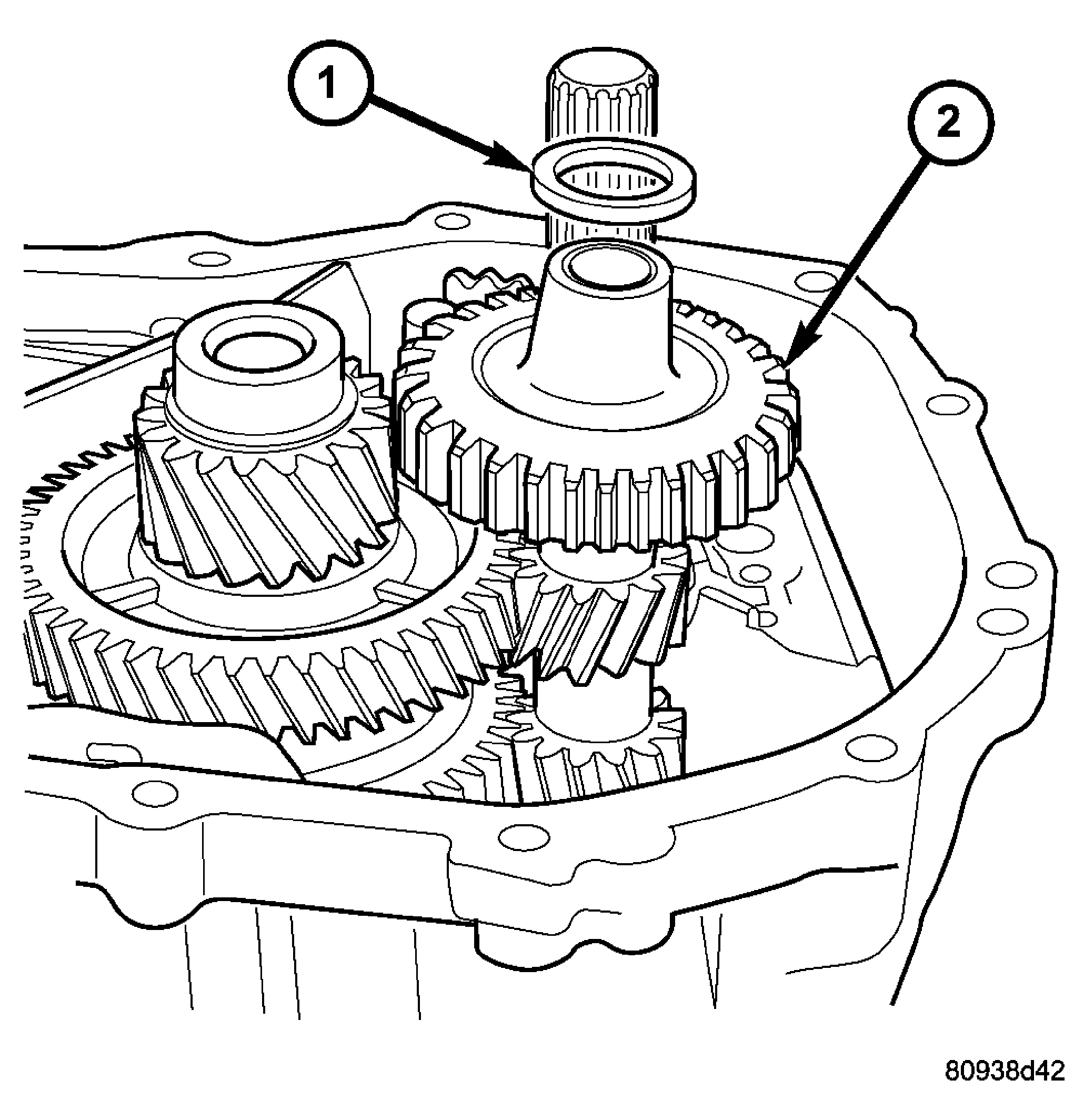

1 - SPACER 2 - REVERSE IDLER GEAR - Push selector shaft spacer clip onto selector shaft. Install shift levers.
- Install reverse idler gear (2) and spacer (1). See Fig 12.
1 - REVERSE IDLER SHAFT 2 - SPACER - Install reverse idler shaft (1). See Fig 13.
1 - CASE 2 - REVERSE IDLER SHAFT 3 - REVERSE IDLER SHAFT BOLT - Install bolt into shaft (2) and tighten to 29 N.m (19 ft. lbs.) torque. See Fig 14.

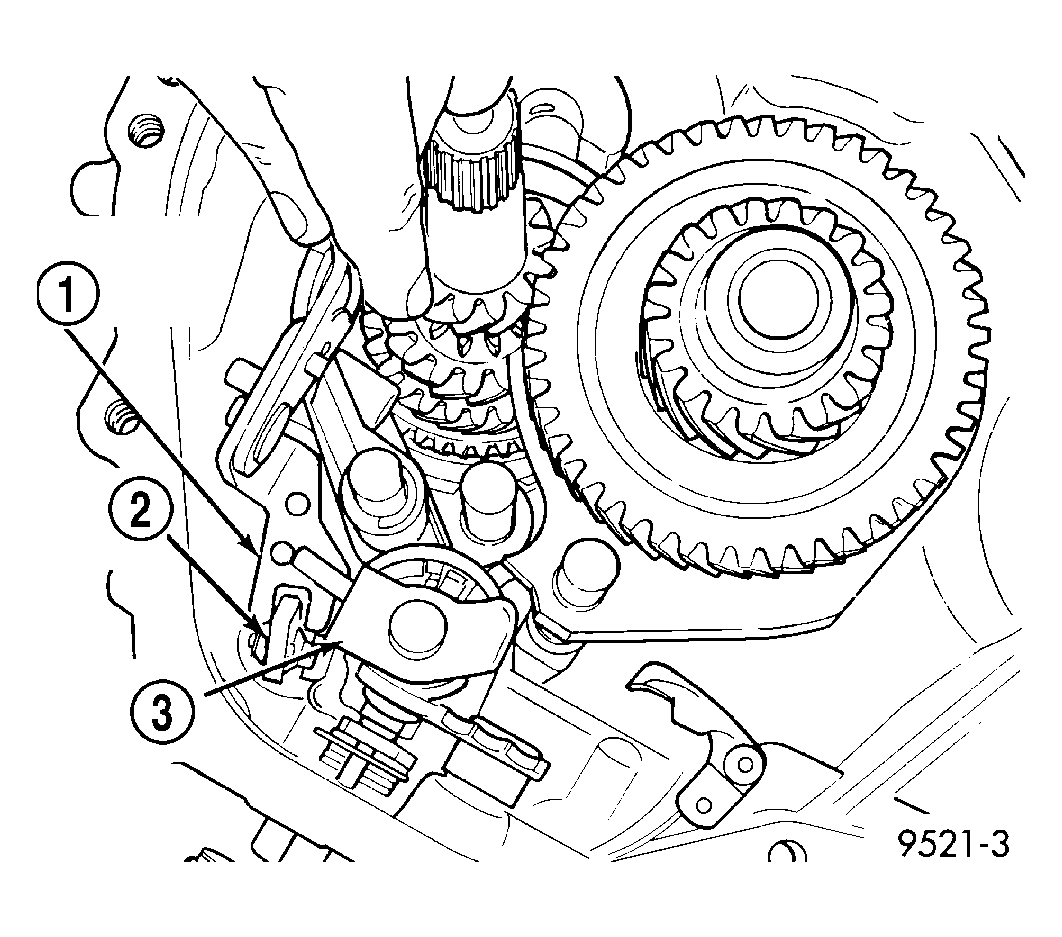

1 - REVERSE FORK BRACKET 2 - REVERSE CAM BLOCKOUT 3 - SHIFT BLOCKER ASSEMBLY - Install reverse fork bracket (1). See Fig 15.

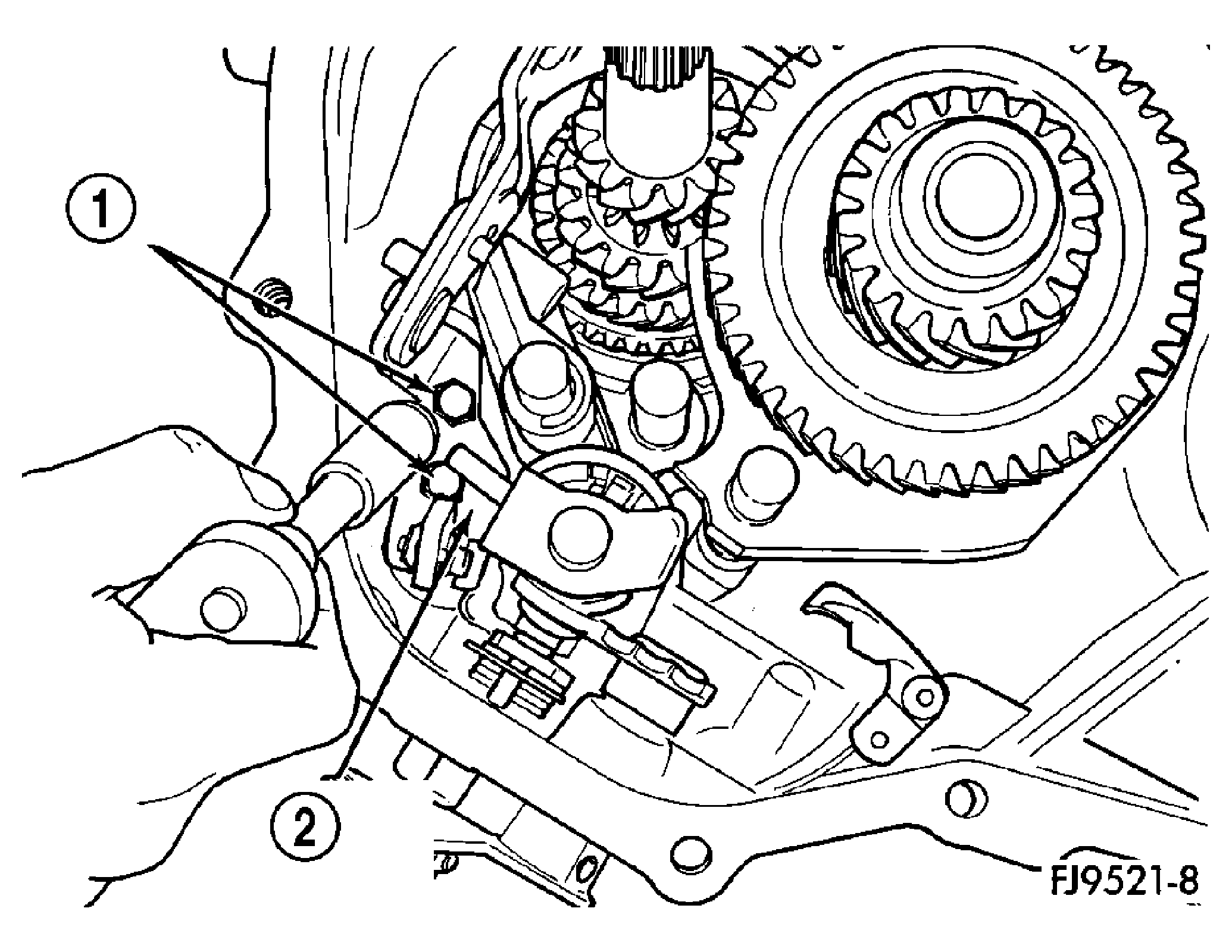

1 - SCREWS (2) 2 - REVERSE FORK BRACKET - Tighten reverse lockout (2) screws to 11 N.m (96 in. lbs.) torque. See Fig 16.

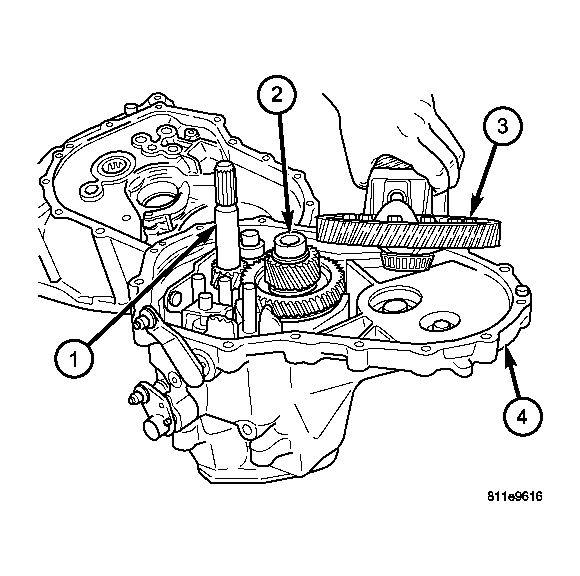

1 - INPUT SHAFT 2 - OUTPUT SHAFT 3 - DIFFERENTIAL ASSEMBLY 4 - GEARTRAIN HOUSING - Install differential (3) into gear case (4). See Fig 17.
