Tube-Water Pump Inlet-2.0/2.4L: Installation

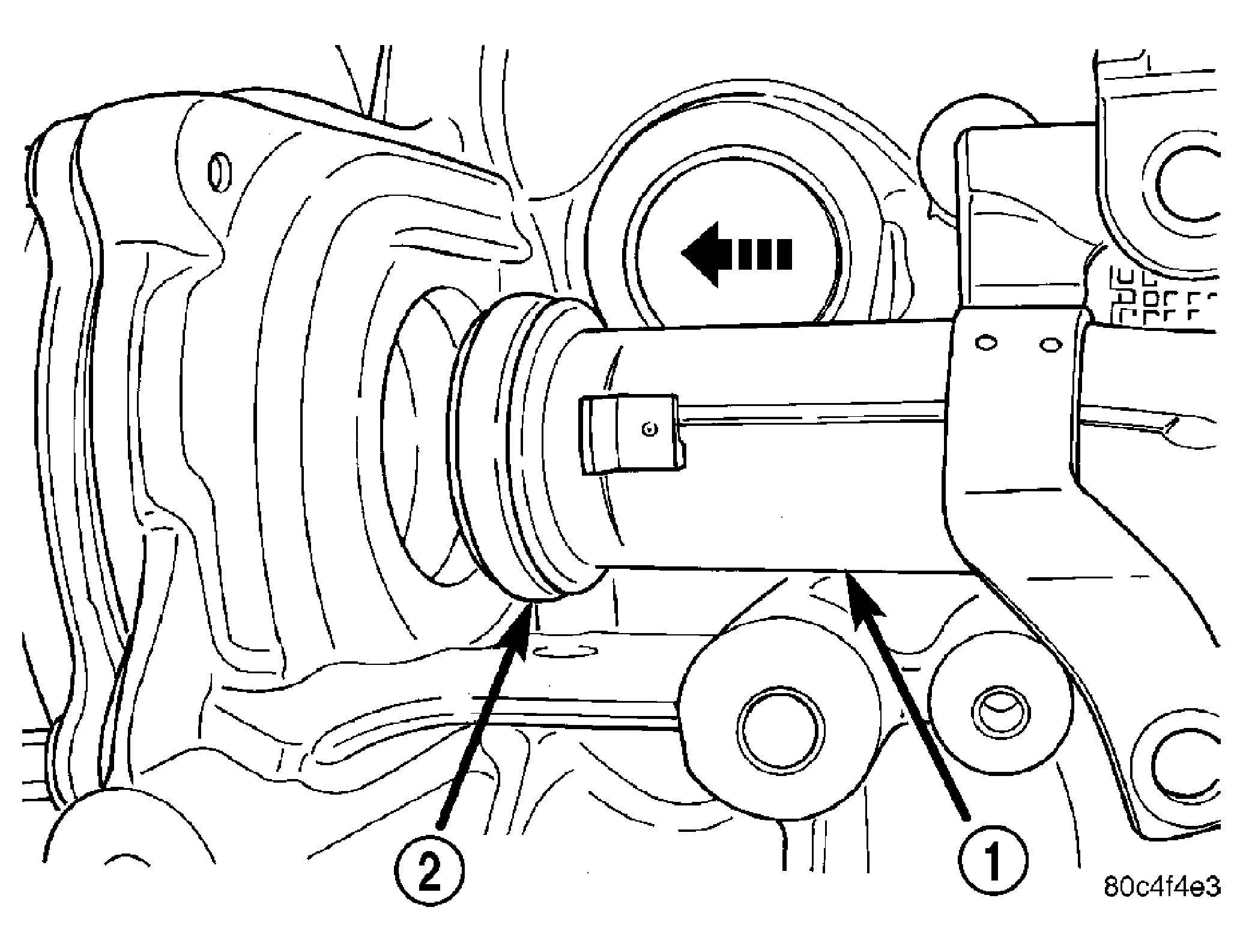

Fig 1: Installing Water Pump Inlet Tube

Courtesy of DAIMLERCHRYSLER CORP.

1 - TUBE

2 - O-RING

1. Inspect the O-ring for damage before installing the tube (1). See Fig 1. Replace O-ring as necessary.
2. Lubricate O-ring with MOPAR® Dielectric Grease and install inlet tube into the cylinder block opening.
3. Install inlet tube bolts and tighten to 12 N.m (105 in. lbs.).
4. Connect lower radiator hose and heater return hose to inlet tube.
5. Install upper radiator closure panel and center brace, (Refer to BODY/EXTERIOR/RADIATOR CLOSURE PANEL - INSTALLATION) .
6. Fill cooling system, (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
7. Pressure test system to 103 kPa (15 psi) and check for leaks.
