2.0L/2.4L Engine: Turbo

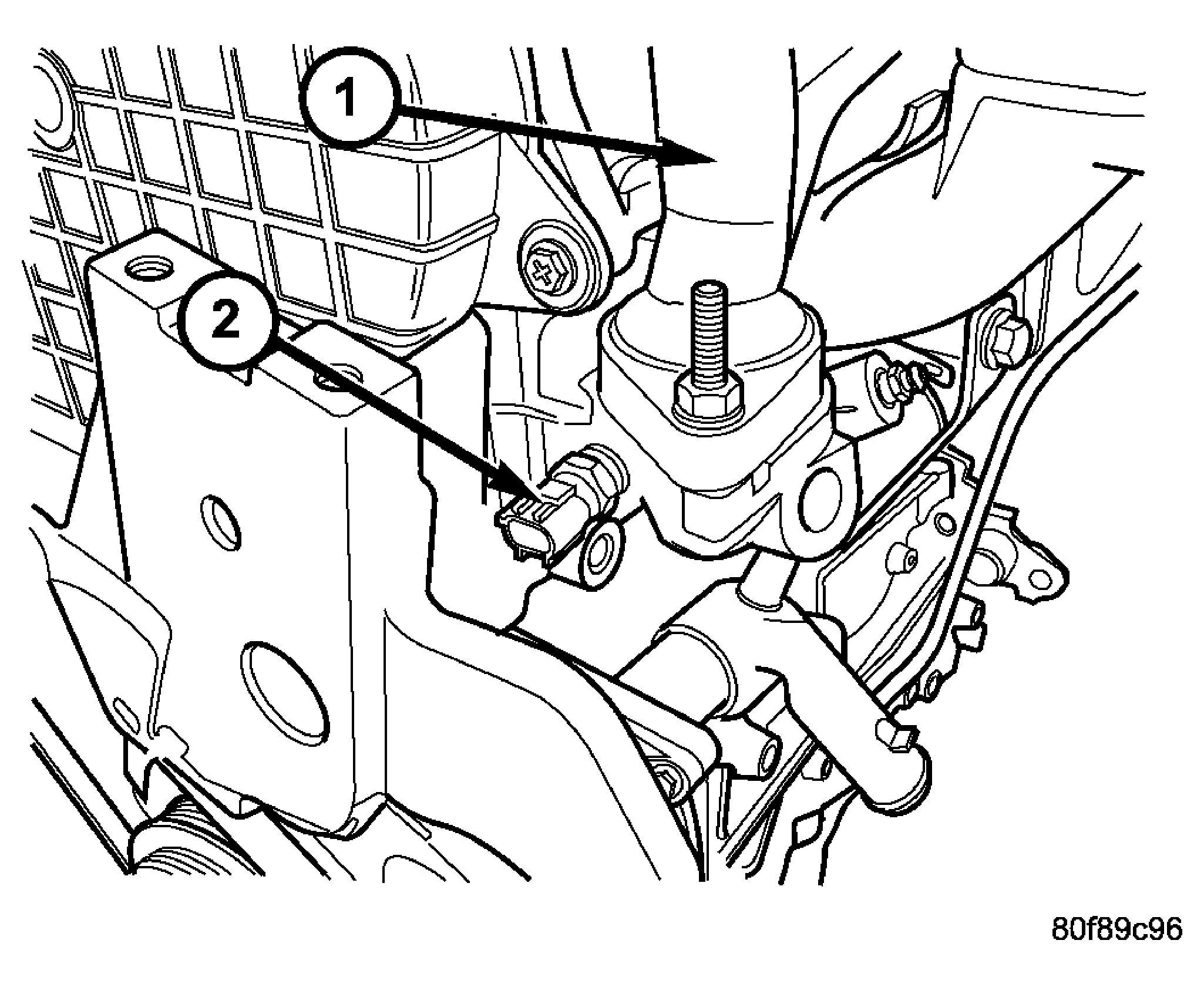

Fig 1: Engine Coolant Temperature Sensor - 2.4L Turbo
GC0021847Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT OUTLET CONNECTOR
2 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Disconnect negative battery cable.
  2. Partially drain cooling system below level of engine coolant temperature sensor (2).
  3. Remove upper torque strut, (Refer to ENGINE/ENGINE MOUNTING/TORQUE STRUT - REMOVAL) .
  4. Disconnect engine coolant temperature sensor electrical connector.
  5. Remove engine coolant temperature sensor (2). See Figure.
