2.0L/2.4L Engine: Non-Turbo

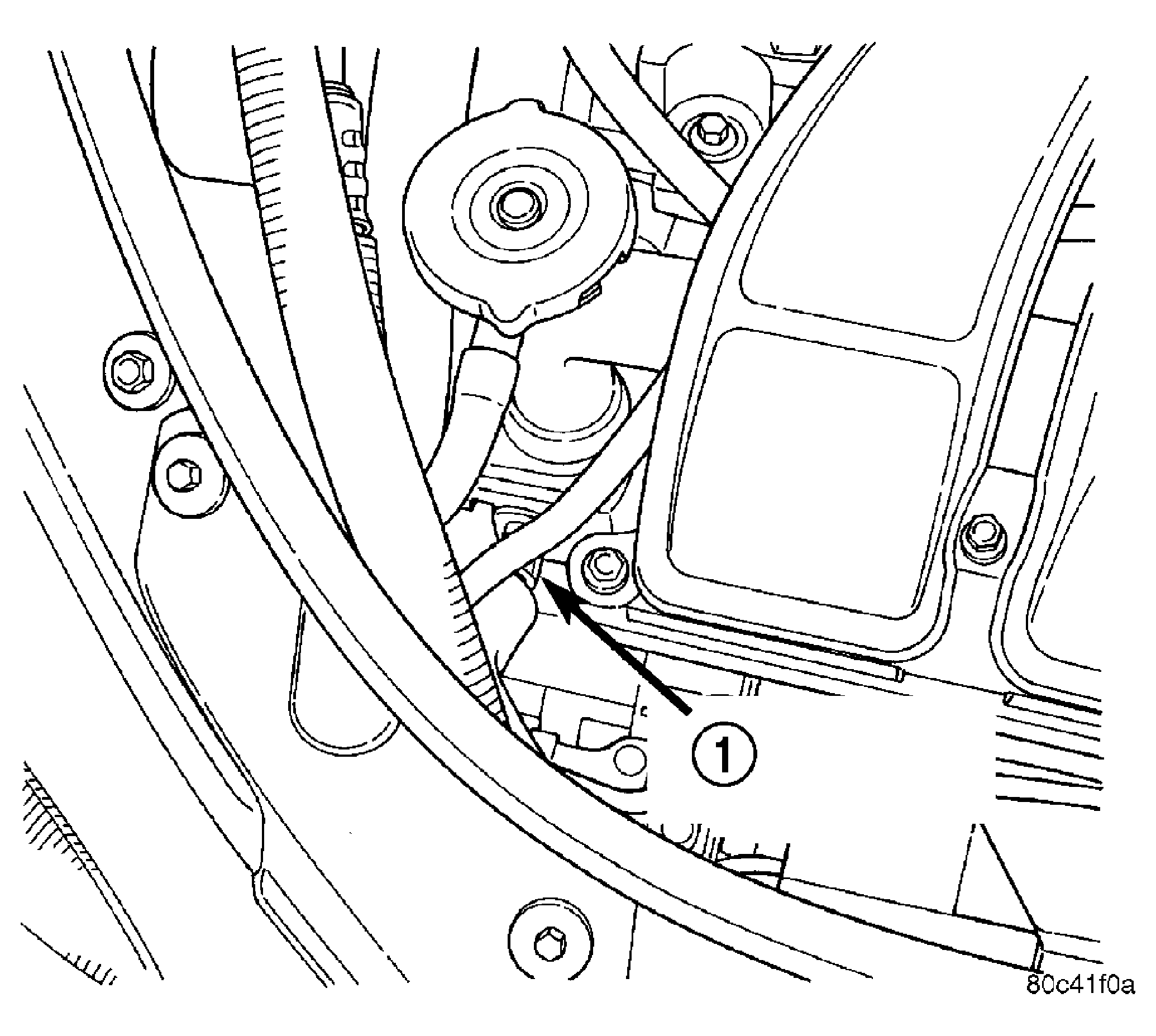

Fig 1: Engine Coolant Temperature Sensor
GC0021846Courtesy of DAIMLERCHRYSLER CORP.
1 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Disconnect negative battery cable.
  2. Partially drain cooling system below level of engine coolant temperature sensor (1).
  3. Disconnect engine coolant temperature sensor electrical connector.
  4. Remove engine coolant temperature sensor (1). See Figure.
