1.6L Engine

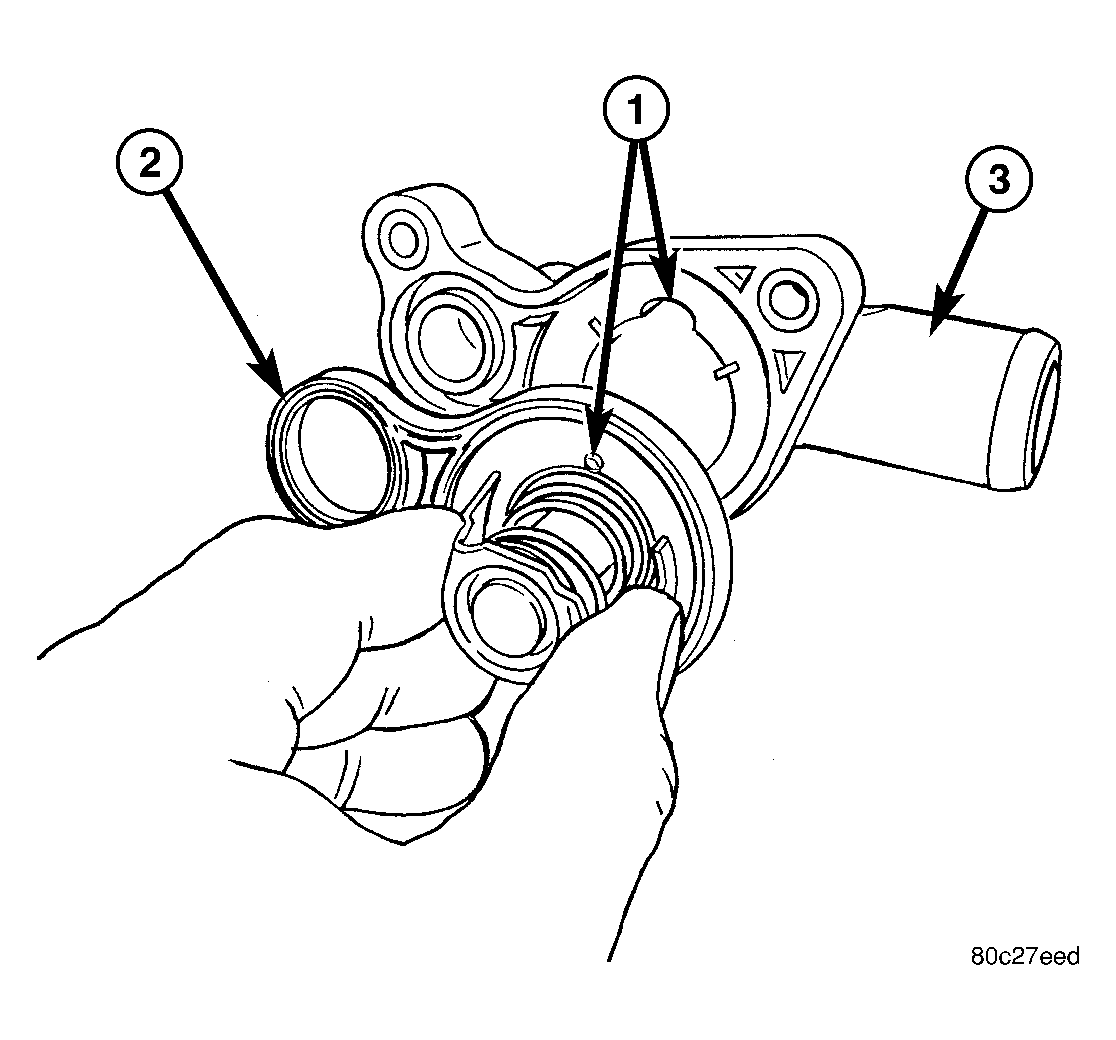

Fig 1: Thermostat & Housing Orientation - 1.6L Engine
GC0021811Courtesy of DAIMLERCHRYSLER CORP.
1 - ALIGN AIR BLEED WITH NOTCH IN THERMOSTAT HOUSING
2 - THERMOSTAT SEAL
3 - THERMOSTAT HOUSING
  1. Clean all sealing surfaces.
  2. Place thermostat and seal (2) into thermostat housing. Align air bleed with notch in thermostat housing. See Fig 1.
  3. Install thermostat housing and fasteners. Torque fasteners to 7 N.m (65 in. lbs.).
  4. Connect upper radiator hose and heater hose to thermostat housing.
  5. Install fasteners securing heater return tube to engine block and thermostat housing.
  6. Install battery.
  7. Connect positive battery cable.
  8. Connect negative battery cable.
  9. Fill cooling system, (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
