2.2L Diesel Engine

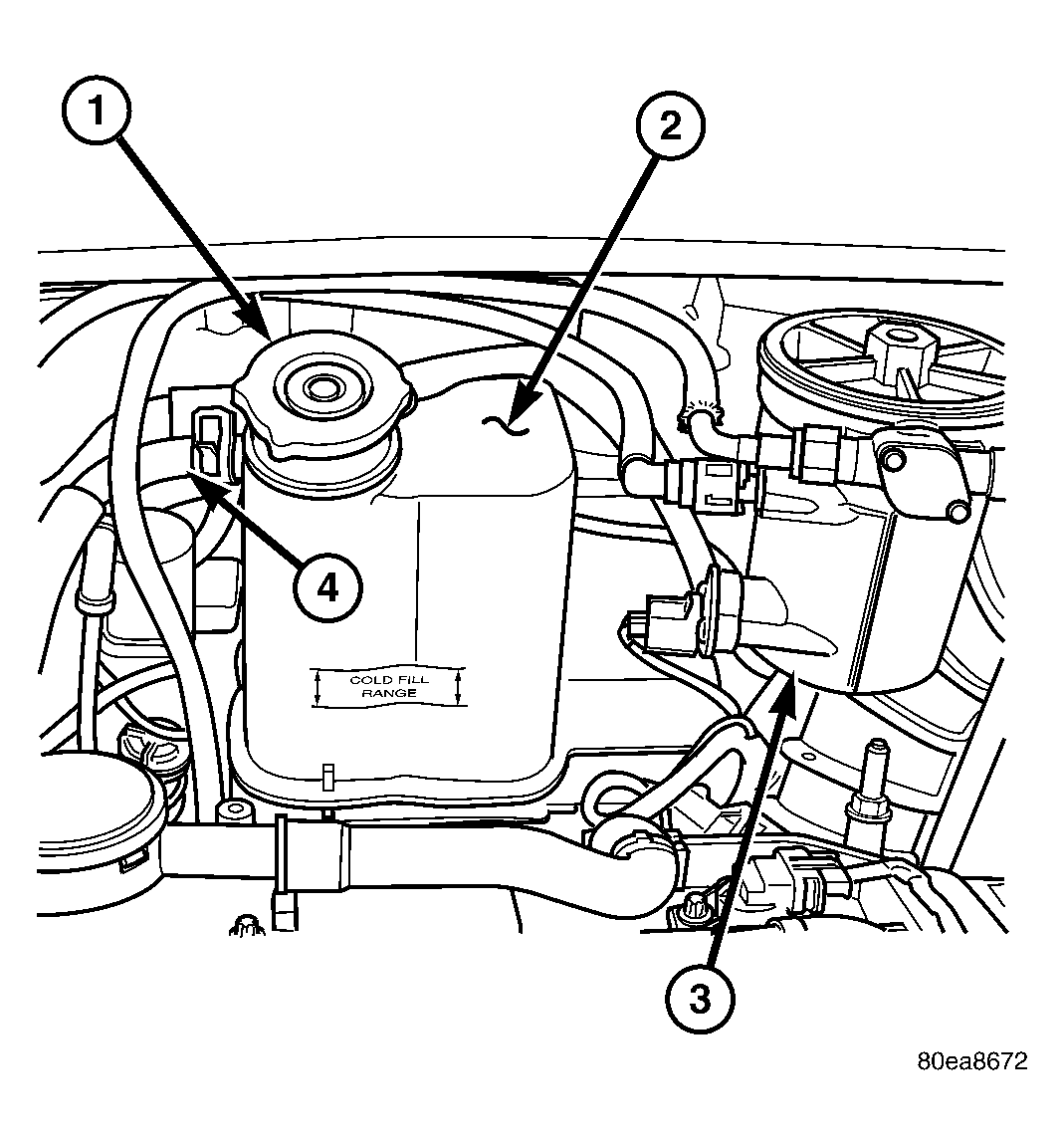

Fig 1: Coolant Recovery Pressure Container

Courtesy of DAIMLERCHRYSLER CORP.

1 - COOLANT PRESSURE CAP

2 - COOLANT RECOVERY PRESSURE CONTAINER

3 - FUEL FILTER ASSEMBLY

4 - COOLANT BYPASS HOSE

The coolant recovery pressure container (2) is mounted in the rear of the engine compartment on the dash panel. See Fig 1.
