Non - Turbo

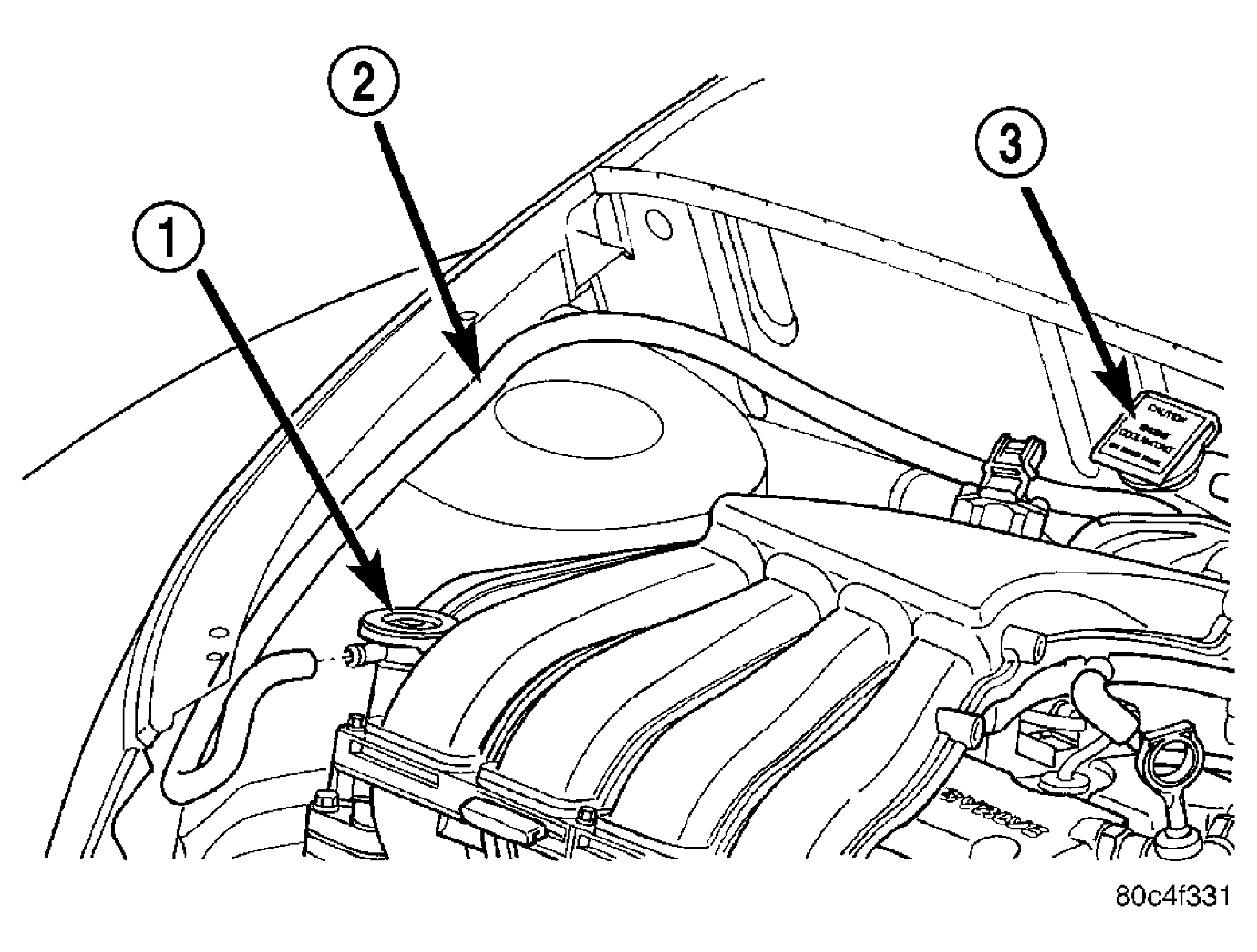

Fig 1: Overflow Hose Routing
GC0021841Courtesy of DAIMLERCHRYSLER CORP.
1 - PRESSURE CAP
2 - OVERFLOW HOSE
3 - COOLANT RECOVERY CONTAINER
  1. Disconnect overflow hose (2) from coolant outlet connector. See Fig 1.
  2. Remove vent hose clip from stud on dash panel.
  3. Disconnect the MAP sensor connector.

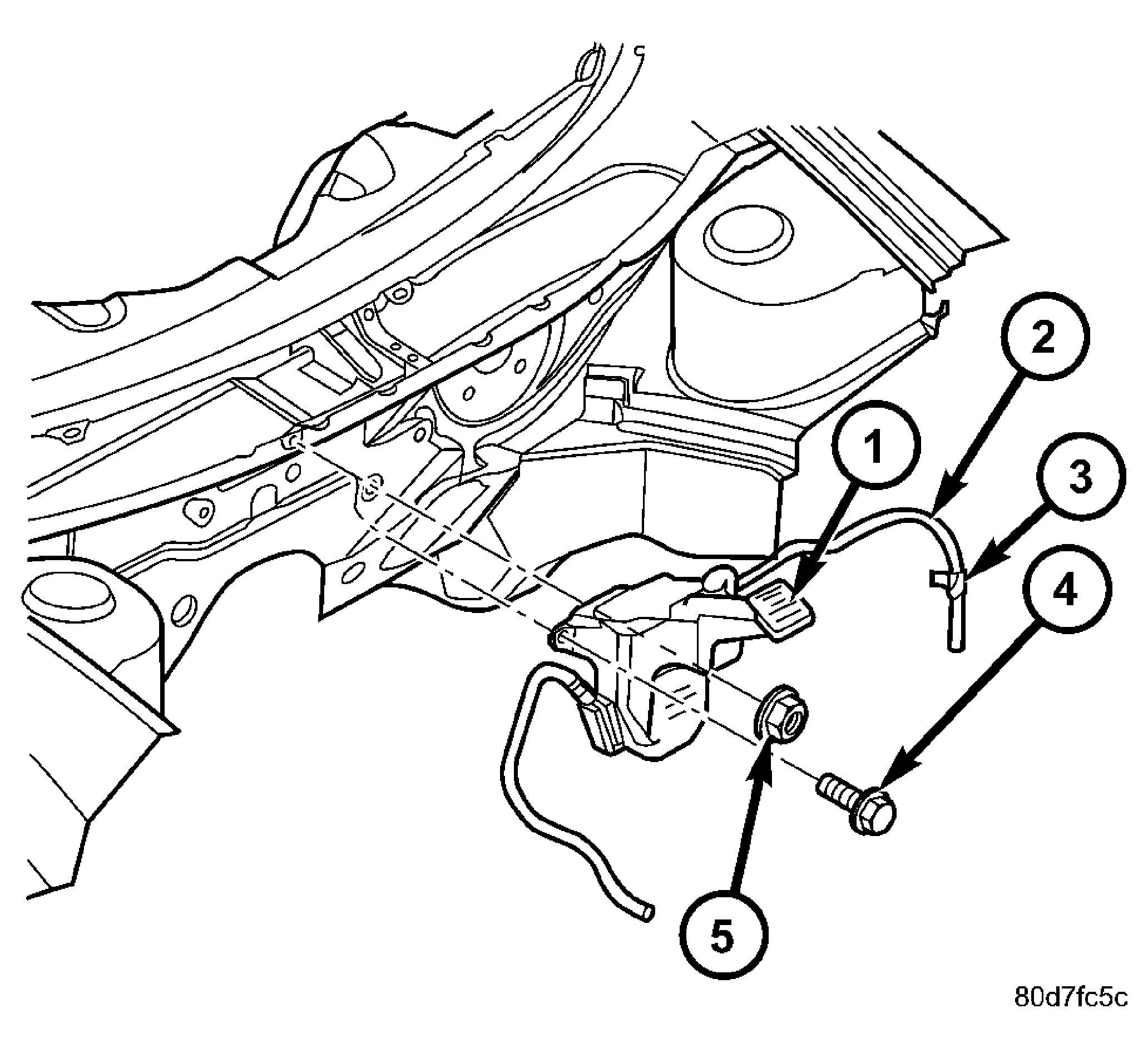

    Fig 2: Coolant Recovery Container
    GC0021805Courtesy of DAIMLERCHRYSLER CORP.
    1 - COOLANT RECOVERY CONTAINER
    2 - VENT HOSE
    3 - CLIP
    4 - SCREW
    5 - NUT
  4. Remove fasteners securing power steering fluid reservoir bracket to engine. Reposition reservoir.
  5. Remove coolant recovery container (1) attaching fasteners. See Fig 2.
  6. Remove coolant recovery container.
