2.0L/2.4L Engine

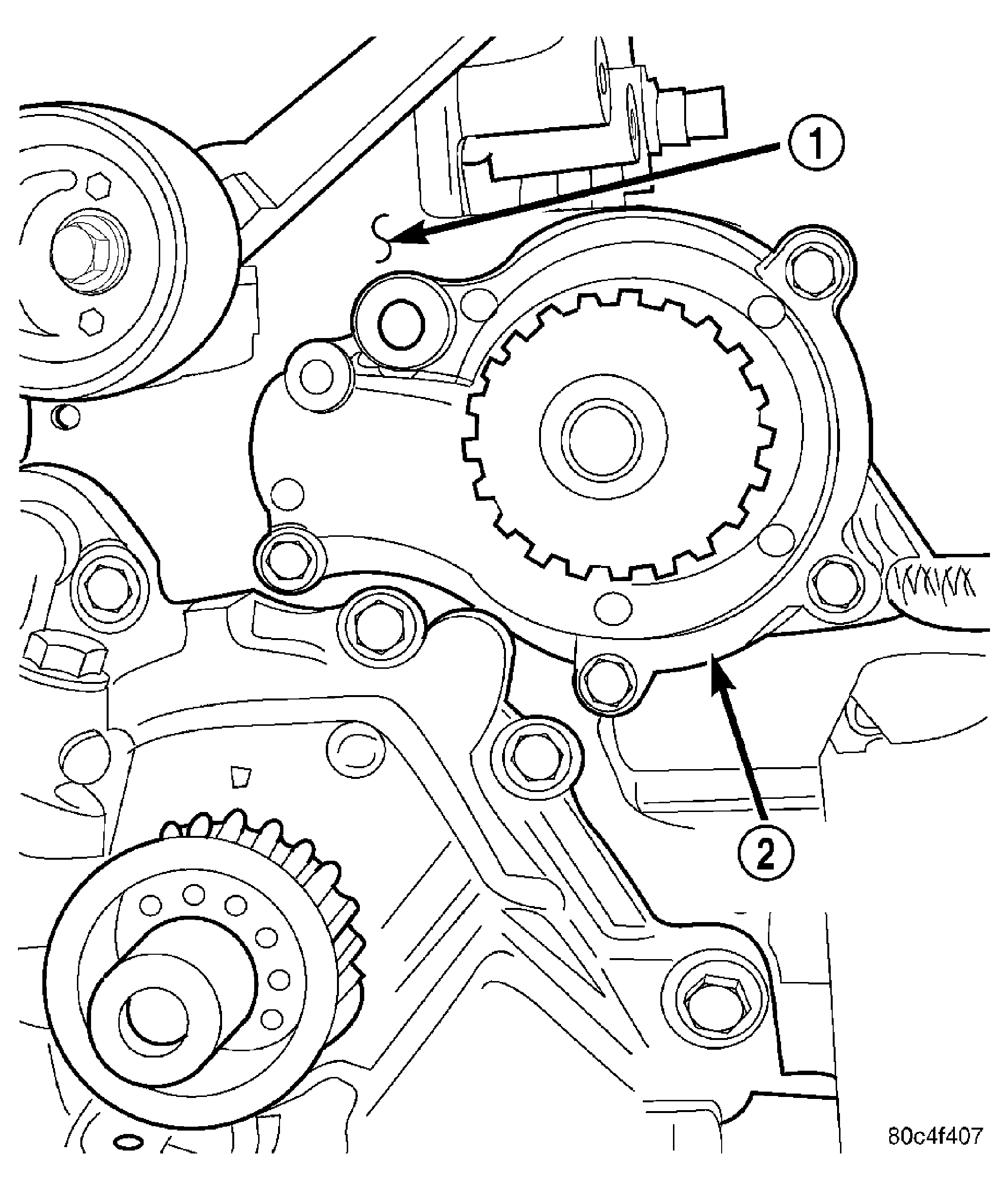

Fig 1: Water Pump - 2.0L/2.4L

GC0021856

Courtesy of DAIMLERCHRYSLER CORP.

1 - CYLINDER BLOCK

2 - WATER PUMP

Drain cooling system, (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
Remove timing belt:
- (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .
.
Remove camshaft sprockets and rear timing belt cover:
- (Refer to ENGINE/VALVE TIMING/TIMING BELT AND SPROCKETS - REMOVAL) .
Remove screws attaching water pump to engine. Remove pump (2). See Fig 1.
