Filling Cooling System - 1.6L Engine

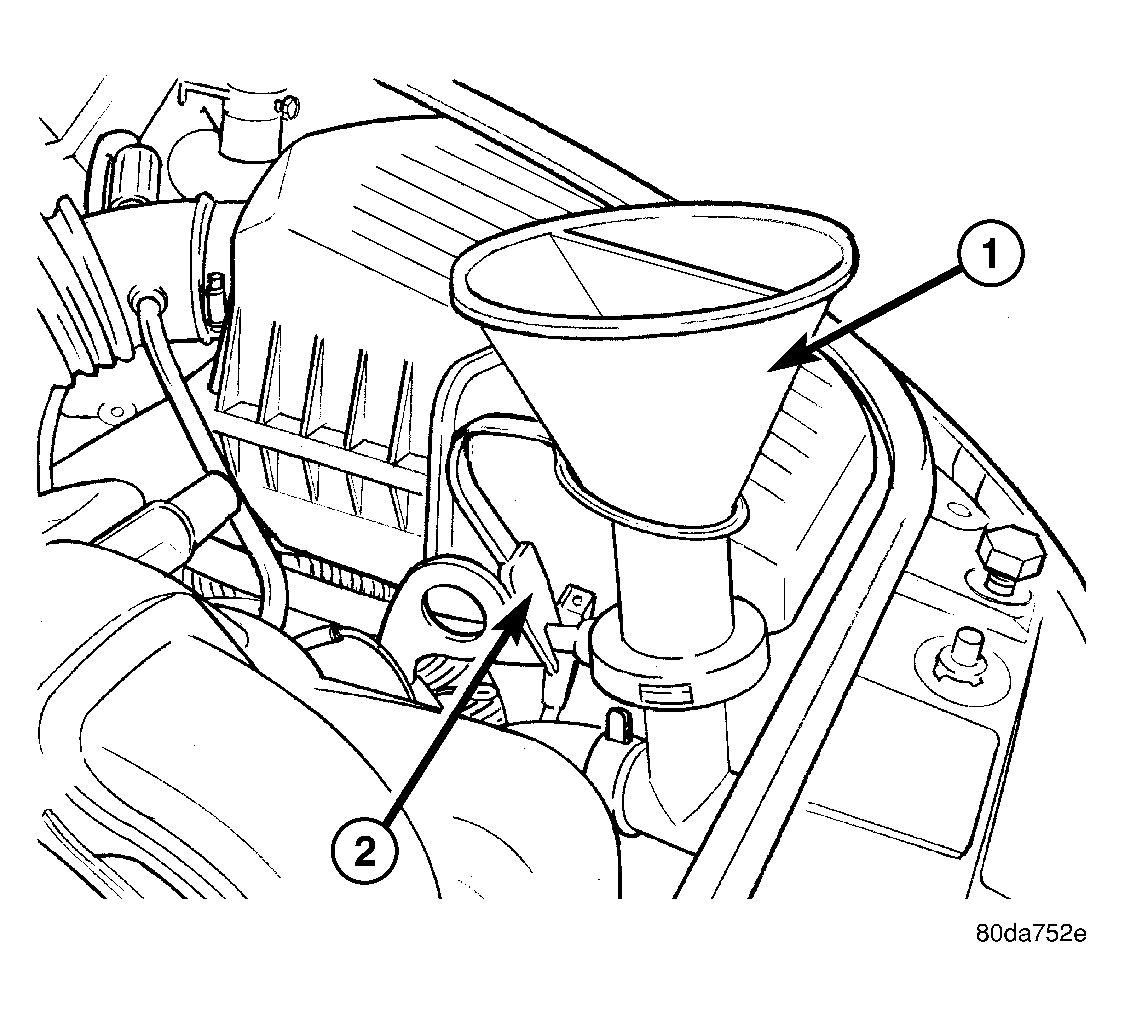

| 1 - SPECIAL TOOL 8195 FILLING AID FUNNEL |
| 2 - PINCH OVERFLOW HOSE |
WARNING:
Make sure engine cooling system is cool before removing pressure cap or any hose. The cooling system is pressurized when hot. Severe personal injury may result from escaping hot coolant.
CAUTION:
Do not use well water, or suspect water supply in cooling system. A 50/50 mixture of the recommended ethylene glycol and distilled water is recommended. For recommended coolant usage,
(Refer to LUBRICATION & MAINTENANCE/MAINTENANCE SCHEDULES - FLUID TYPES)
.
NOTE:
For cooling system capacity, (Refer to LUBRICATION & MAINTENANCE/SPECIFICATIONS - FLUID CAPACITIES)
.
- Close radiator draincock. Hand tighten only.
- Remove cooling system pressure cap. Install Special Tool 8195 Filling Aid Funnel (1). See Fig 1.
- Use the supplied clip to pinch overflow hose (2) that connects between the radiator and the coolant recovery container.

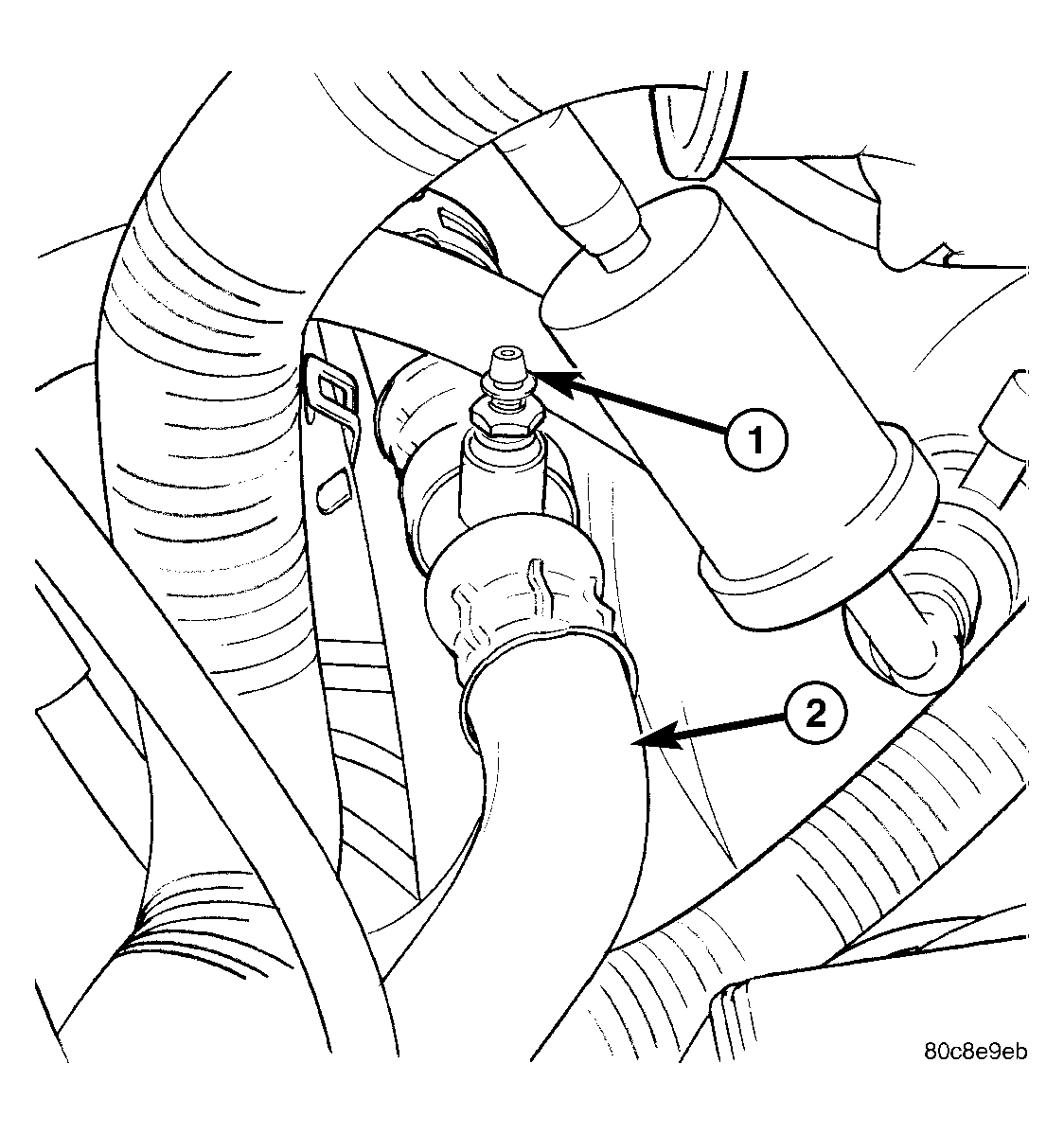

1 - COOLING SYSTEM BLEED SCREW 2 - HEATER HOSE - Place a piece of clear 6.35 mm (0.250 in.) I.D. tubing 305 mm (12 in.) long over the cooling system bleed screw (1) nipple. The cooling system bleed screw is located in the heater hose (2) near the coolant recovery container. See Fig 2.
- Open, but do not remove, the cooling system bleed screw (1).NOTE: While filling the cooling system, pour coolant into the larger section of the Filling Aid Funnel 8195.
- Slowly fill the cooling system until a continuous stream of coolant begins to flow out of the hose.
- Close the cooling system bleed screw (1) and remove the tubing.
1 - SPECIAL TOOL 8195 FILLING AID FUNNEL 2 - PINCH OVERFLOW HOSE - Remove clip from overflow hose (2) and allow Filling Aid Funnel 8195 (1) to drain through overflow hose into coolant bottle. Remove Filling Aid Funnel 8195 (1).
- Install cooling system pressure cap.
- Slowly fill the coolant recovery container to the FULL HOT mark with the recommended coolant. It may be necessary to add coolant to the recovery container after one warm-up/cool down cycle in order to maintain the coolant level between the FULL HOT and ADD marks. This is due to the removal of trapped air from the system.
