Engine Cooling System & Automatic Transmission Cooling System: Cooling: Operation: 1.6L

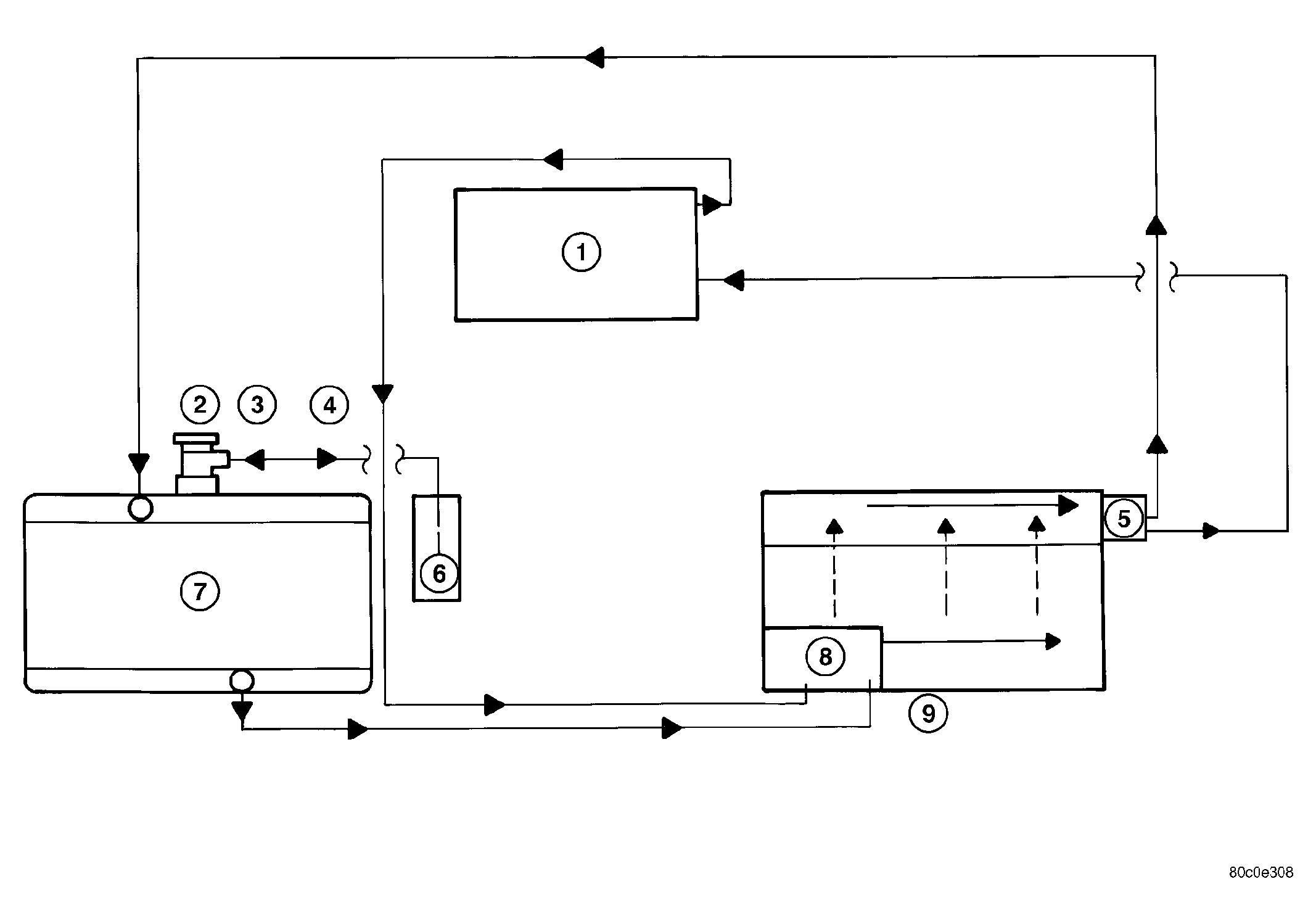

Fig 1: Cooling System Operation

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEATER CORE

2 - RADIATOR PRESSURE CAP

3 - COOL DOWN

4 - HEAT UP

5 - THERMOSTAT

6 - COOLANT RECOVERY CONTAINER

7 - RADIATOR

8 - WATER PUMP

9 - ENGINE

The primary purpose of a cooling system is to maintain engine temperature in a range that will provide satisfactory engine performance and emission levels under all expected driving conditions. It also provides hot water (coolant) for heater performance and cooling for automatic transmission oil. It does this by transferring heat from engine metal to coolant, moving this heated coolant to the radiator (7), and then transferring this heat to the ambient air.
